Product details
Since its founding in 1977 by Bill Wood, Wilwood Engineering has designed and manufactured disc brake systems in Camarillo, California. Motorsport, street and specialized installations use its calipers, rotors, master cylinders, valves, fittings and lines, selected for the requirements of the complete brake system. BP-45 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads.
Technical Details
- Manufacturer part number: 150-45-7812K
- Pad/shoe profile: 7812
- Package quantity: 4 individual pads
- Compound: BP-45

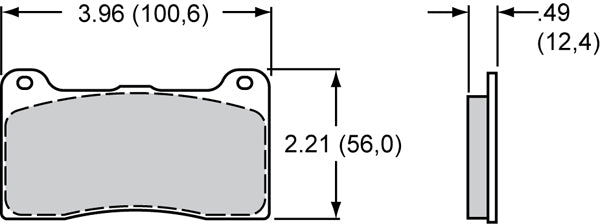

- Catalog thickness: .49 inch
- Catalog pad area: 6.36 square inches
- Catalog pad volume: 2.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6

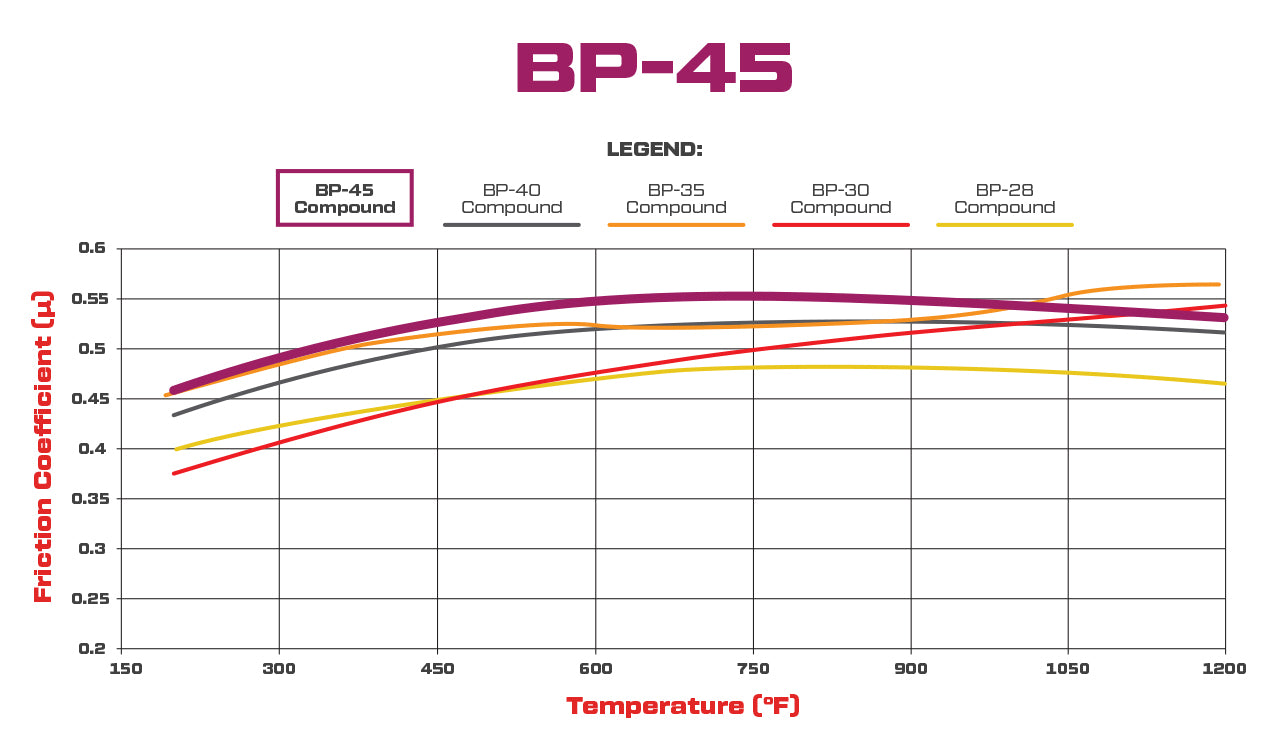

For the listed bridge-bolt Dynalite, Dynapro and UTV4/6 calipers, these BP-45 pads use the .49-inch configuration. Good low-temperature friction is followed by a smooth rise as an iron or steel rotor warms. The manufacturer classifies this as a racing formulation; the UTV or caliper family name does not waive the required brake-system checks.
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
