Wilwood Narrow Superlite/FNSL Pads, BP-45 Race, Four Pieces

Wilwood Engineering was founded by Bill Wood in 1977 in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized applications. BP-45 brake pads in the .65-inch Narrow Superlite/FNSL configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.

Technical Details

• Manufacturer part number: 150-45-7416K

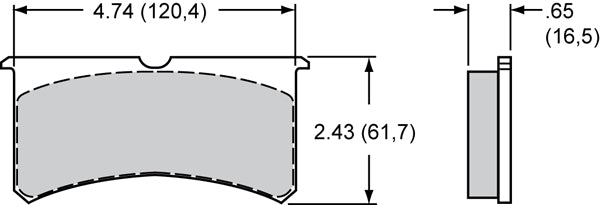

• Pad/shoe profile: 7416
• Package quantity: 4 individual pads
• Compound: BP-45
• Catalog thickness: .65 inch
• Catalog pad area: 8.2 square inches
• Catalog pad volume: 3.8 cubic inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Listed Wilwood calipers: Billet Narrow Superlite 4R Radial Mount; Billet Narrow Superlite 6 Lug Mount; Billet Narrow Superlite 6R Radial Mount; Forged Superlite; FNSL4R-Dust Seal; FNSL4R; FNSL6R-Dust Seal; FNSL6R; SLC56

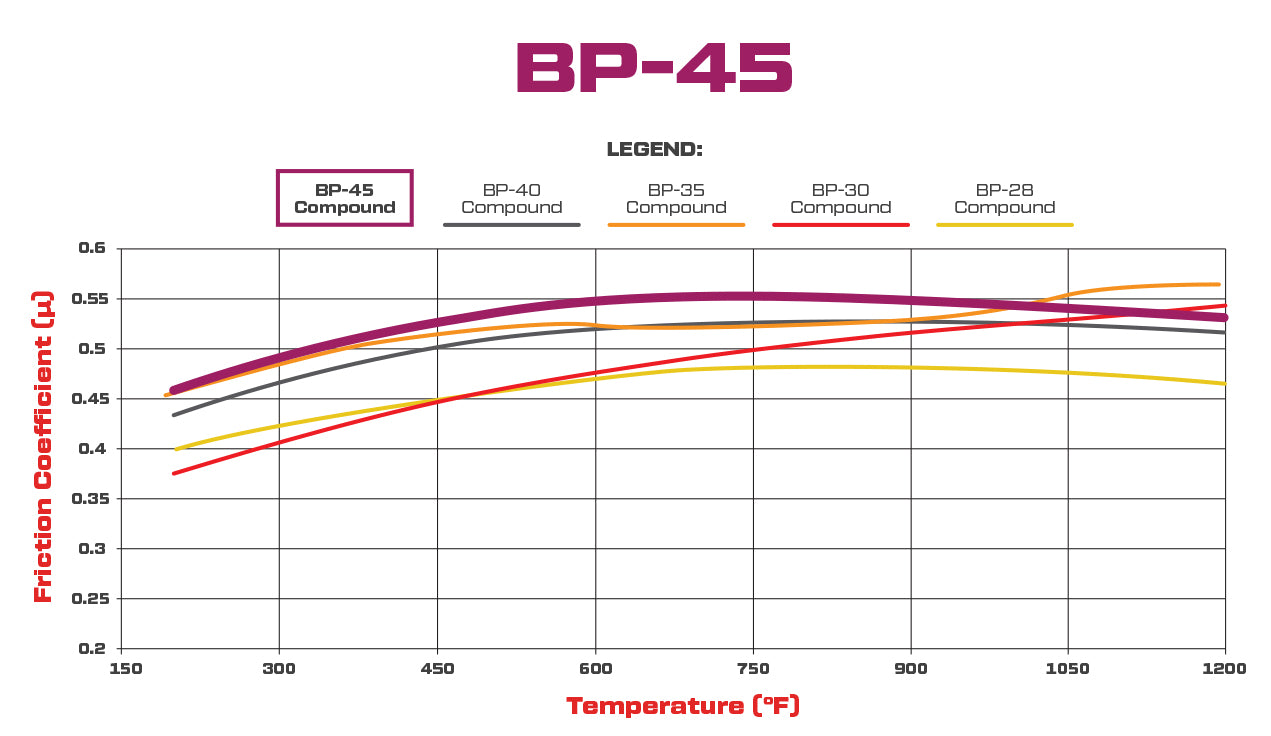

This four-pad BP-45 package uses the narrow .65-inch Superlite/FNSL outline. Wilwood describes a high-friction racing material that responds when cold and rises smoothly in friction as rotor heat builds. Iron or steel rotors are specified. Verify the narrow caliper cavity so a wide .80-inch Superlite pad is not substituted.

Fitment & Compatibility

Narrow Superlite and the listed FNSL/SLC56 configurations use this 0.65-inch selection. It should not be replaced with the 0.80-inch wide-Superlite version solely on appearance.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
