Product details
The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-45 brake pads in the .49-inch Dynalite Single/Dynapro Single configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.

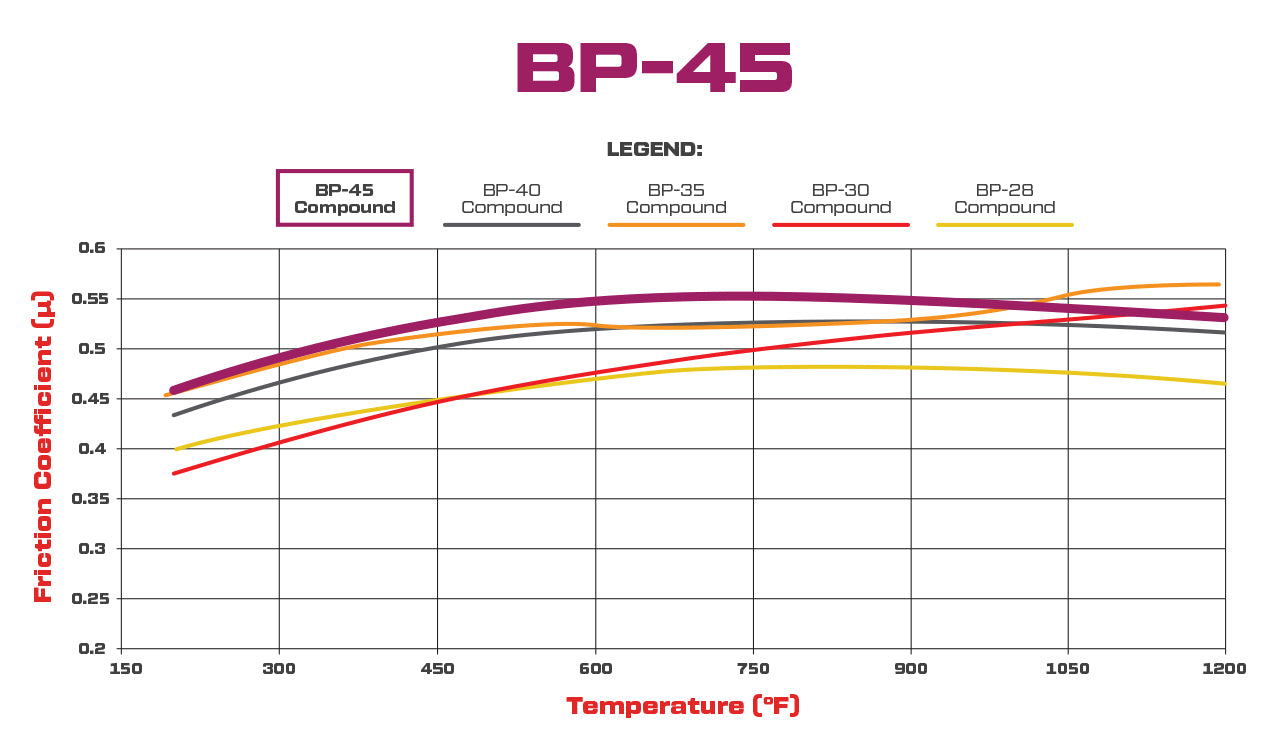

BP-45 combines high friction with useful cold response and a smooth increase in friction as rotor temperature rises. Wilwood lists it for racing applications with iron or steel rotors. Choose it around the car’s braking load and balance; a matching production-car pad shape does not make this a general street replacement.
Technical Details
- Manufacturer part number: 150-45-6812K
- Pad/shoe profile: 6812
- Listed Wilwood calipers: Dynalite Single; Dynalite Single III; Dynalite Single Floater; Dynapro Single
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Catalog pad volume: 1.1 cubic inches
- Catalog pad area: 3 square inches
- Catalog thickness: .49 inch
- Compound: BP-45
- Package quantity: 4 individual pads
Fitment & Compatibility
Listed calipers include Dynalite Single, Single III, Single Floater and Dynapro Single. Compare the distinctive three-hole outline with the installed pad; a full-size Dynalite pad is a different shape.

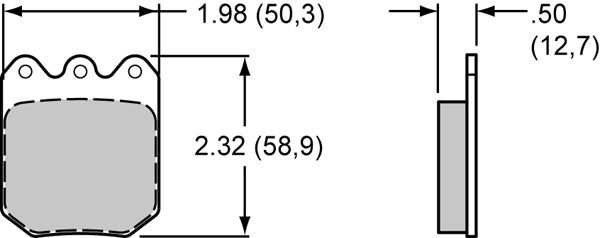

The general outline drawing marks .50 inch, while the exact part specification lists .49 inch. Confirm the actual caliper clearance rather than treating the illustration as a precision tolerance drawing.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
