Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-45 brake pads in the .80-inch AERO4/AERO6 configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.
Technical Details
- Manufacturer part number: 150-45-6620K

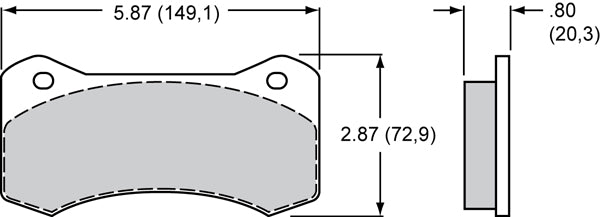

- Pad/shoe profile: 6620
- Catalog pad area: 11.1 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .80 inch
- Catalog pad volume: 6.6 cubic inches
- Listed Wilwood calipers: Aero4; Aero6
- Compound: BP-45

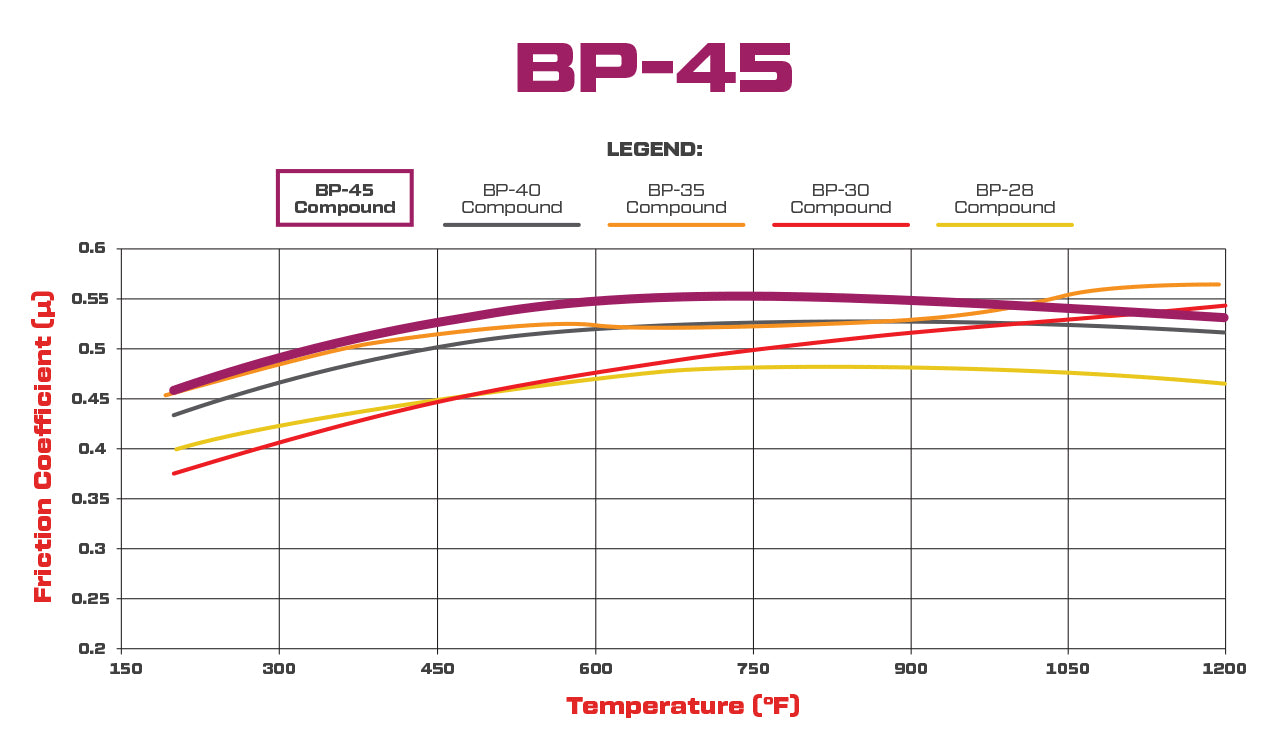

BP-45 combines high friction with useful cold response and a smooth increase in friction as rotor temperature rises. Wilwood lists it for racing applications with iron or steel rotors. Choose it around the car’s braking load and balance; a matching production-car pad shape does not make this a general street replacement.
Fitment & Compatibility
The current compatibility list identifies AERO4 and AERO6 calipers for this 0.80-inch version. Check rotor width and caliper pad capacity before replacing a thinner AERO pad.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
