Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. The PS1 replacement supplies 4 brake pads. Select individual components to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-4091K
- Pad/shoe profile: 4108
- Compound: CM - Composite Metallic
- Catalog pad area: 2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .30 inch
- Catalog pad volume: 0.36 cubic inches
- Listed Wilwood calipers: PS1

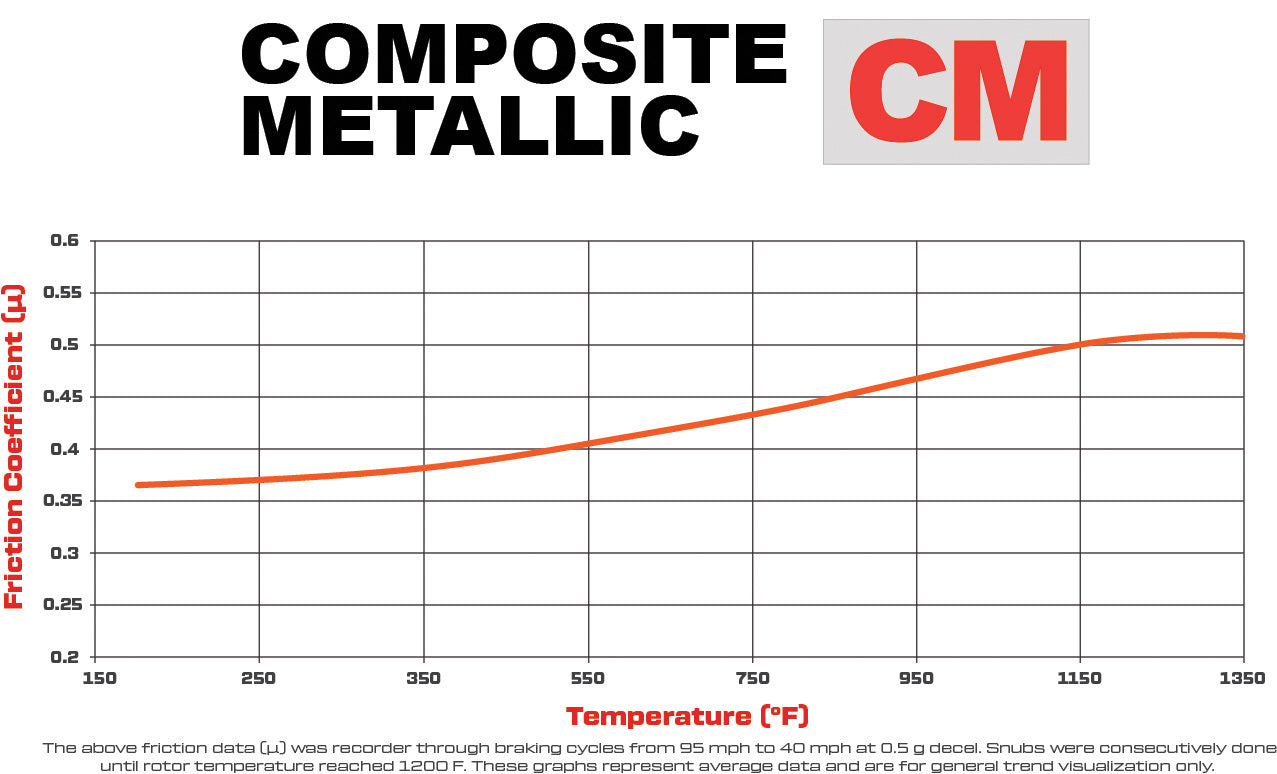

Wilwood’s current pad page identifies CM composite-metallic material, characterized by high friction with a smooth initial response. The compound information emphasizes stainless-steel rotor applications and racing use. Match the actual caliper, rotor and operating duty before treating a powersports or industrial pad as a service-brake replacement.
Fitment & Compatibility

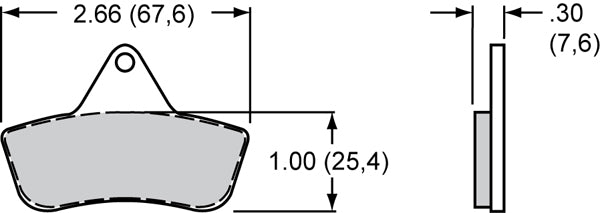

Match the PS1 caliper and the drawing’s retention feature. Wilwood identifies the current material as CM; no front or rear vehicle assignment is established by the caliper-only specification.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
