Wilwood Four-Piece Brake Pad Set for Powerlite/Powerlite 2R, BP-40 Compound

The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-40 brake pads in the .49-inch Powerlite/Powerlite 2R configuration supply four replacement pads. Every component must suit the complete brake system in which it operates.

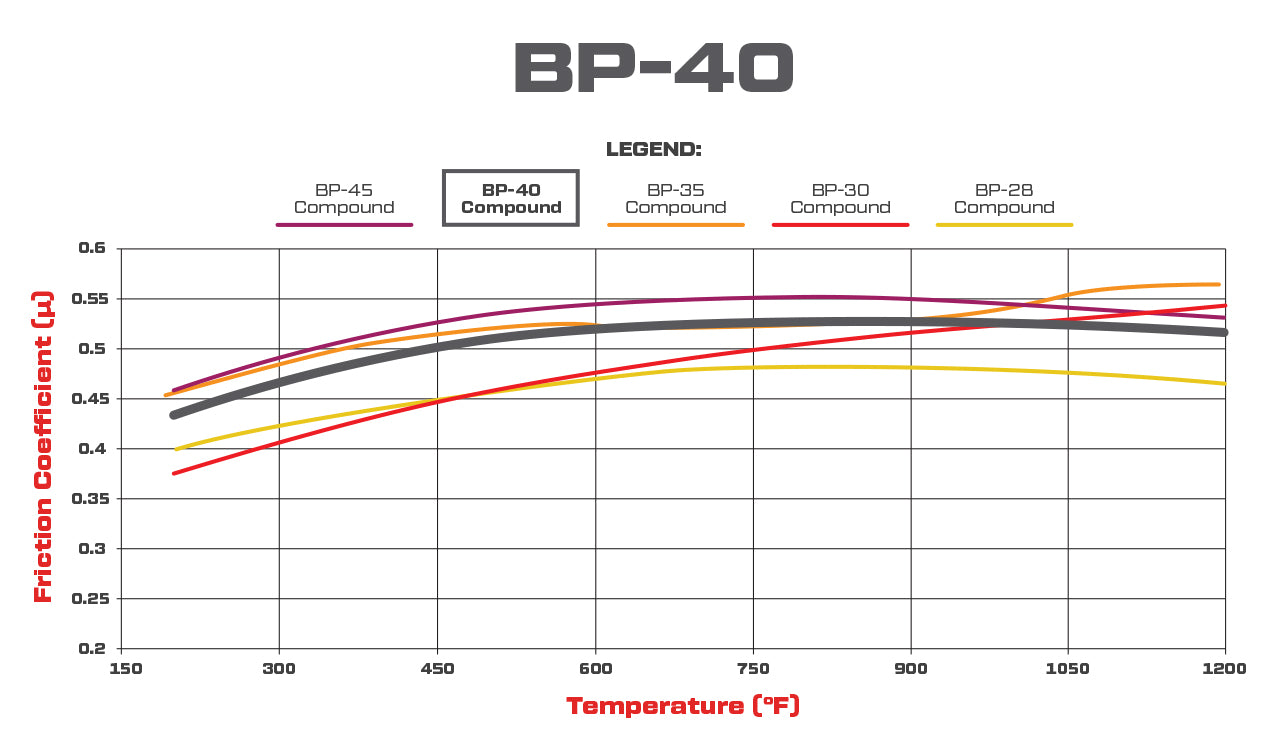

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.

Technical Details

• Manufacturer part number: 150-40-7912K
• Pad/shoe profile: 7912
• Package quantity: 4 individual pads
• Compound: BP-40

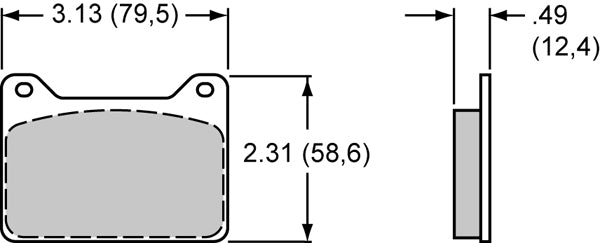

• Catalog thickness: .49 inch
• Catalog pad area: 5 square inches
• Catalog pad volume: 1.8 cubic inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Listed Wilwood calipers: Powerlite 2R Radial Mount; Powerlite

Fitment & Compatibility

This 0.49-inch pad matches Powerlite and Powerlite 2R radial-mount calipers. Verify that model identity and the pad outline; compact calipers from other Wilwood families need different pads.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
