Product details
Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. BP-40 brake pads in the .60-inch Narrow Dynalite/Dynapro Radial configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.

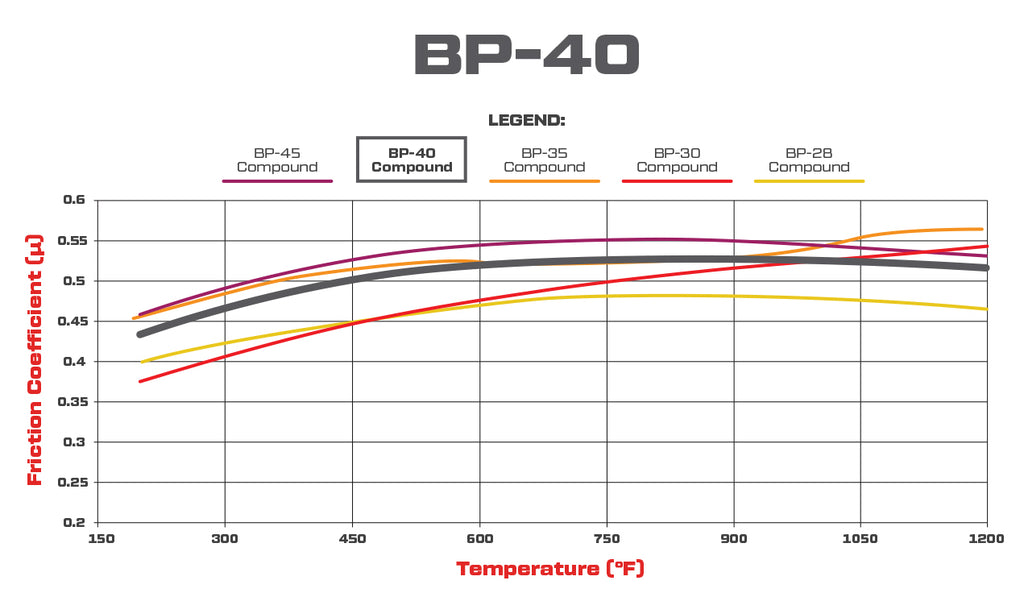

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Technical Details
- Manufacturer part number: 150-40-7816K

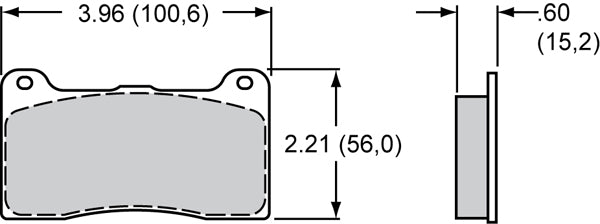

- Pad/shoe profile: 7816
- Listed Wilwood calipers: Narrow Dynalite; Narrow Dynalite Radial Mount; Cast Narrow Dynalite; Dynapro 4 Piston Radial Mount-Dust Seal; Dynapro 4 Piston Radial Mount; Dynapro-ST 4 Piston Radial Mount; Forged Narrow Dynalite; Narrow Dynapro Lug Mount
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Catalog pad volume: 3 cubic inches
- Catalog pad area: 6.36 square inches
- Catalog thickness: .60 inch
- Compound: BP-40
- Package quantity: 4 individual pads
Fitment & Compatibility
The 0.60-inch version is listed for narrow Dynalite and the specified radial-mount or narrow-lug Dynapro calipers. Compare caliper generation, retention and rotor width with the installed assembly.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
