Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-40 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.
Technical Details
- Manufacturer part number: 150-40-7812K

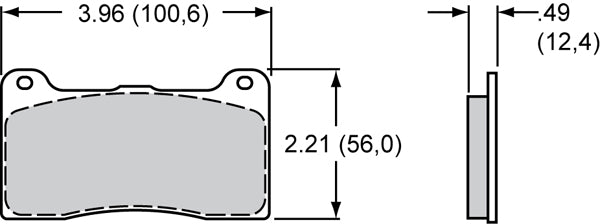

- Pad/shoe profile: 7812
- Catalog thickness: .49 inch
- Catalog pad area: 6.36 square inches
- Catalog pad volume: 2.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6
- Package quantity: 4 individual pads
- Compound: BP-40

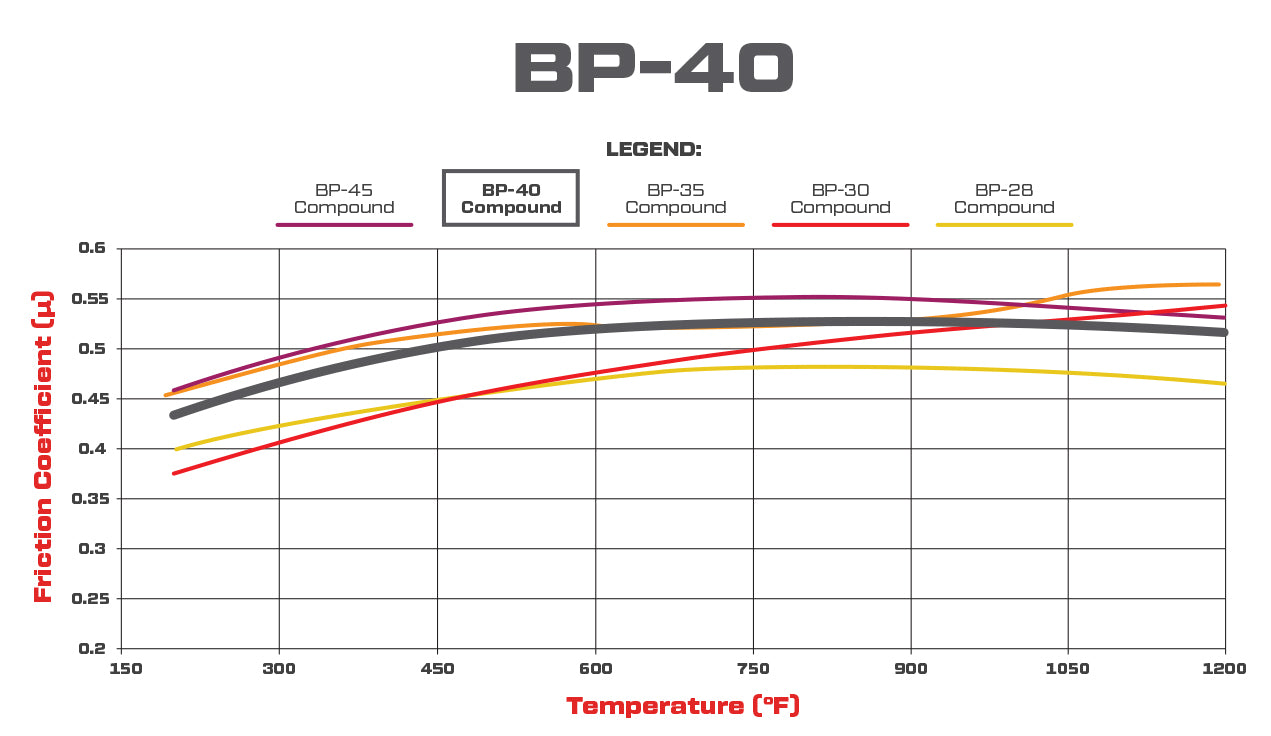

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
