Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-40 brake pads in the .80-inch Grand National/AV6R configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.
Technical Details
- Manufacturer part number: 150-40-7520K
- Pad/shoe profile: 7520
- Package quantity: 4 individual pads
- Compound: BP-40
- Catalog thickness: .80 inch
- Catalog pad area: 11.1 square inches
- Catalog pad volume: 6.9 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: AV6R Radial Mount; Grand National GN4R; Grand National GN6R; Grand National

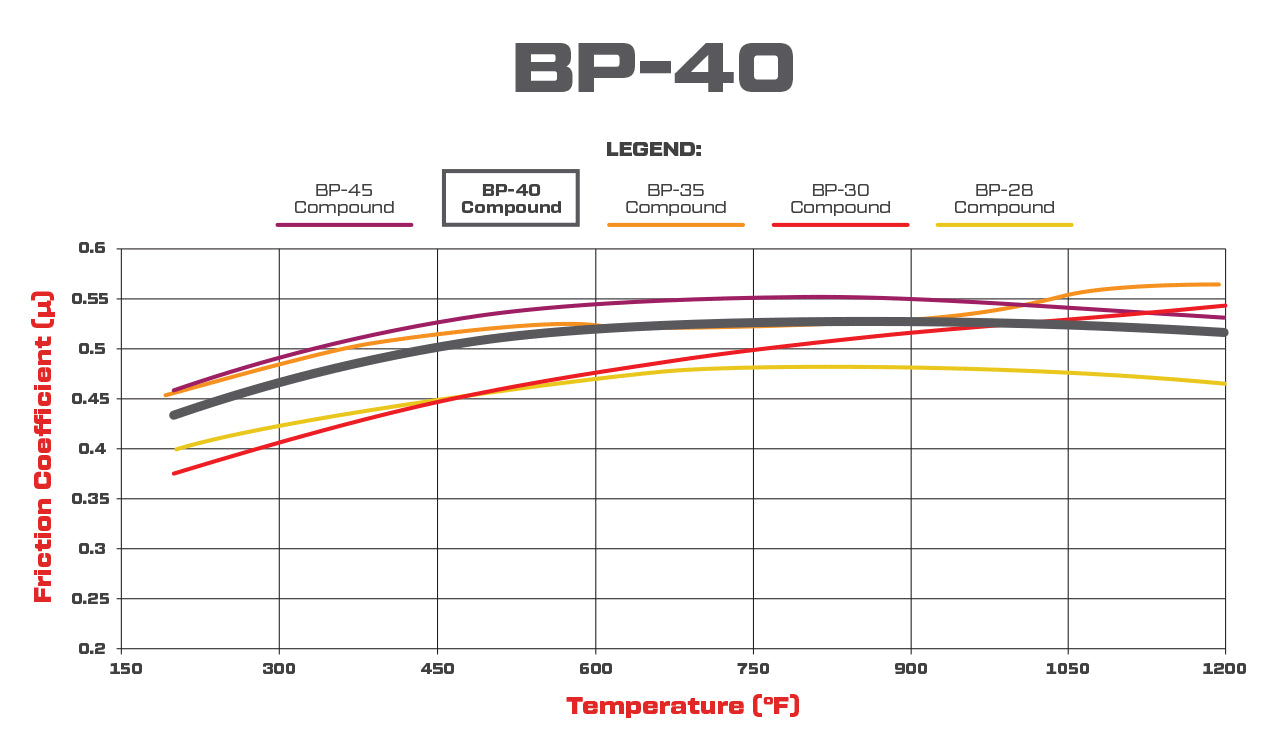

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility

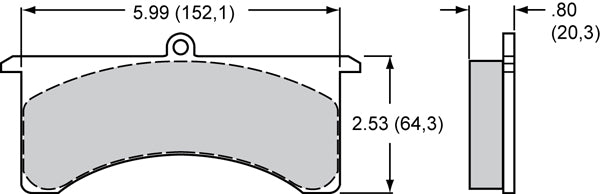

The Grand National GN4R/GN6R and AV6R radial-mount listings use this 0.80-inch configuration. Legacy GN III names can cover more than one pad thickness; compare the drawing and caliper cavity.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
