Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-40 brake pads in the .80-inch Wide Superlite configuration supply four replacement pads. Choose each component to match the complete system’s braking requirements.
Technical Details
- Manufacturer part number: 150-40-7420K

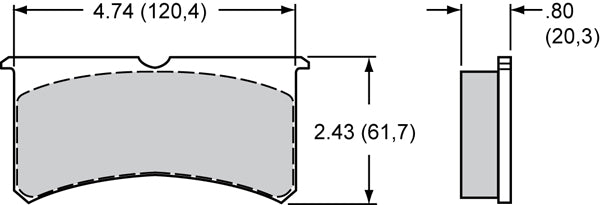

- Pad/shoe profile: 7420
- Compound: BP-40
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .80 inch
- Catalog pad volume: 4.9 cubic inches
- Listed Wilwood calipers: Billet Superlite 4 Lug Mount; Billet Superlite 4R Radial Mount; Billet Superlite 6 Lug Mount; Billet Superlite 6R Radial Mount; Forged Superlite; Forged Superlite 4R Radial Mount; Forged Superlite 6R Radial Mount; Forged Superlite Internal

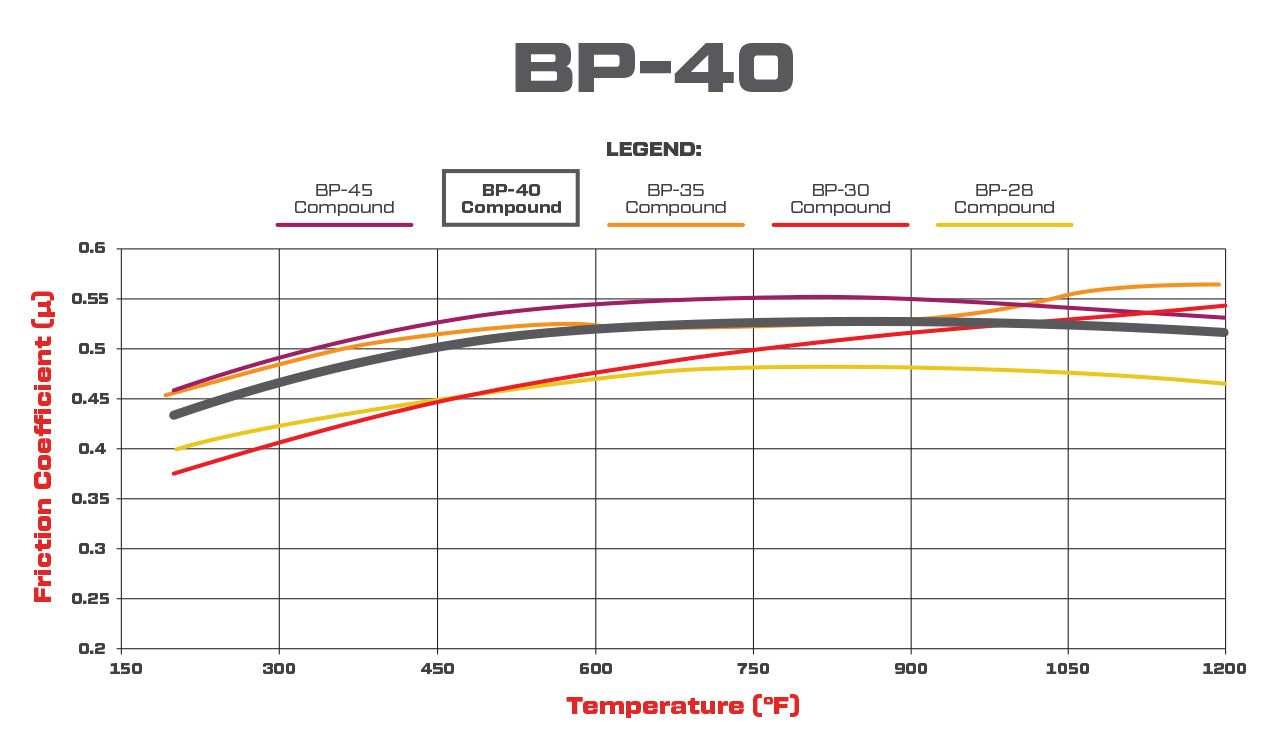

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility
Use this 0.80-inch configuration in the listed billet or forged Superlite calipers. Verify the wide pad cavity and rotor combination; the narrower FNSL selection has a different thickness.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
