Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-40 brake pads in the .49-inch Dynalite Single/Dynapro Single configuration supply four replacement pads. Select individual components to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-40-6812K
- Pad/shoe profile: 6812
- Compound: BP-40
- Catalog pad area: 3 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .49 inch
- Catalog pad volume: 1.1 cubic inches
- Listed Wilwood calipers: Dynalite Single; Dynalite Single III; Dynalite Single Floater; Dynapro Single

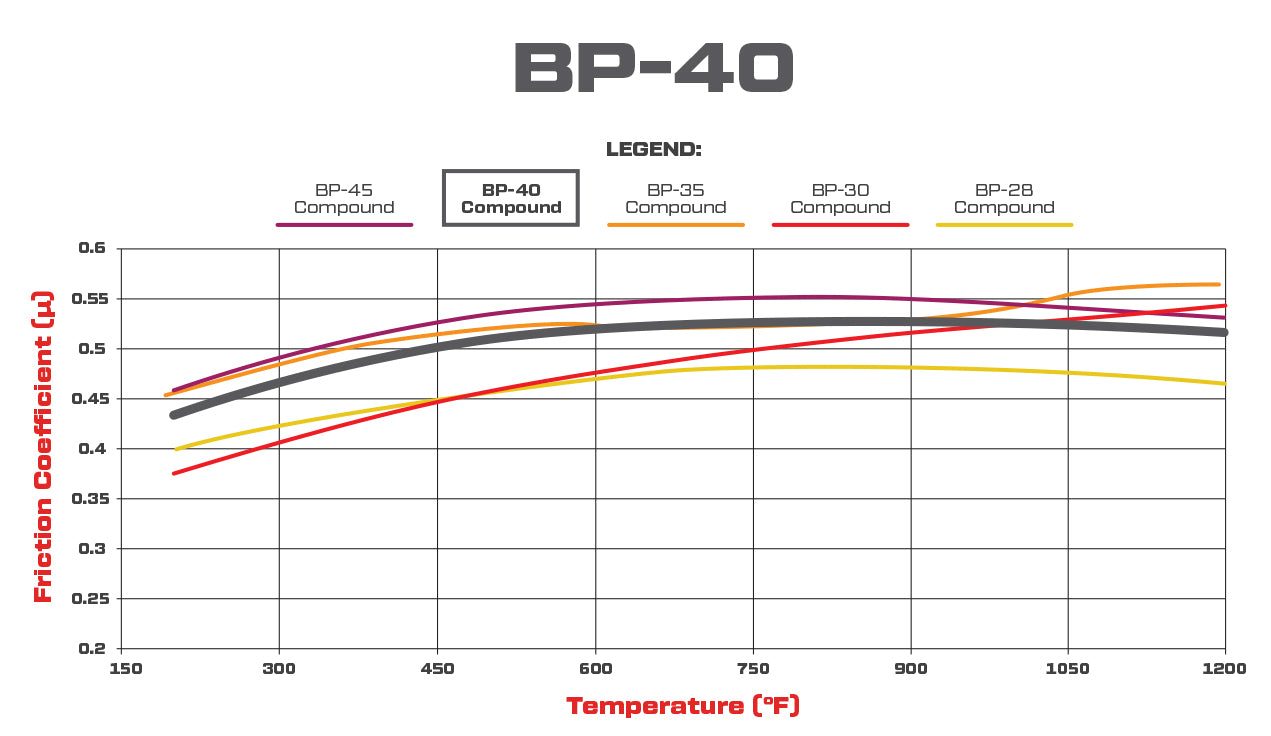

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility
Listed calipers include Dynalite Single, Single III, Single Floater and Dynapro Single. Compare the distinctive three-hole outline with the installed pad; a full-size Dynalite pad is a different shape.

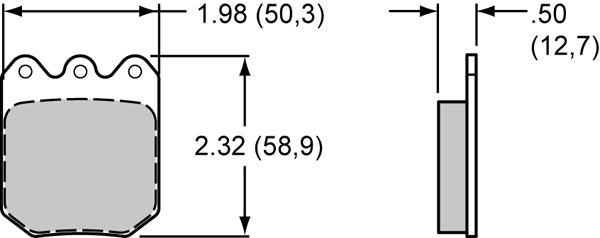

The general outline drawing marks .50 inch, while the exact part specification lists .49 inch. Confirm the actual caliper clearance rather than treating the illustration as a precision tolerance drawing.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
