From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-40 brake pads in the .49-inch Dynapro 6/6A Lug-Mount configuration supply four replacement pads. Each part must be selected to work with the complete brake system and its requirements.
Technical Details
- Manufacturer part number: 150-40-6712K
- Pad/shoe profile: 6712
- Compound: BP-40
- Package quantity: 4 individual pads
- Listed Wilwood calipers: Dynapro 6 Piston Lug Mount; Forged Dynapro 6A Lug Mount
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.

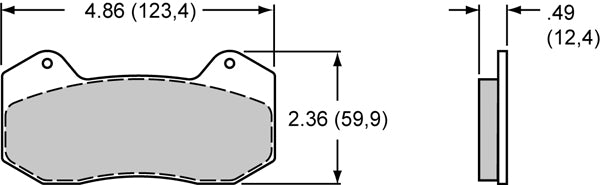

- Catalog pad volume: 2.4 cubic inches
- Catalog pad area: 7.3 square inches
- Catalog thickness: .49 inch

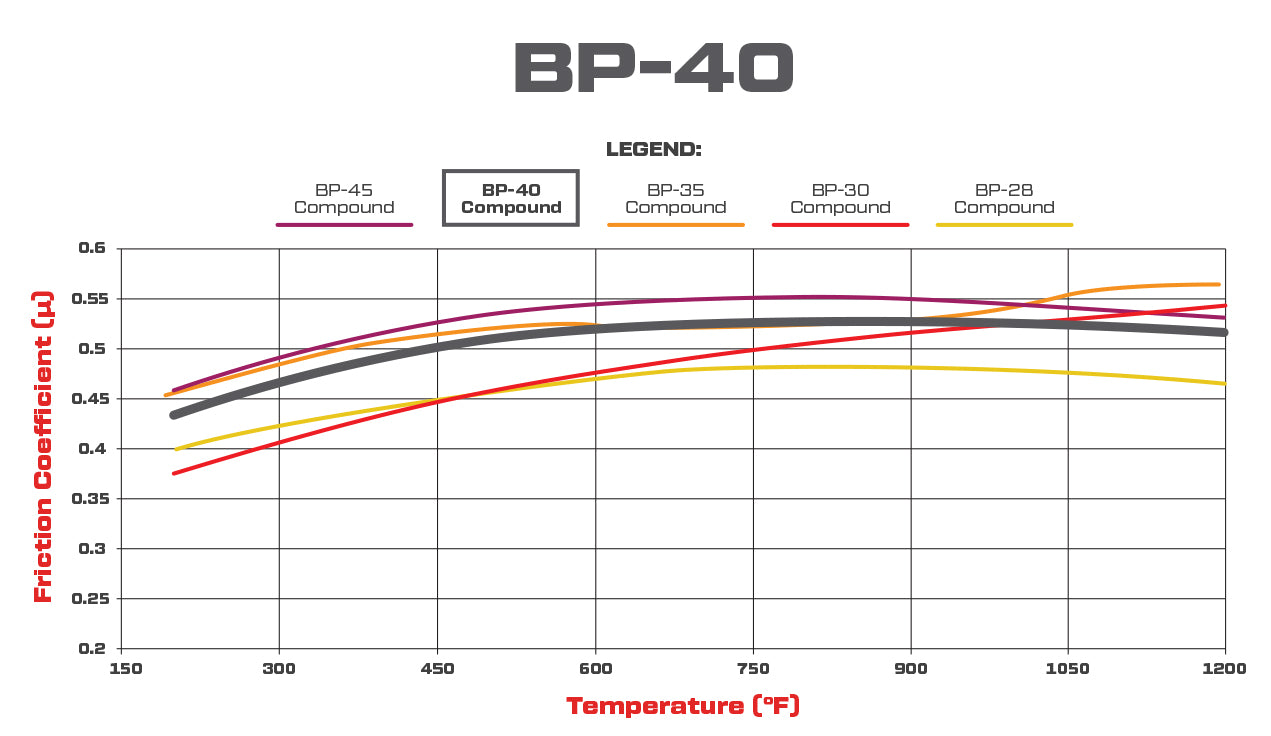

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility
This profile serves the Dynapro six-piston lug-mount and Forged Dynapro 6A lug-mount calipers. It is not a general fit for every Dynapro; retaining geometry and overall thickness must agree.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
