Product details
The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-40 brake pads in the .49-inch Low-Profile Dynapro/DPC56 configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.

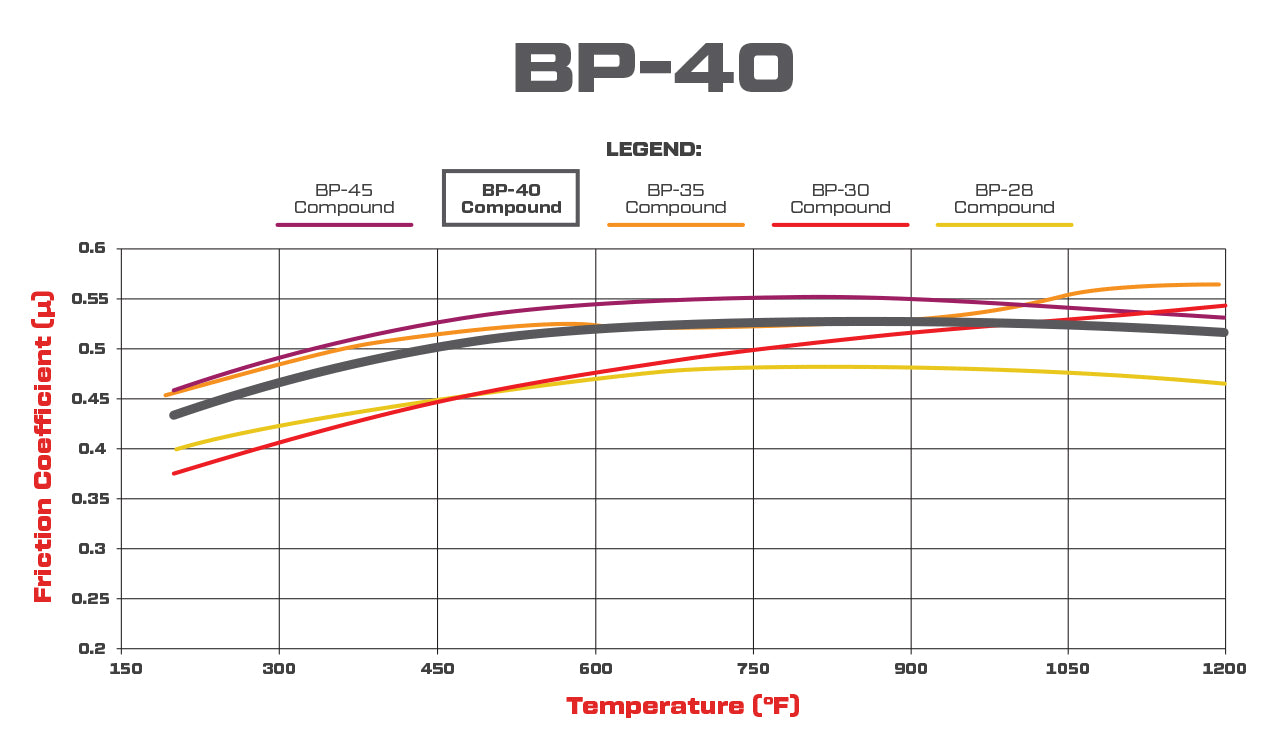

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Technical Details
- Manufacturer part number: 150-40-4812K

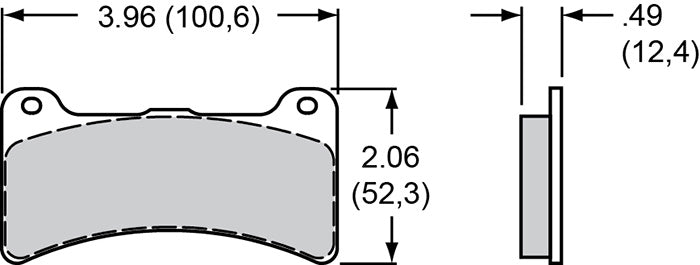

- Pad/shoe profile: 4812
- Compound: BP-40
- Catalog pad area: 5.1 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .49 inch
- Catalog pad volume: 1.71 cubic inches
- Listed Wilwood calipers: DPC56; Dynapro Low-Profile; Forged Dynapro Lug Mount Low-Profile; Forged Dynapro Lug Mount LP-Dust Seal; Narrow Dynapro 4 Piston Radial Mount
Fitment & Compatibility
This low-profile shape is listed for DPC56 and the specified low-profile Dynapro calipers. Compare the low body contour and mounting details with the installed caliper rather than choosing by piston count alone.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
