Wilwood BP-40 High-Friction Race Pads for XRZ Radial Mount Brakes

Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-40 brake pads in the .80-inch XRZ4R configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.

Technical Details

• Manufacturer part number: 150-40-10420K

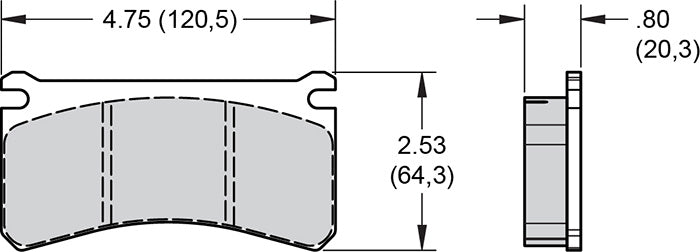

• Pad/shoe profile: 10420
• Compound: BP-40
• Catalog pad area: 8.2 square inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads
• Catalog thickness: .80 inch
• Catalog pad volume: 4.9 cubic inches
• Listed Wilwood calipers: XRZ4R Radial Mount

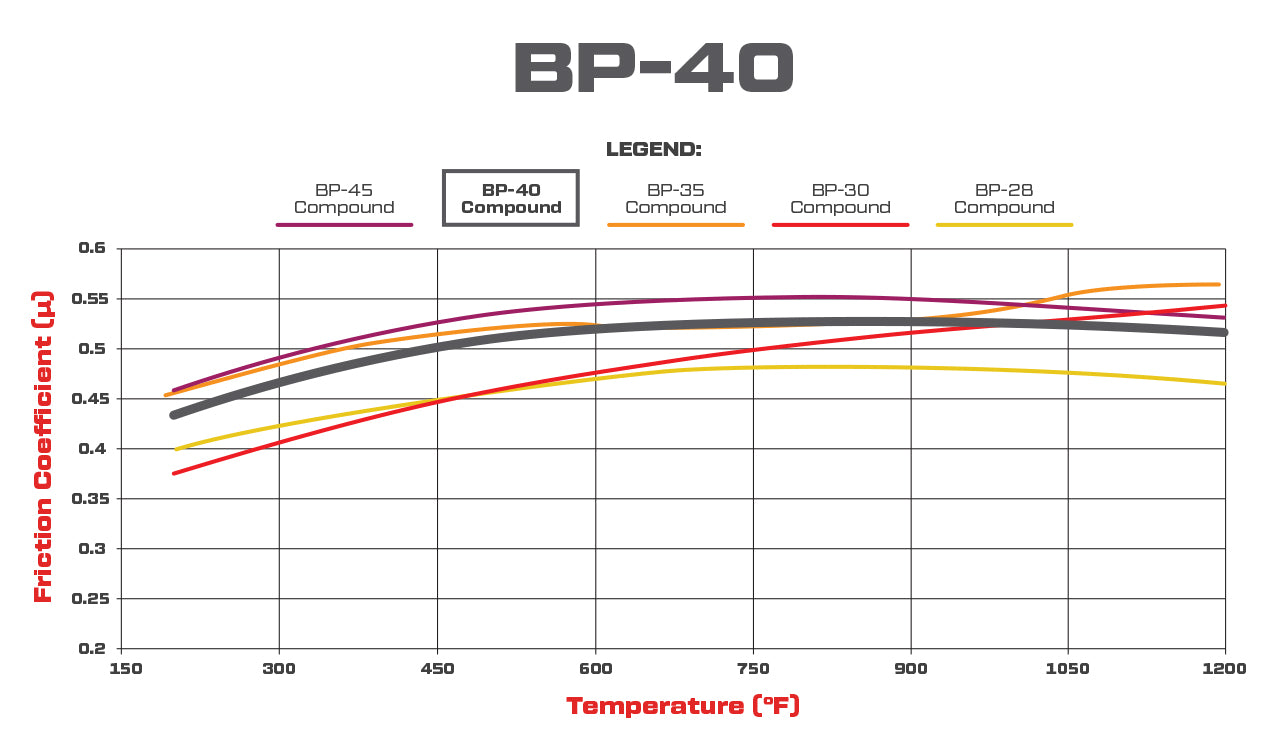

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.

Fitment & Compatibility

Select this 0.80-inch pad for the XRZ4R radial-mount caliper. It is thicker than the 0.65-inch XRS version; verify the available pad space and rotor specification.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
