Product details
Wilwood Engineering was founded by Bill Wood in 1977 in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized applications. BP-40 brake pads in the 0.65-inch XRS4R/XRS6R configuration supply four replacement pads. Choose each component to match the complete system’s braking requirements.
Technical Details
- Manufacturer part number: 150-40-10416K

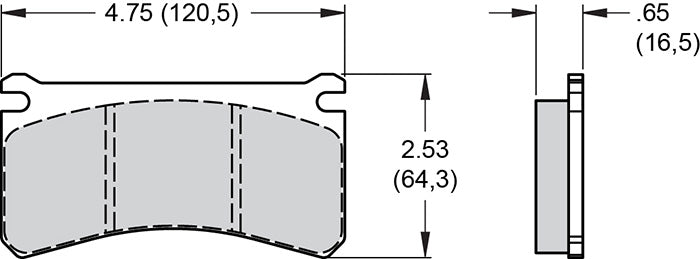

- Pad/shoe profile: 10416
- Catalog pad volume: 3.8 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Forged XRS4R Radial Mount; Forged XRS6R Radial Mount
- Package quantity: 4 individual pads
- Compound: BP-40
- Catalog thickness: 0.65 inch
- Catalog pad area: 8.2 square inches

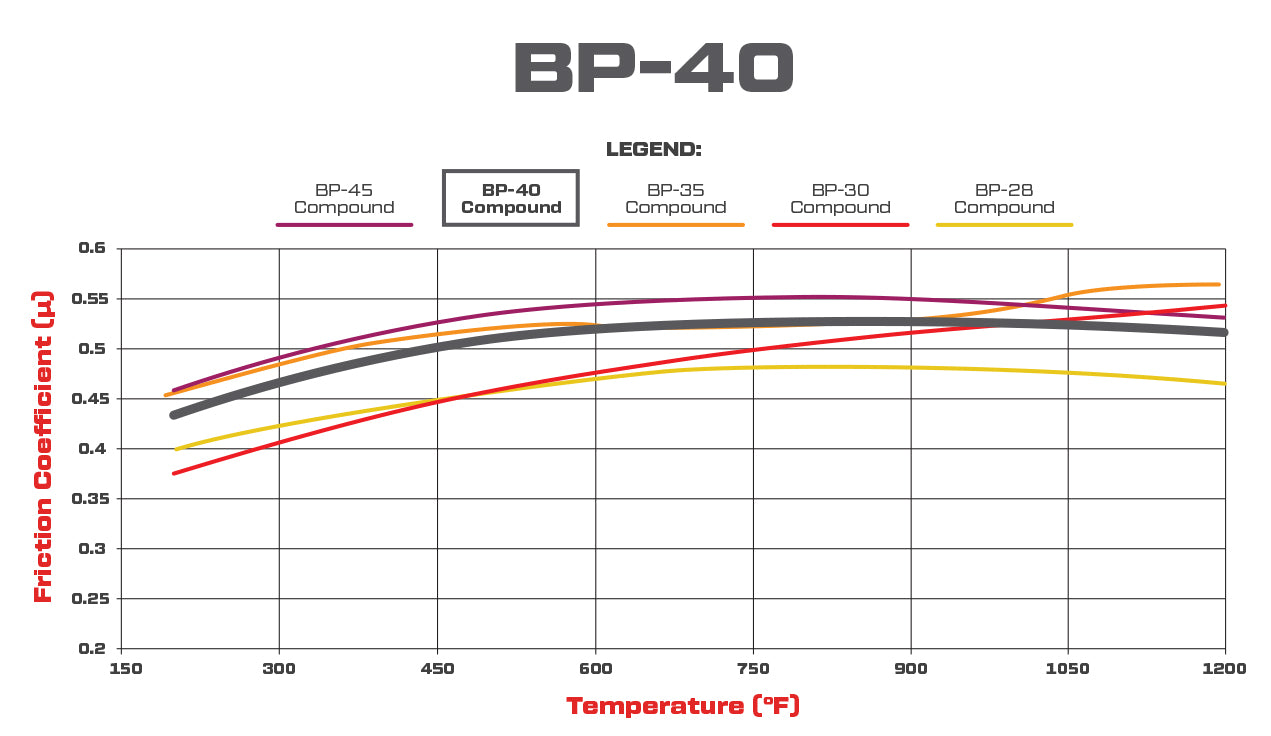

BP-40 provides an aggressive initial response and good low-temperature friction, followed by stable modulation under sustained racing heat. Wilwood lists steel, stainless steel, iron, Super Alloy and titanium rotor materials. This is a racing-only selection, not a street pad; temperature needs and system balance remain part of compound selection.
Fitment & Compatibility
The XRS4R and XRS6R radial-mount calipers use this 0.65-inch profile. Do not substitute the thicker XRZ pad simply because its outline looks similar.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
