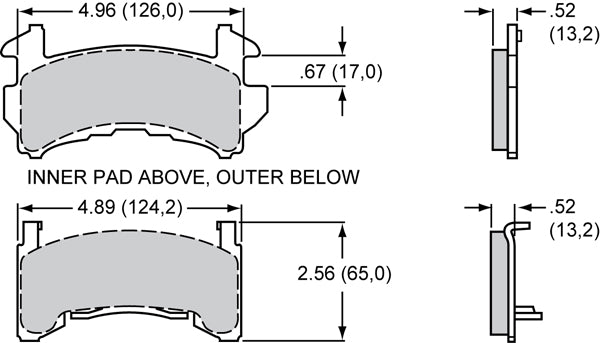

Wilwood GM Metric D154 brake pad outline with face and thickness dimensions

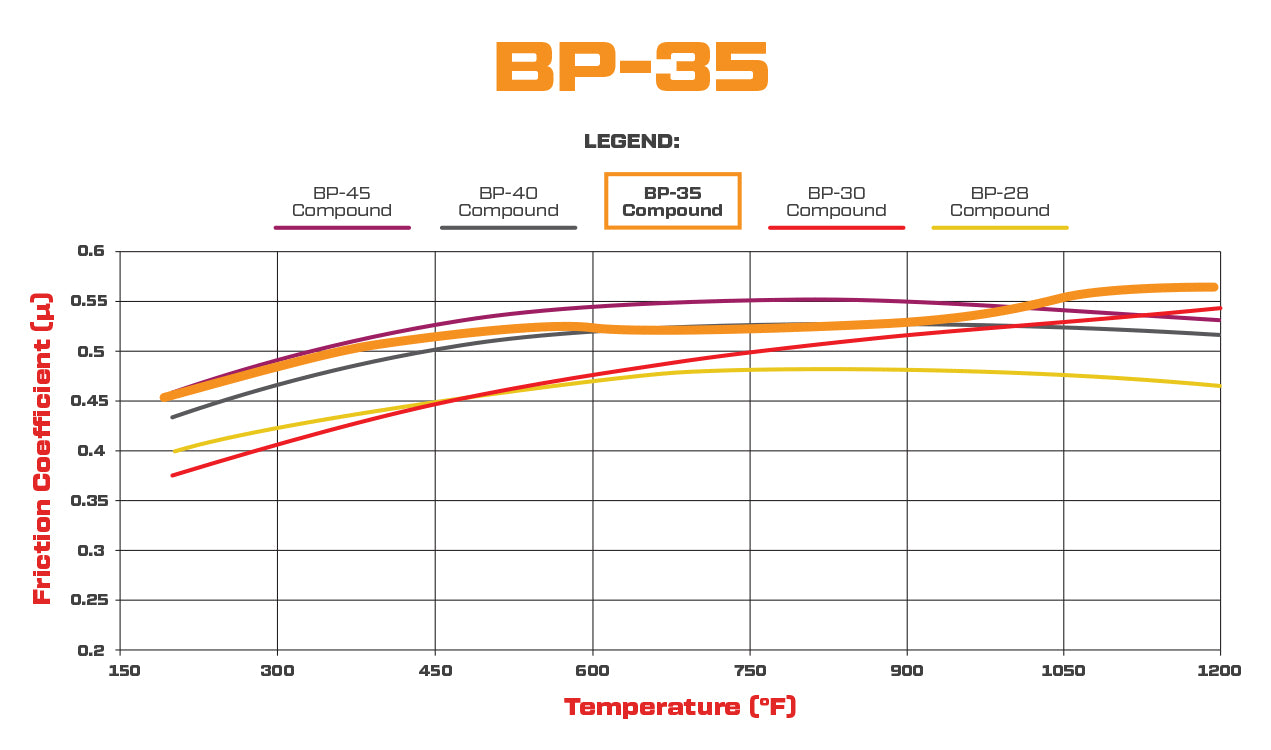

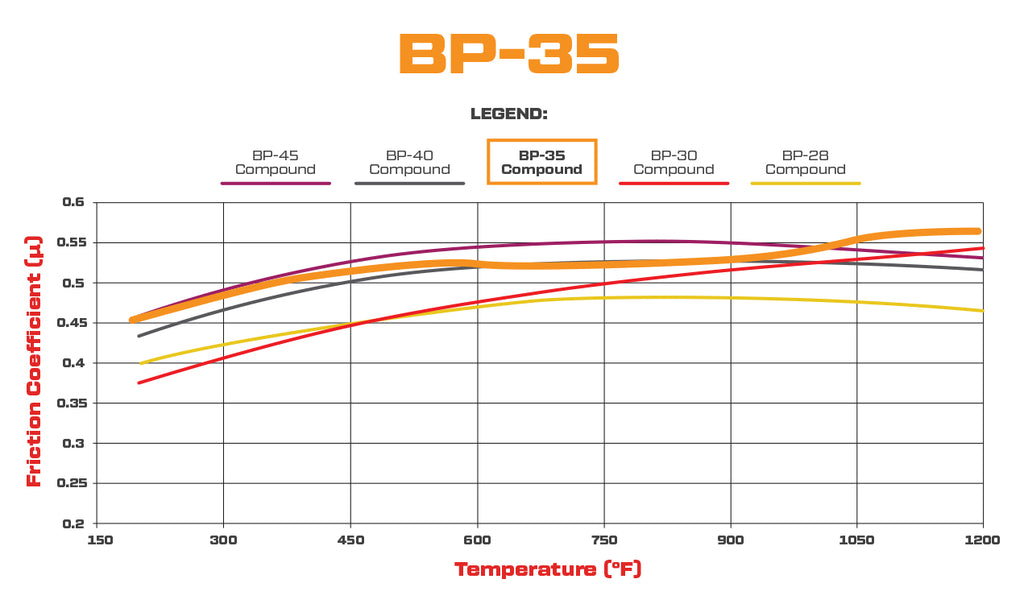

Wilwood BP-35 brake-pad friction coefficient versus temperature comparison chart
Wilwood GM Metric D154 brake pad outline with face and thickness dimensions
Wilwood BP-35 brake-pad friction coefficient versus temperature comparison chart

Wilwood Front/Rear D154 Pads for GM Metric Brakes, BP-35 Compound

SKU: 150-35-D154K

$226.15 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. BP-35 brake pads in the .52-inch GM Metric D154 configuration supply four replacement pads. Each component must be chosen for its role within the complete braking system.

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.

Technical Details

  • Manufacturer part number: 150-35-D154K
  • Pad/shoe profile: D154
  • Listed Wilwood calipers: D154 Single and Dual Piston Floater; D154-Dust Seal Single Piston Floater; D154-R Single Piston Floater; GM Single Piston; GM Metric Iron
  • Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
  • Catalog pad volume: 2.9 cubic inches
  • Catalog pad area: 8.7 square inches
  • Catalog thickness: .52 inch
  • Compound: BP-35
  • Package quantity: 4 individual pads

Fitment & Compatibility

D154 is a pad-shape designation, not a guarantee for every GM vehicle. Match the D154 column for the required axle in the fitment table below. Most listed uses are front; selected Cadillac, Buick and Oldsmobile applications use it at the rear. A different rear-pad code in a row is not supplied by this set.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Submodel Model option Front pad type Rear pad type OE spindle type OE rear type Front brakes Rear brakes
1997-2002 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear D154 Disc Disc
1979-1983 Chevrolet Malibu All D154 Disc Disc
1979-1988 Chevrolet Monte Carlo All D154 Disc Disc
1982 Chevrolet S10 Pickup All D154 Disc Disc
1981-1986 GMC Caballero Amarillo Amarillo D154 Disc Disc
1978-1987 GMC Caballero Base Base D154 Disc Disc
1978-1987 GMC Caballero Diablo Diablo D154 Disc Disc
1983-1990 GMC S15 4 x 2 D154 Disc Disc
1983-1990 GMC S15 4 x 4 D154 Disc Disc
1983-1991 GMC S15 Jimmy 4 x 2 D154 Disc Disc
1983-1991 GMC S15 Jimmy 4 x 4 D154 Disc Disc
1983-1997 Chevrolet S10 Blazer 4 x 2 D154 Disc Disc
1983-1996 Chevrolet S10 Blazer 4 x 4 D154 Disc Disc
1983-1996 Chevrolet S10 Pickup 4 x 2 D154 Disc Disc
1983-1996 Chevrolet S10 Pickup 4 x 4 D154 Disc Disc
1978 Pontiac Grand Prix Disc Brake Spindle D154 Disc Disc
1978 Pontiac LeMans Disc Brake Spindle D154 Disc Disc
1989-1992 Pontiac Firebird OE Single Piston Caliper Spindles, Disc Brake Rear D154 D413 Disc Disc Disc Disc
1988-1992 Pontiac Firebird OE Single Piston Caliper Spindles, Drum Brake Rear D154 Disc Disc
1979-1984 Oldsmobile Cutlass Calais Base Base D154 Disc Disc
1980-1983 Oldsmobile Cutlass Cruiser All D154 Disc Disc
1979-1987 Oldsmobile Cutlass Supreme Base Base D154 Disc Disc
1991-1994, 1996 Oldsmobile Bravada All D154 Disc Disc
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake D154 Disc Disc
1979-1987 Buick Regal All D154 Disc Disc
1984-1987 Buick Regal Grand National Grand National D154 Disc Disc
1982-1985 Buick Riviera Disc Brake Rear D154 Disc Disc
1979-1985 Buick Riviera Drum Brake Rear D154 Disc Disc
1996-2000 Isuzu Hombre 4 x 2 D154 Disc Disc
1979-1981 Buick Century All D154 Disc Disc
1978-1980 GMC Caballero Laredo Laredo D154 Disc Disc
1982-1987 Chevrolet Camaro Disc Brake Rear D154 Disc Disc
1982-1987 Chevrolet Camaro Drum Brake Rear D154 Disc Disc
1978-1987 Chevrolet El Camino All D154 Disc Disc
1981 GMC Caballero Conquista Conquista D154 Disc Disc
1981 GMC Caballero Royal Knight Royal Knight D154 Disc Disc
1979-1981 Buick Riviera Disc Brake Rear D154 D154 Disc Disc Disc Disc
1988 Oldsmobile Cutlass Supreme RWD only D154 Disc Disc
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 D154 Disc Disc
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base D154 Disc Disc
1979 Buick Park Avenue Park Avenue w/ 12" Rotor, Disc Brake Rear D52 D154 Disc Disc Disc Disc
1982-1985 Oldsmobile Toronado Disc Brake Rear D154 Disc Disc
1979-1985 Oldsmobile Toronado Drum Brake Rear D154 Disc Disc
1982-1987 Pontiac Bonneville All D154 Disc Disc
1982-1987 Pontiac Firebird Disc Brake Rear D154 Disc Disc
1982-1987 Pontiac Firebird Drum Brake Rear D154 Disc Disc
1991-1996 GMC Sonoma 4 x 2 D154 Disc Disc
1991-1996 GMC Sonoma 4 x 4 D154 Disc Disc
1992-1993 GMC Typhoon All D154 Disc Disc
1979-1987 Pontiac Grand Prix All D154 Disc Disc
1979-1984 Cadillac DeVille Disc Brake Rear D52 D154 Disc Disc Disc Disc
1979-1981 Cadillac Eldorado All D154 D154 Disc Disc Disc Disc
1979-1984 Cadillac Fleetwood Brougham Brougham, Disc Brake Rear D52 D154 Disc Disc Disc Disc
1980-1981 Cadillac Seville All D154 D154 Disc Disc Disc Disc
1982-1985 Cadillac Eldorado All D154 Disc Disc
1982-1985 Cadillac Seville All D154 Disc Disc
1989-1992 Chevrolet Camaro OE Single Piston Caliper Spindles, Disc Brake Rear D154 D413 Disc Disc Disc Disc
1988-1992 Chevrolet Camaro OE Single Piston Caliper Spindles, Drum Brake Rear D154 Disc Disc
1978 Buick Century Disc Brake Spindle D154 Disc Disc
1978 Buick Regal Disc Brake Spindle D154 Disc Disc
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst D154 Disc Disc
1991 GMC Syclone All D154 Disc Disc
1992-1996 GMC Jimmy 4 x 4 D154 Disc Disc
1992-1997 GMC Jimmy 4 x 2 D154 Disc Disc
1979 Cadillac Seville All D52 D154 Disc Disc Disc Disc
1988 Pontiac Firebird OE Single Piston Caliper Spindles, Disc Brake Rear D154 Disc Disc
1997 GMC Jimmy 4 x 4, w/o AWD D154 Disc Disc
1997 GMC Sonoma 4 x 4, w/o AWD D154 Disc Disc
1980 Oldsmobile Cutlass Base Base D154 Disc Disc
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham D154 Disc Disc
1977, 1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham D154 Disc Disc
1979-1981 Oldsmobile Toronado Disc Brake Rear D154 D154 Disc Disc Disc Disc
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser D154 Disc Disc
1987 Oldsmobile Cutlass Supreme 442 442 D154 Disc Disc
1982 GMC S15 All D154 Disc Disc
1997 Chevrolet S10 Blazer 4 x 4, w/o AWD, w/ Drum Rear D154 Disc Disc
1997 Chevrolet S10 Pickup 4 x 4, w/o AWD, w/ Drum Rear D154 Disc Disc
1979-1980 Pontiac Grand Am All D154 Disc Disc
1979-1980 Pontiac LeMans All D154 Disc Disc
1978 Chevrolet Malibu Disc Brake Spindle D154 Disc Disc
1978 Chevrolet Monte Carlo Disc Brake Spindle D154 Disc Disc
1981 Oldsmobile Cutlass Brougham Brougham D154 Disc Disc
1981 Oldsmobile Cutlass Supreme LS LS D154 Disc Disc
1979 Oldsmobile Cutlass Salon Hurst Hurst D154 Disc Disc
1977 Oldsmobile Cutlass Supreme Colonnade Colonnade D154 Disc Disc
1978 Oldsmobile Cutlass Disc Brake Spindle D154 Disc Disc
1978 Oldsmobile Cutlass Supreme Disc Brake Spindle D154 Disc Disc
1978 Pontiac Grand Am Disc Brake Spindle D154 Disc Disc
1981 Pontiac LeMans All (Canada) D154 Disc Disc
1988 Chevrolet Camaro OE Single Piston Caliper Spindles, Disc Brake Rear D154 Disc Disc
