Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-35 brake pads in the .60-inch Narrow Dynalite/Dynapro Radial configuration supply four replacement pads. Each part must be selected to work with the complete brake system and its requirements.
Technical Details
- Manufacturer part number: 150-35-7816K

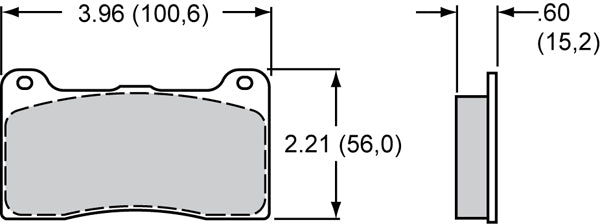

- Pad/shoe profile: 7816
- Listed Wilwood calipers: Narrow Dynalite; Narrow Dynalite Radial Mount; Cast Narrow Dynalite; Dynapro 4 Piston Radial Mount-Dust Seal; Dynapro 4 Piston Radial Mount; Dynapro-ST 4 Piston Radial Mount; Forged Narrow Dynalite; Narrow Dynapro Lug Mount
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Catalog pad volume: 3 cubic inches
- Catalog pad area: 6.36 square inches
- Catalog thickness: .60 inch
- Compound: BP-35
- Package quantity: 4 individual pads

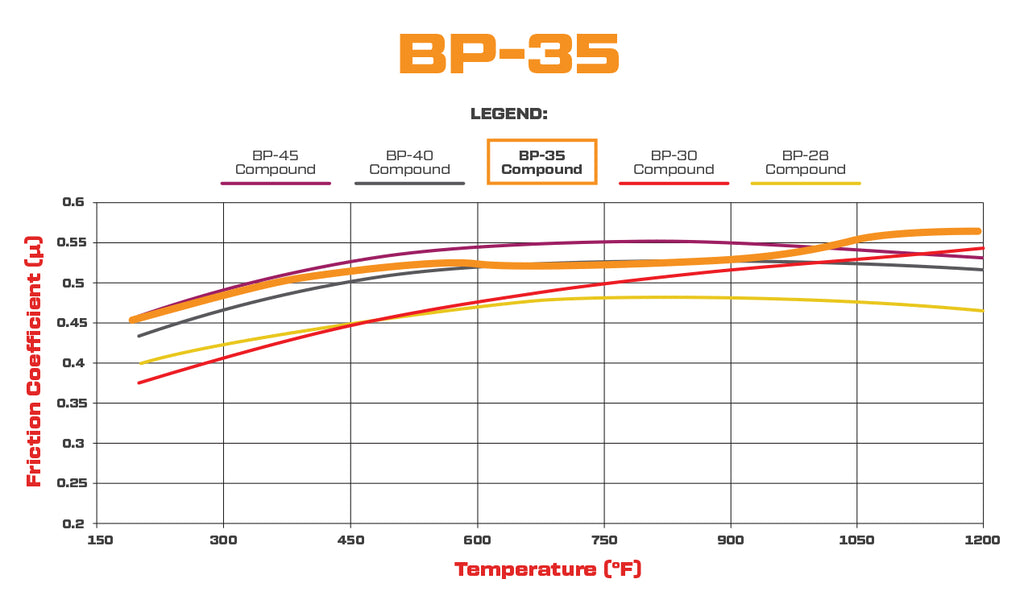

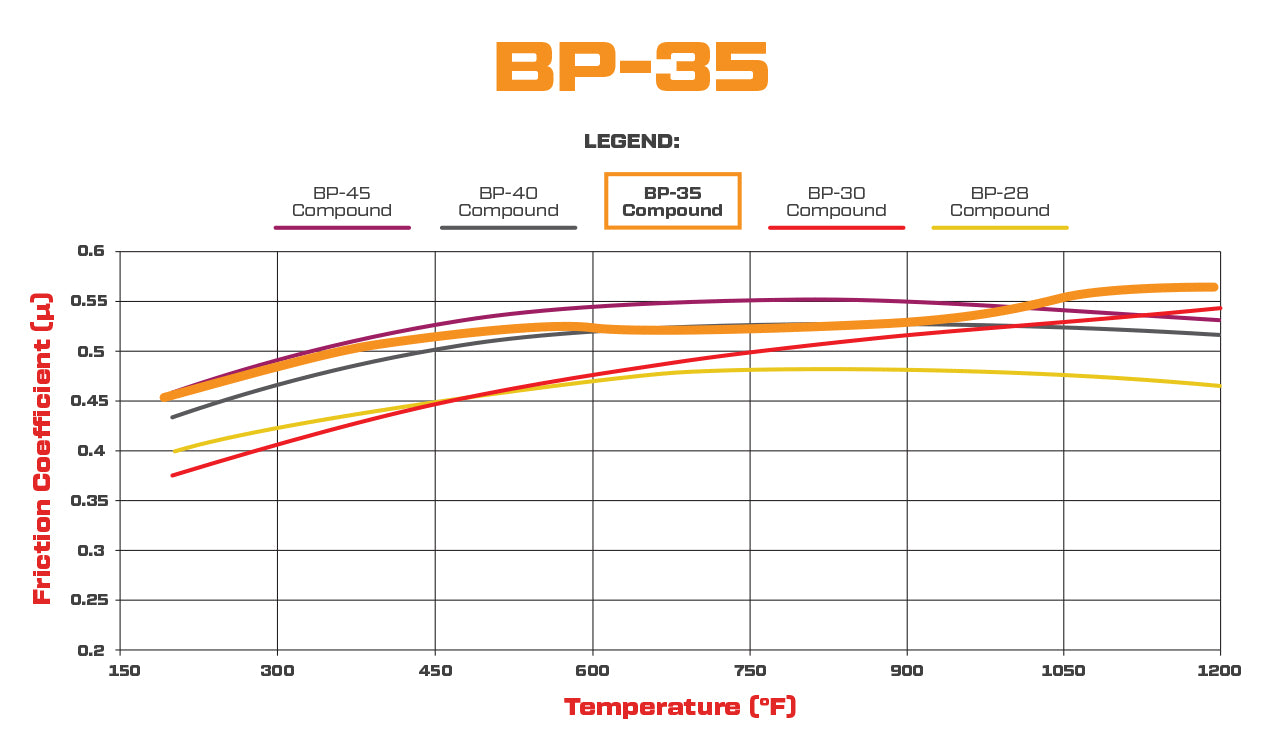

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Fitment & Compatibility
The 0.60-inch version is listed for narrow Dynalite and the specified radial-mount or narrow-lug Dynapro calipers. Compare caliper generation, retention and rotor width with the installed assembly.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
