Product details
Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. BP-35 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.

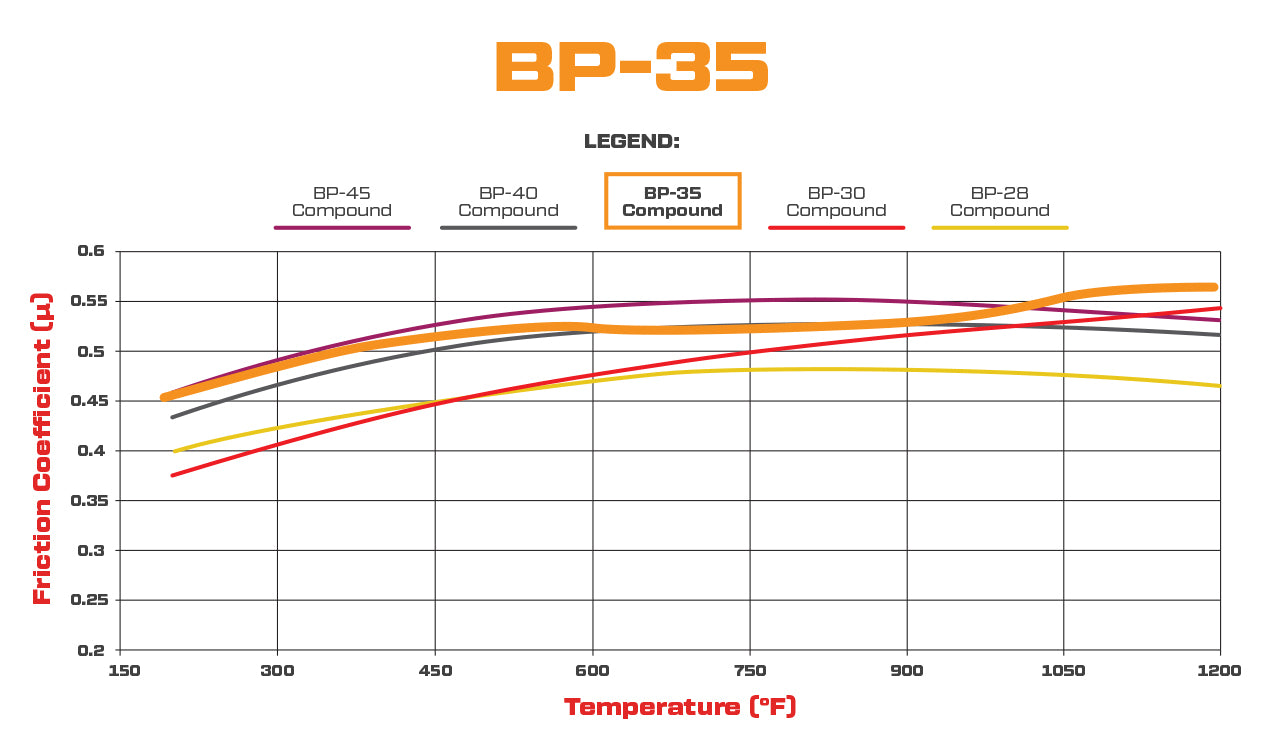

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Technical Details
- Manufacturer part number: 150-35-7812K

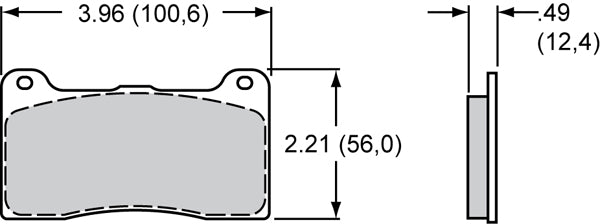

- Pad/shoe profile: 7812
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Catalog pad volume: 2.1 cubic inches
- Catalog pad area: 6.36 square inches
- Catalog thickness: .49 inch
- Compound: BP-35
- Package quantity: 4 individual pads
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
