Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-35 brake pads in the .80-inch Wide Superlite configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 150-35-7420K
- Pad/shoe profile: 7420
- Package quantity: 4 individual pads
- Compound: BP-35

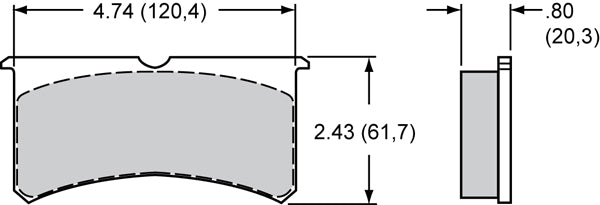

- Catalog thickness: .80 inch
- Catalog pad area: 8.2 square inches
- Catalog pad volume: 4.9 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Superlite 4 Lug Mount; Billet Superlite 4R Radial Mount; Billet Superlite 6 Lug Mount; Billet Superlite 6R Radial Mount; Forged Superlite; Forged Superlite 4R Radial Mount; Forged Superlite 6R Radial Mount; Forged Superlite Internal

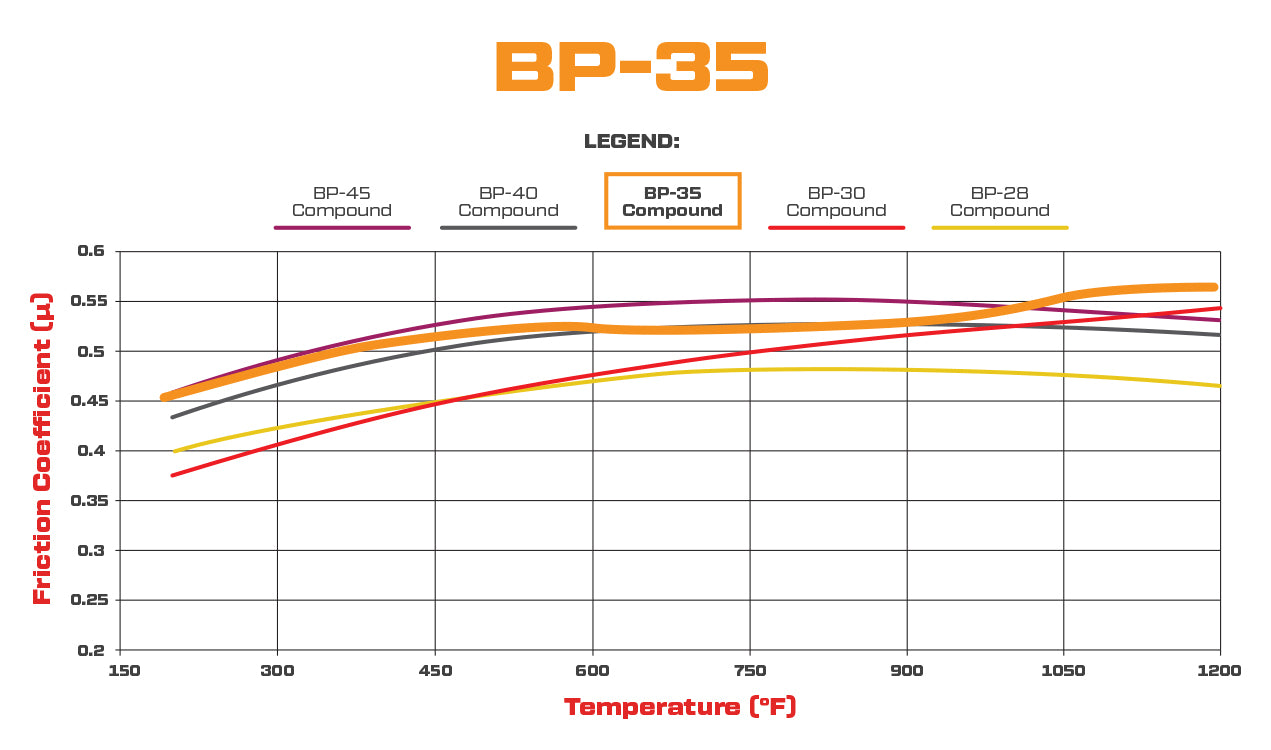

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Fitment & Compatibility
Use this 0.80-inch configuration in the listed billet or forged Superlite calipers. Verify the wide pad cavity and rotor combination; the narrower FNSL selection has a different thickness.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
