Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-35 brake pads in the .65-inch Narrow Superlite/FNSL configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.
Technical Details
- Manufacturer part number: 150-35-7416K

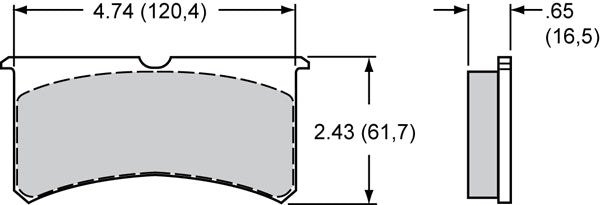

- Pad/shoe profile: 7416
- Compound: BP-35
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .65 inch
- Catalog pad volume: 3.8 cubic inches
- Listed Wilwood calipers: Billet Narrow Superlite 4R Radial Mount; Billet Narrow Superlite 6 Lug Mount; Billet Narrow Superlite 6R Radial Mount; Forged Superlite; FNSL4R-Dust Seal; FNSL4R; FNSL6R-Dust Seal; FNSL6R; SLC56

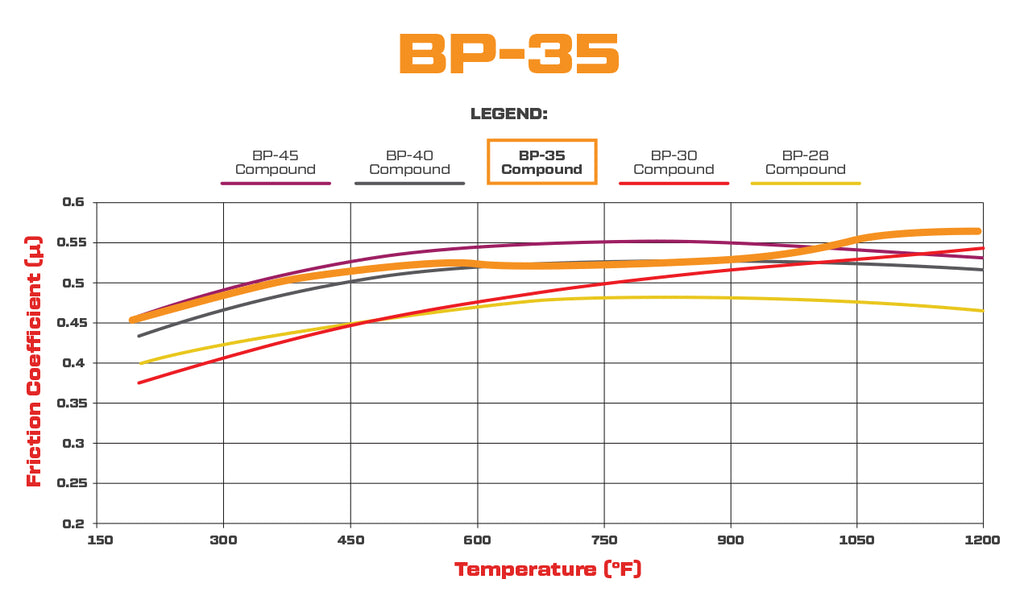

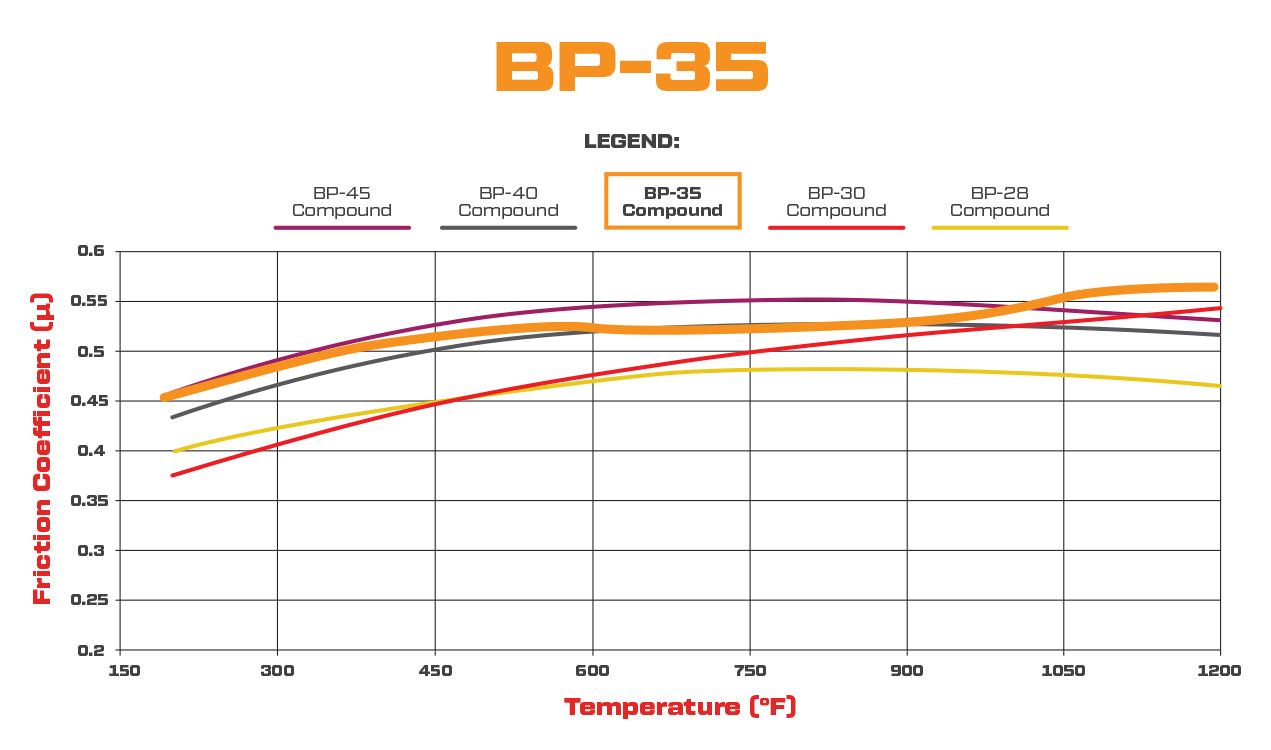

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Fitment & Compatibility
Narrow Superlite and the listed FNSL/SLC56 configurations use this 0.65-inch selection. It should not be replaced with the 0.80-inch wide-Superlite version solely on appearance.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
