Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-35 brake pads in the .49-inch Dynalite Single/Dynapro Single configuration supply four replacement pads. Choose each component to match the complete system’s braking requirements.
Technical Details
- Manufacturer part number: 150-35-6812K
- Pad/shoe profile: 6812
- Package quantity: 4 individual pads
- Compound: BP-35
- Catalog thickness: .49 inch
- Catalog pad area: 3 square inches
- Catalog pad volume: 1.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Dynalite Single; Dynalite Single III; Dynalite Single Floater; Dynapro Single

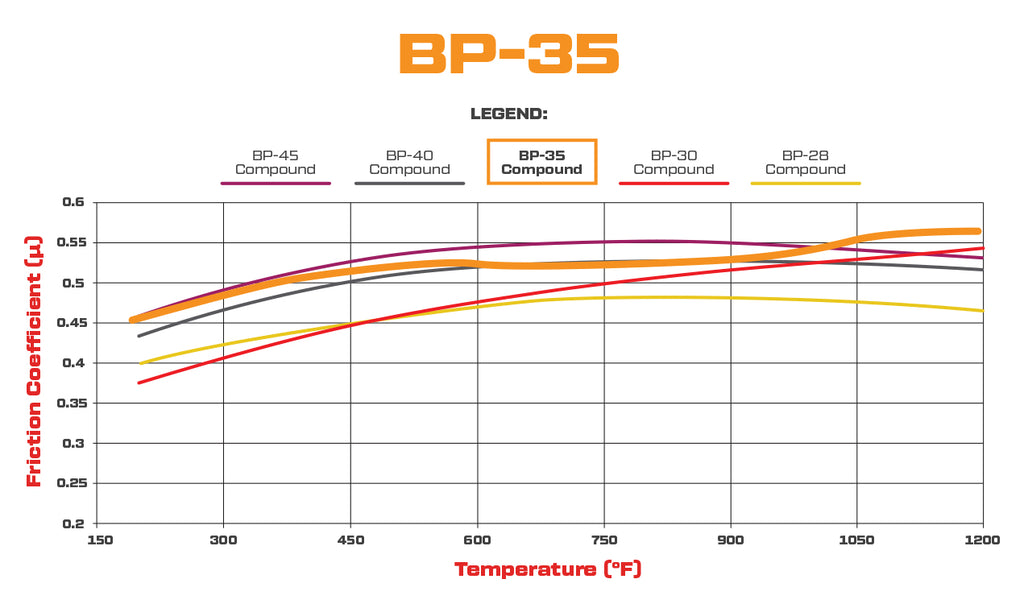

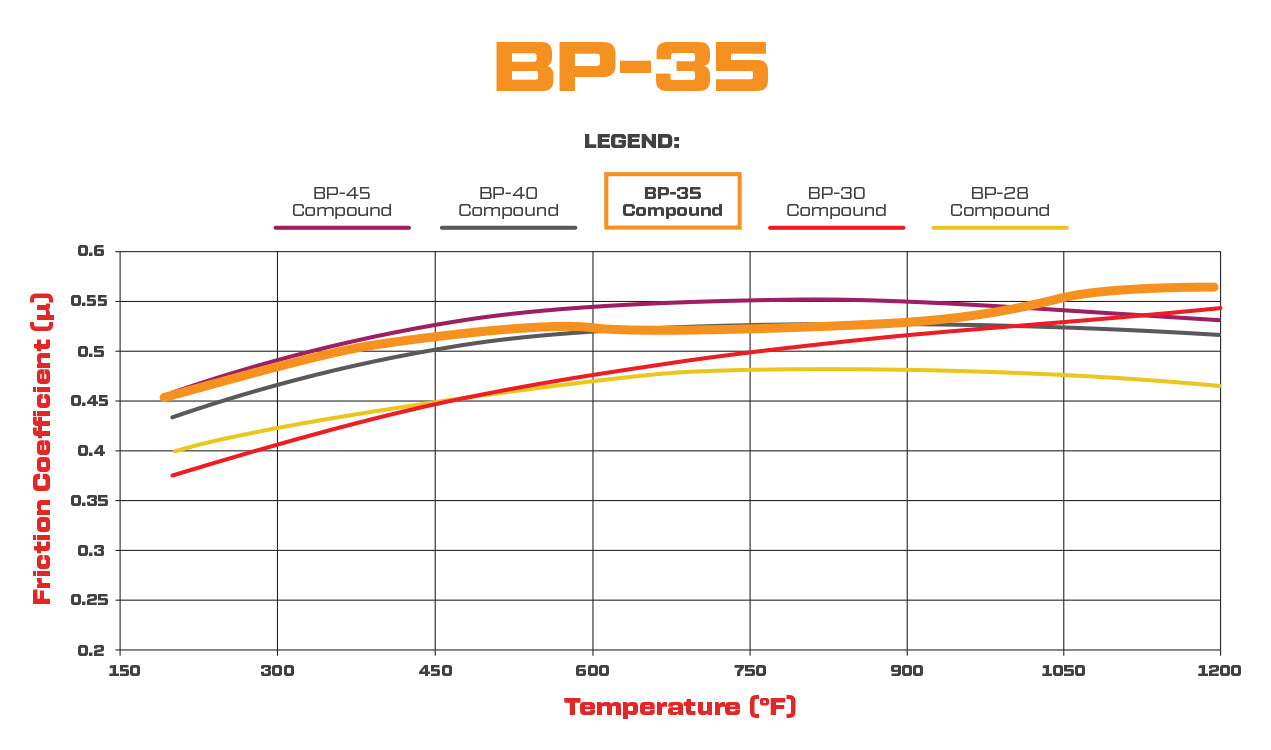

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Fitment & Compatibility

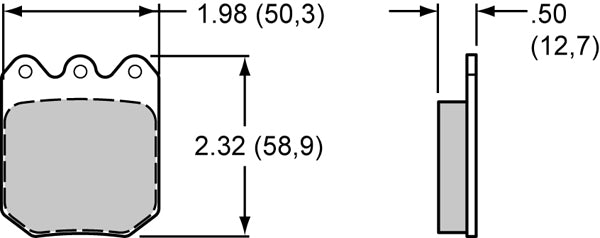

Listed calipers include Dynalite Single, Single III, Single Floater and Dynapro Single. Compare the distinctive three-hole outline with the installed pad; a full-size Dynalite pad is a different shape.
The general outline drawing marks .50 inch, while the exact part specification lists .49 inch. Confirm the actual caliper clearance rather than treating the illustration as a precision tolerance drawing.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
