Product details
Wilwood Engineering was founded by Bill Wood in 1977 in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized applications. BP-35 brake pads in the .49-inch Dynapro 6/6A Lug-Mount configuration supply four replacement pads. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-35-6712K

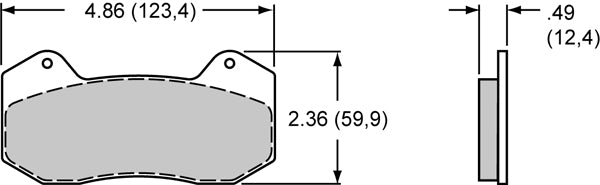

- Pad/shoe profile: 6712
- Catalog thickness: .49 inch
- Catalog pad area: 7.3 square inches
- Catalog pad volume: 2.4 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Dynapro 6 Piston Lug Mount; Forged Dynapro 6A Lug Mount
- Package quantity: 4 individual pads
- Compound: BP-35

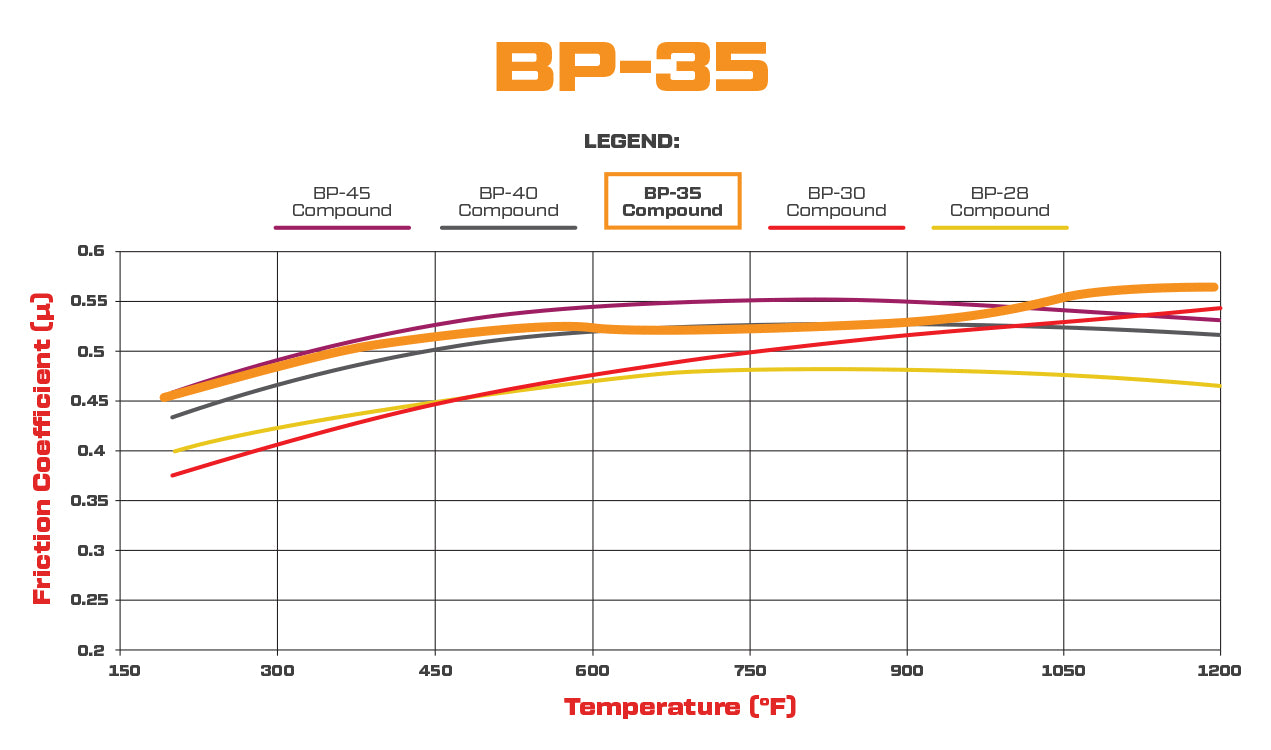

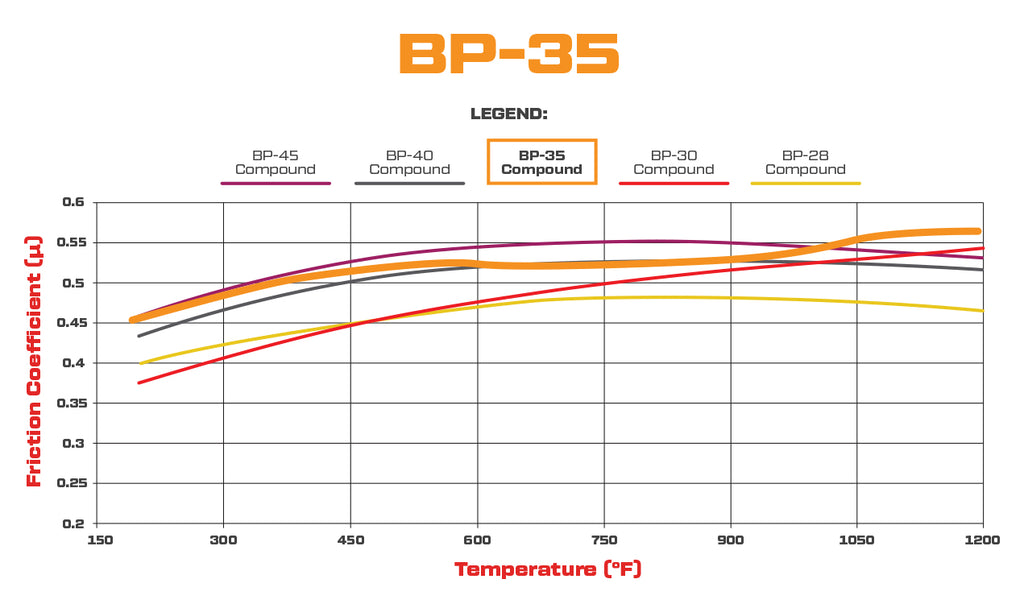

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Fitment & Compatibility
This profile serves the Dynapro six-piston lug-mount and Forged Dynapro 6A lug-mount calipers. It is not a general fit for every Dynapro; retaining geometry and overall thickness must agree.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
