Wilwood Racing Brake Pads for AERO and W-Series, BP-35

Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-35 brake pads in the .67-inch AERO4/AERO6 and W4A/W6A configuration supply four replacement pads. Select individual components to meet the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-35-6617K

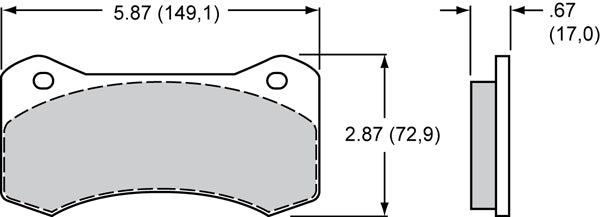

• Pad/shoe profile: 6617
• Listed Wilwood calipers: Aero4; Aero4-Dust Seal; Aero6; Aero6-Dust Seal; Aero6-DM; W4A; W6A
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Catalog pad volume: 5.2 cubic inches
• Catalog pad area: 11.1 square inches
• Catalog thickness: .67 inch
• Compound: BP-35
• Package quantity: 4 individual pads

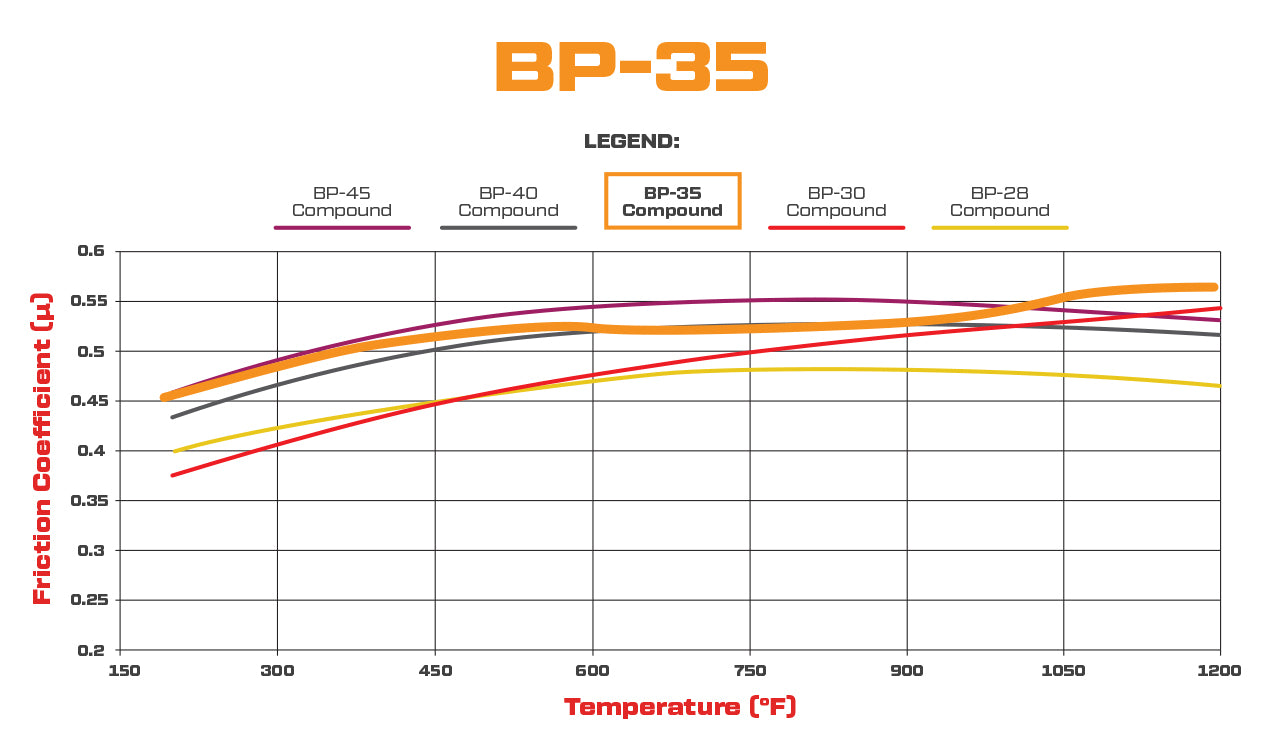

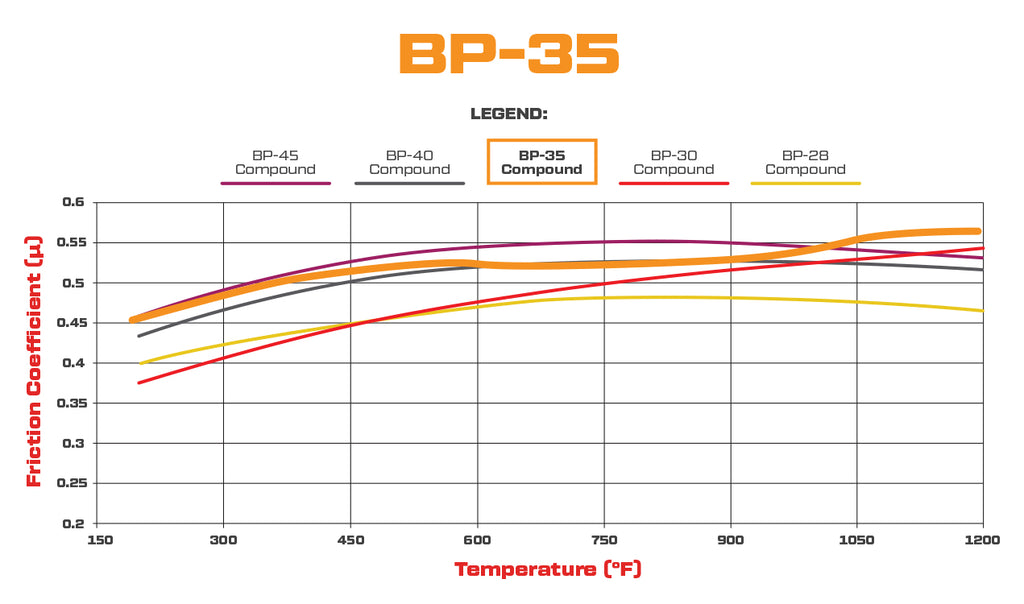

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.

Fitment & Compatibility

Use the 0.67-inch pad only in the listed AERO4, AERO6 and W-series configurations. The thicker 0.80-inch AERO option is a separate selection, even where the pad face appears similar.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
