Product details
Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. BP-35 brake pads in the 0.65-inch XRS4R/XRS6R configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.

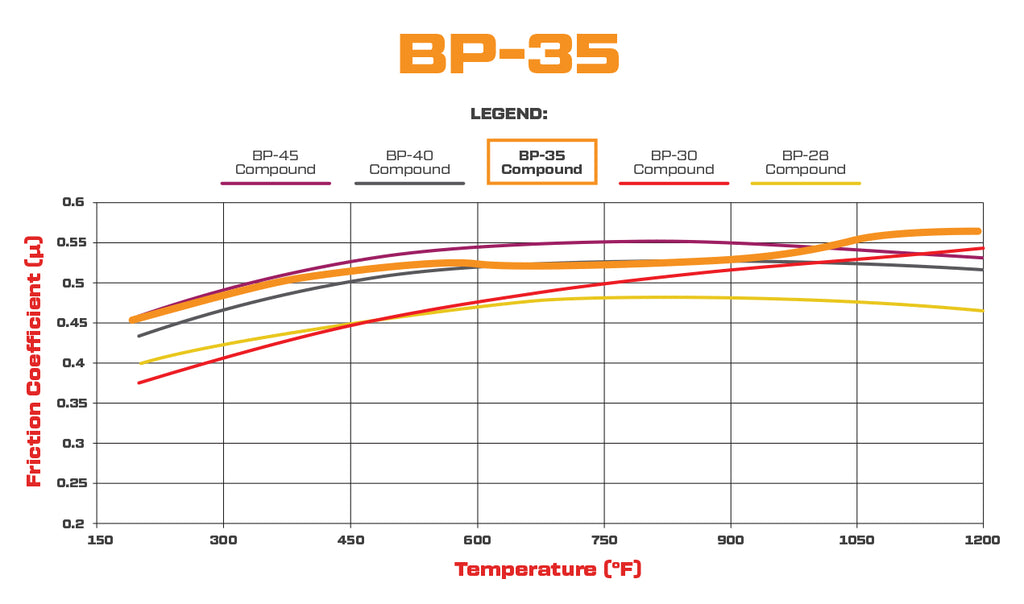

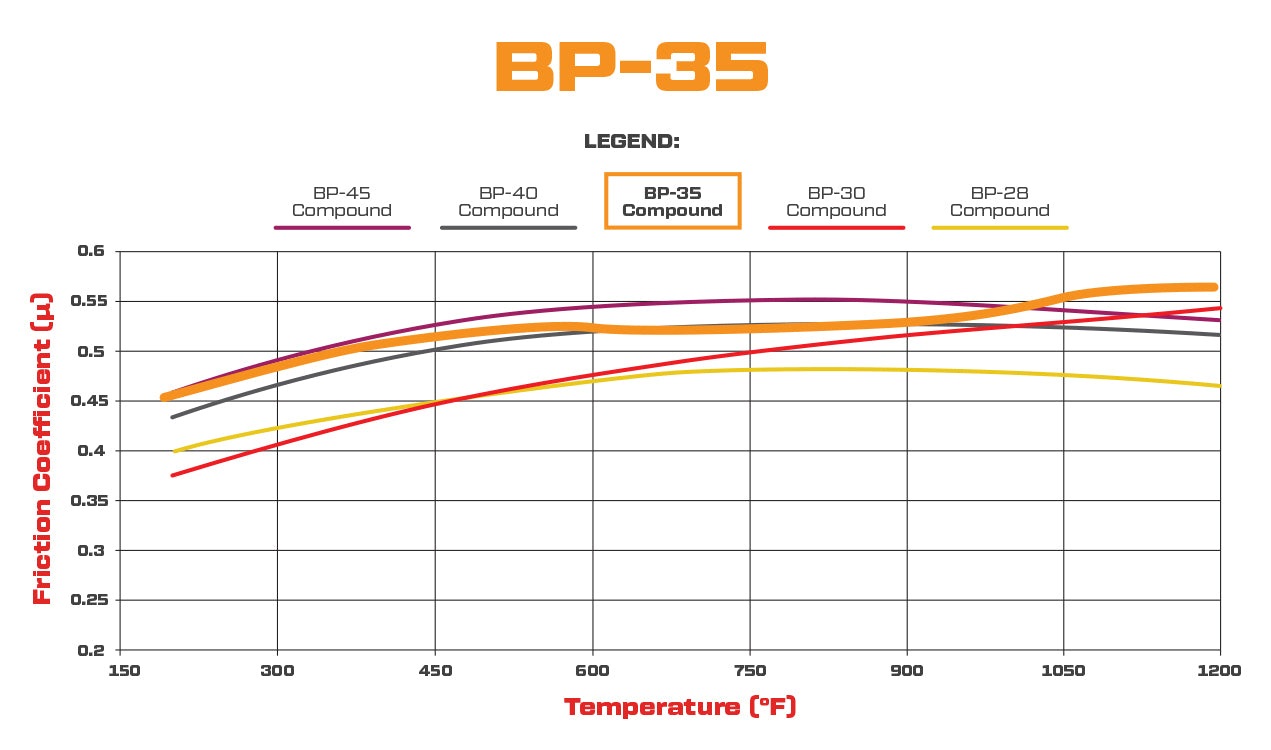

BP-35 is a high-friction racing formulation with smooth, linear response and controlled release. Friction develops with heat, while Wilwood characterizes pad wear as low to medium. Use the compound with iron or steel rotors. Its road-course, oval and off-road racing roles do not establish suitability for street service.
Technical Details
- Manufacturer part number: 150-35-10416K

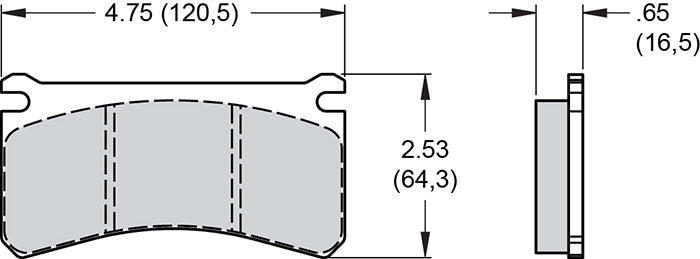

- Pad/shoe profile: 10416
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: 0.65 inch
- Catalog pad volume: 3.8 cubic inches
- Listed Wilwood calipers: Forged XRS4R Radial Mount; Forged XRS6R Radial Mount
- Compound: BP-35
Fitment & Compatibility
The XRS4R and XRS6R radial-mount calipers use this 0.65-inch profile. Do not substitute the thicker XRZ pad simply because its outline looks similar.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
