Wilwood Front BP-30 Race Pads for Mustang GT Brembo (2015–2023), Bullitt (2019–2020), Mach 1 (2021–2023) / SX6R

Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. This front BP-30 selection supplies 4 individual pads for 2015–2023 Mustang Brembo applications. Select the individual parts around the requirements of the entire braking system.

Technical Details

• Manufacturer part number: 150-30-D1792K
• Pad/shoe profile: D1792
• Package quantity: 4 individual pads
• Compound: BP-30
• Catalog thickness: .60 inch
• Catalog pad area: 15.9 square inches
• Catalog pad volume: 7.66 cubic inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Listed Wilwood calipers: SX6R

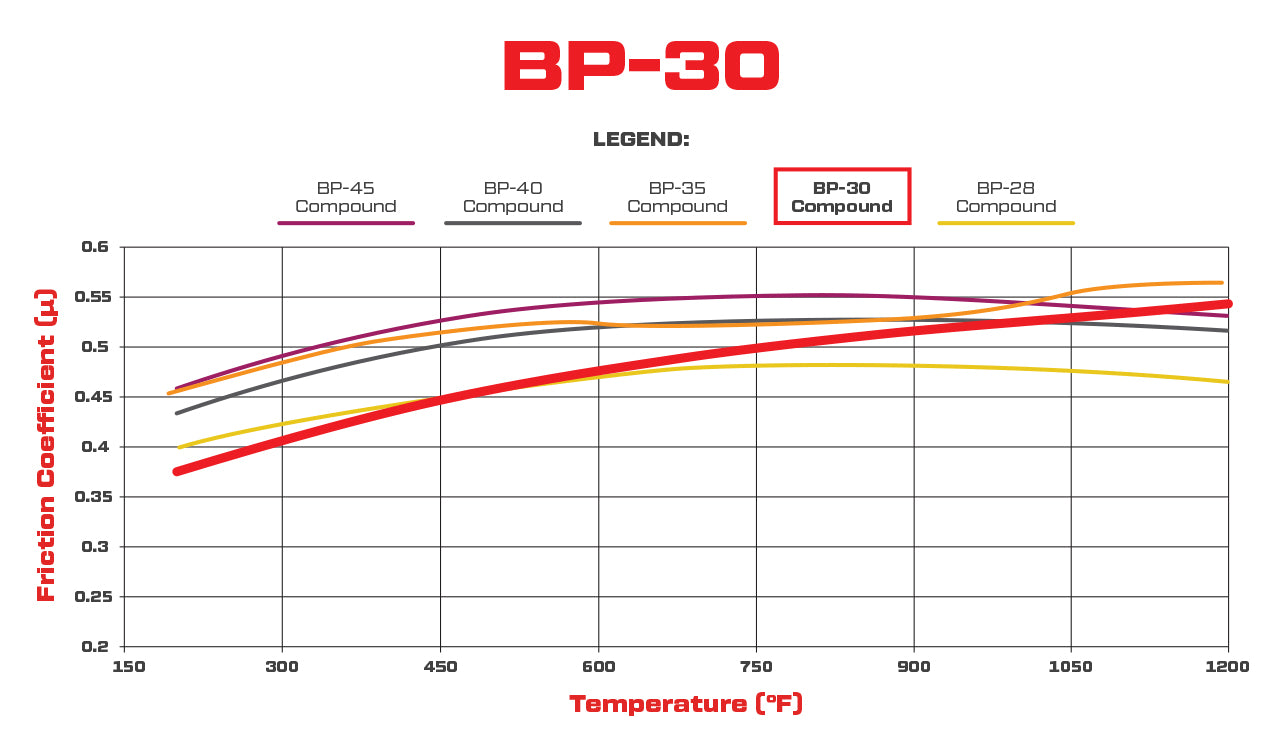

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.

Fitment & Compatibility

The fitment table below covers the stated 2015–2023 Mustang GT/GT Premium Brembo applications, the 2015 GT 50th Anniversary, Bullitt 2019–2020 and Mach 1 2021–2023. Match the D1792 front code and six-piston Brembo option. Wilwood also lists SX6R calipers for this shape. A base GT without that brake option is not established as compatible.

Manufacturer Reference

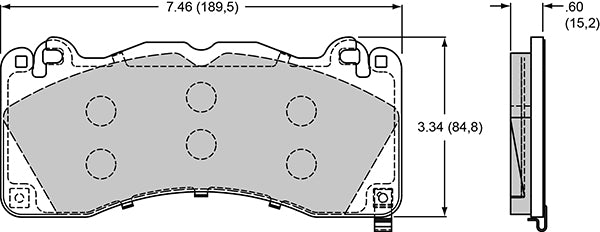

Wilwood pad dimensions, compound and caliper information

Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications
