Wilwood Front BP-30 12-Pad Set, Corvette Z06 (2006–2013), Grand Sport (2010–2013), 427 (2013)

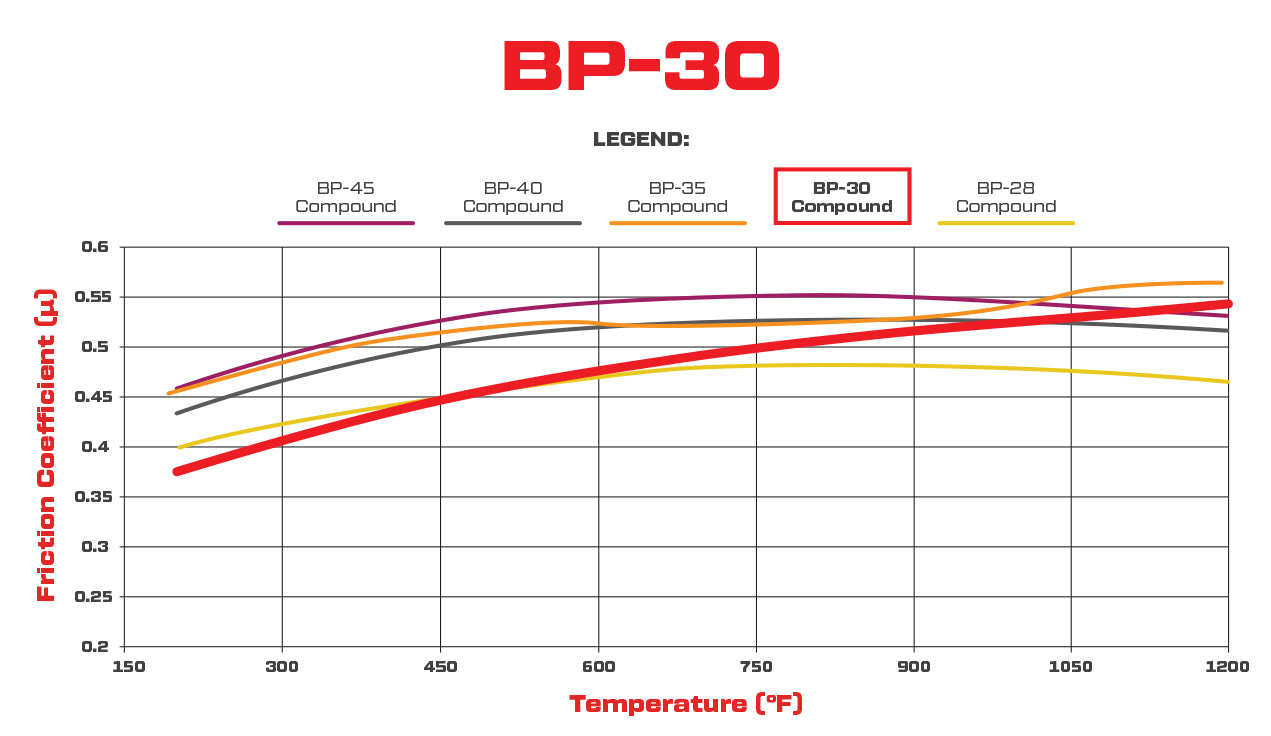

Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. This front BP-30 selection supplies 12 individual pads for Corvette Z06 2006–2013 / Grand Sport 2010–2013 / 427 2013. For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving. Choose each component to match the complete system’s braking requirements.

Technical Details

• Manufacturer part number: 150-30-D1185K

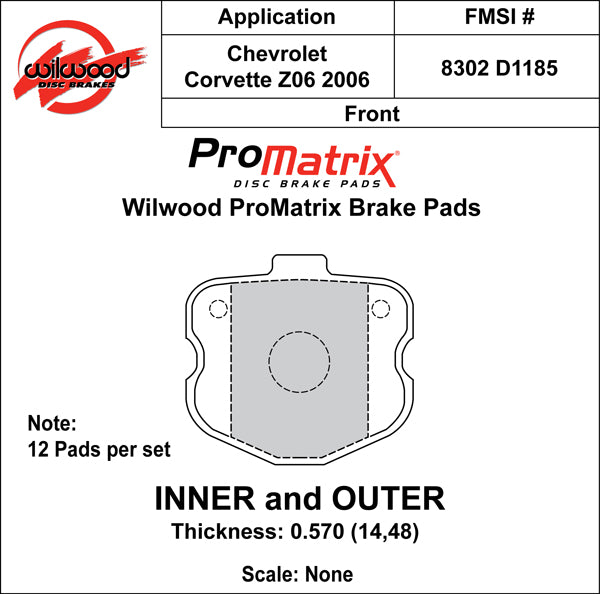

• Pad/shoe profile: D1185
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Catalog thickness: .57 inch
• Compound: BP-30
• Package quantity: 12 individual pads

Fitment & Compatibility

Twelve individual front pads are supplied for the Corvette multi-pad arrangement, rather than a conventional four-pad package. The fitment table below identifies Z06 2006–2013, Grand Sport 2010–2013 and 2013 427 applications. Confirm the caliper configuration and iron/steel rotor material; the eight-pad rear set is different.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
