Wilwood Rear BP-30 D1053 Race Pads for CTS-V/STS, Camaro, 300, Challenger/Charger, Magnum and Grand Cherokee

Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. This rear BP-30 selection supplies 4 individual pads for Brembo-equipped GM and Chrysler applications. Each component must be chosen for its role within the complete braking system.

Technical Details

• Manufacturer part number: 150-30-D1053K

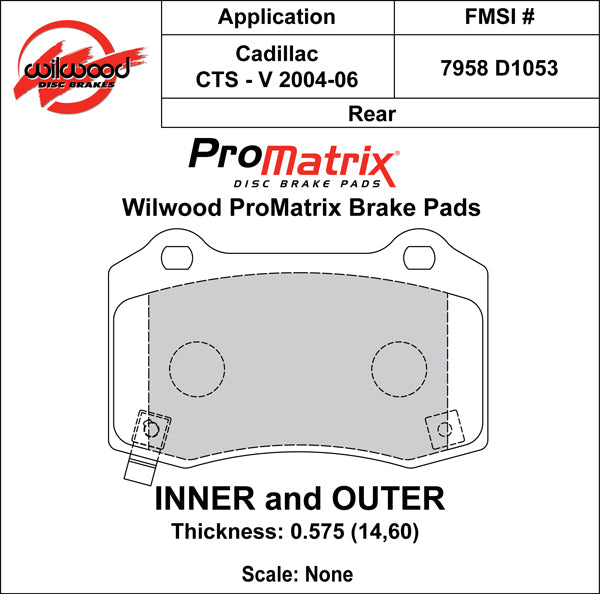

• Pad/shoe profile: D1053
• Catalog thickness: .575 inch
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads
• Compound: BP-30

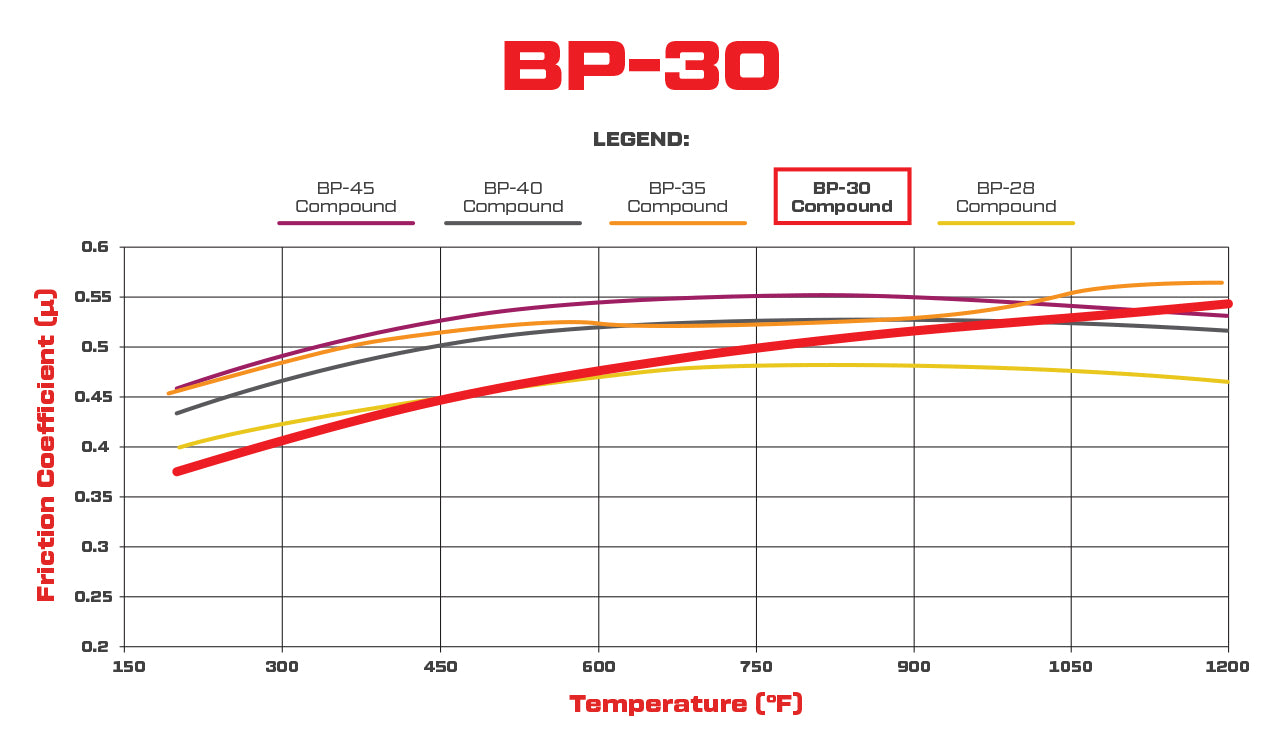

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.

Fitment & Compatibility

The fitment table below includes Cadillac CTS-V/STS, Chevrolet Camaro, Chrysler 300, Dodge Challenger/Charger/Magnum and Jeep Grand Cherokee. Each requires the stated Brembo system, trim, engine, year and axle. D1053 identifies the rear outline only. BP-30 requires iron or steel rotors: do not apply a carbon-ceramic Z/28 configuration merely because a Z28 row is present.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications
