Wilwood Rear Corvette C5 (1997–2004), Base C6 (2005–2013) and XLR (2004–2009) Pads, BP-30 Racing

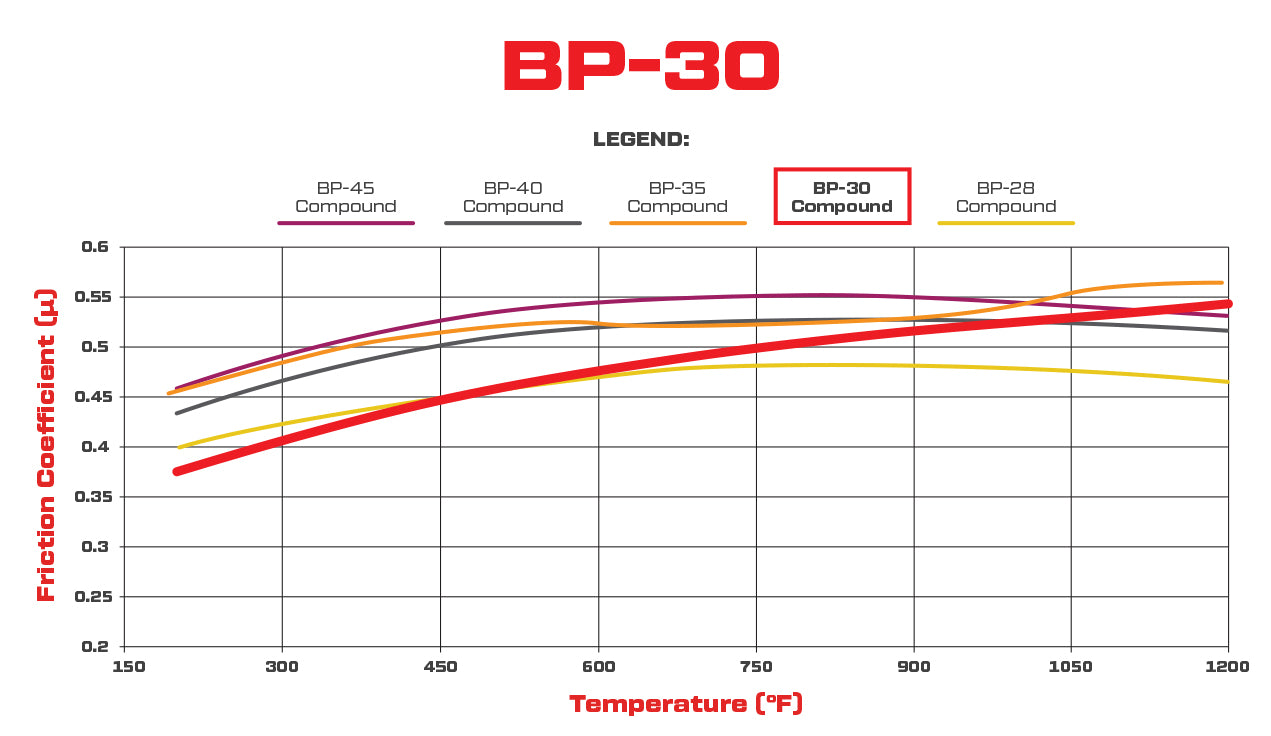

Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. This rear BP-30 selection supplies 4 individual pads for Corvette 1997–2013 / XLR 2004–2009. For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving. Select individual components to meet the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-30-D0732K

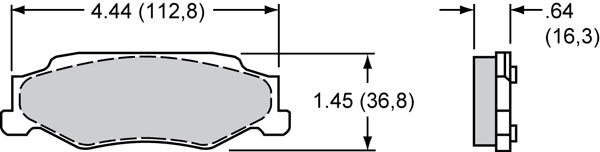

• Pad/shoe profile: D732
• Compound: BP-30
• Catalog pad volume: 1.7 cubic inches
• Package quantity: 4 individual pads
• Catalog thickness: .64 inch
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.

Fitment & Compatibility

For the rear axle, use only the D732 applications in the fitment table below. It includes C5 Corvette/Z06, the listed C6 Base cars and Cadillac XLR, with the exact year splits shown there. Front D731 pads are a separate shape and are not included.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
