Wilwood Front Race Pad Set, BP-30: XLR (2004–2009), Corvette C5 (1997–2004) and C6 Base (2005–2013)

Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. This front BP-30 selection supplies 4 individual pads for 1997–2013 Corvette and 2004–2009 XLR. Each part must be selected to work with the complete brake system and its requirements.

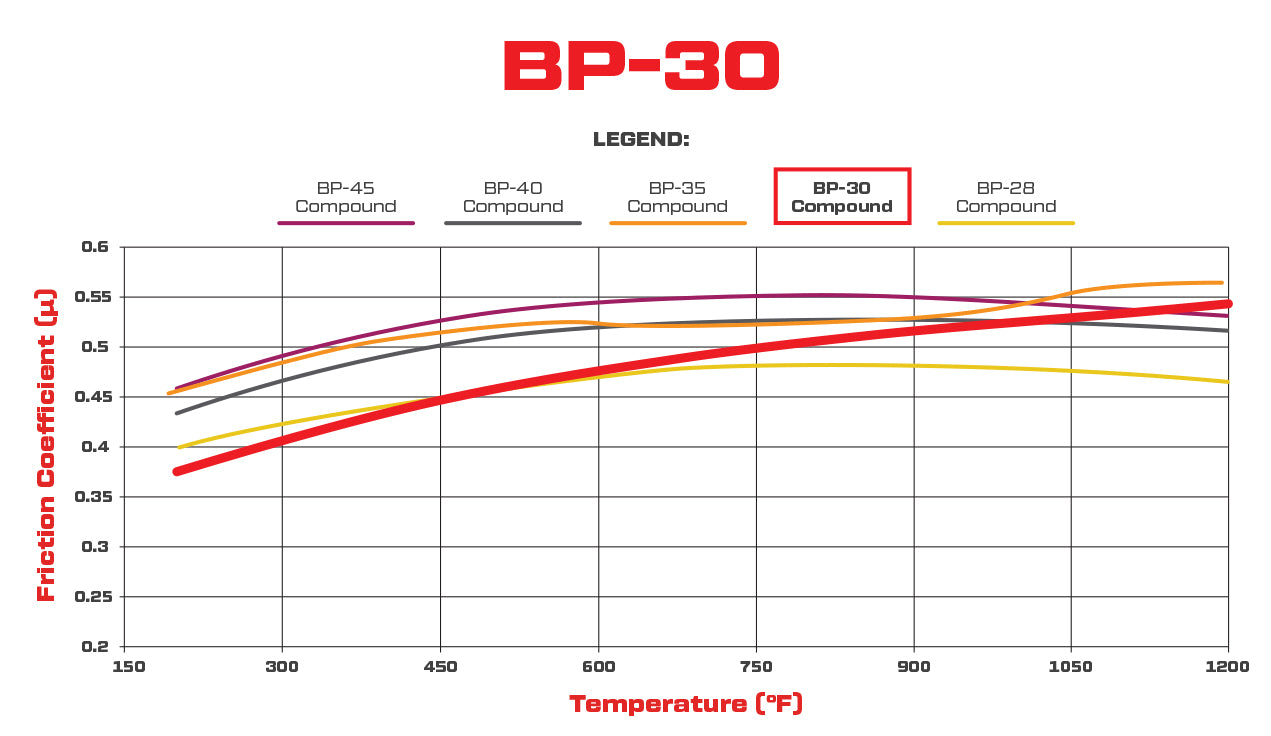

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.

Technical Details

• Manufacturer part number: 150-30-D0731K

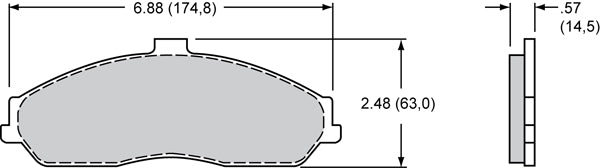

• Pad/shoe profile: D731
• Catalog pad volume: 4.1 cubic inches
• Package quantity: 4 individual pads
• Catalog thickness: .57 inch
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Compound: BP-30

Fitment & Compatibility

Check each Corvette generation and trim in the fitment table below: C5 and Z06 entries cover 1997–2004, while the later C6 entries are Base models through 2013. Cadillac XLR coverage is 2004–2009. D731 is the front shape; the rear D732 column identifies a different set.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
