Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-30 brake pads in the .60-inch Narrow Dynalite/Dynapro Radial configuration supply four replacement pads. Every component must suit the complete brake system in which it operates.
Technical Details
- Manufacturer part number: 150-30-7816K

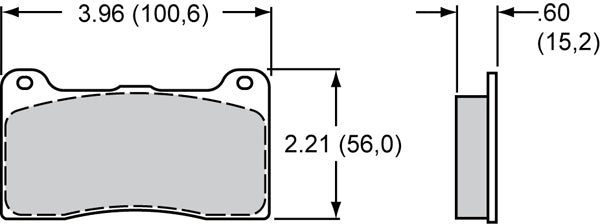

- Pad/shoe profile: 7816
- Package quantity: 4 individual pads
- Compound: BP-30
- Catalog thickness: .60 inch
- Catalog pad area: 6.36 square inches
- Catalog pad volume: 3 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Narrow Dynalite; Narrow Dynalite Radial Mount; Cast Narrow Dynalite; Dynapro 4 Piston Radial Mount-Dust Seal; Dynapro 4 Piston Radial Mount; Dynapro-ST 4 Piston Radial Mount; Forged Narrow Dynalite; Narrow Dynapro Lug Mount

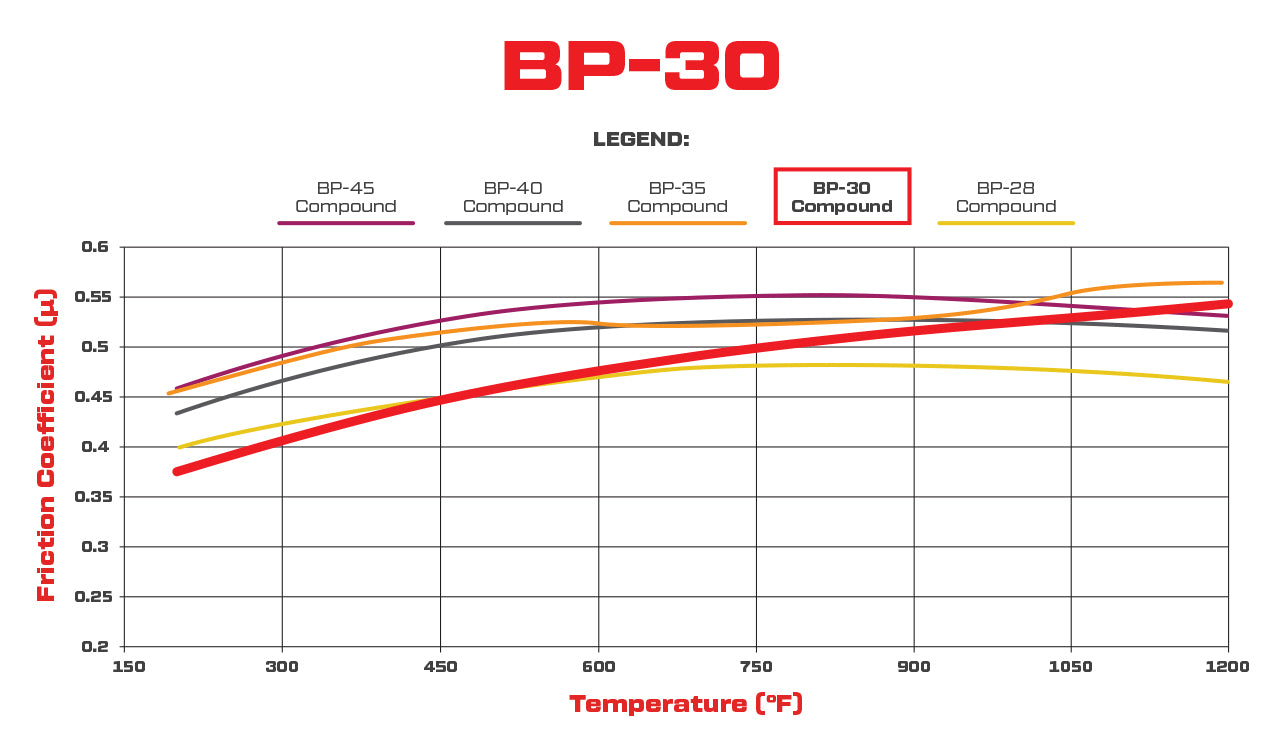

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
The 0.60-inch version is listed for narrow Dynalite and the specified radial-mount or narrow-lug Dynapro calipers. Compare caliper generation, retention and rotor width with the installed assembly.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
