Product details
Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. BP-30 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.

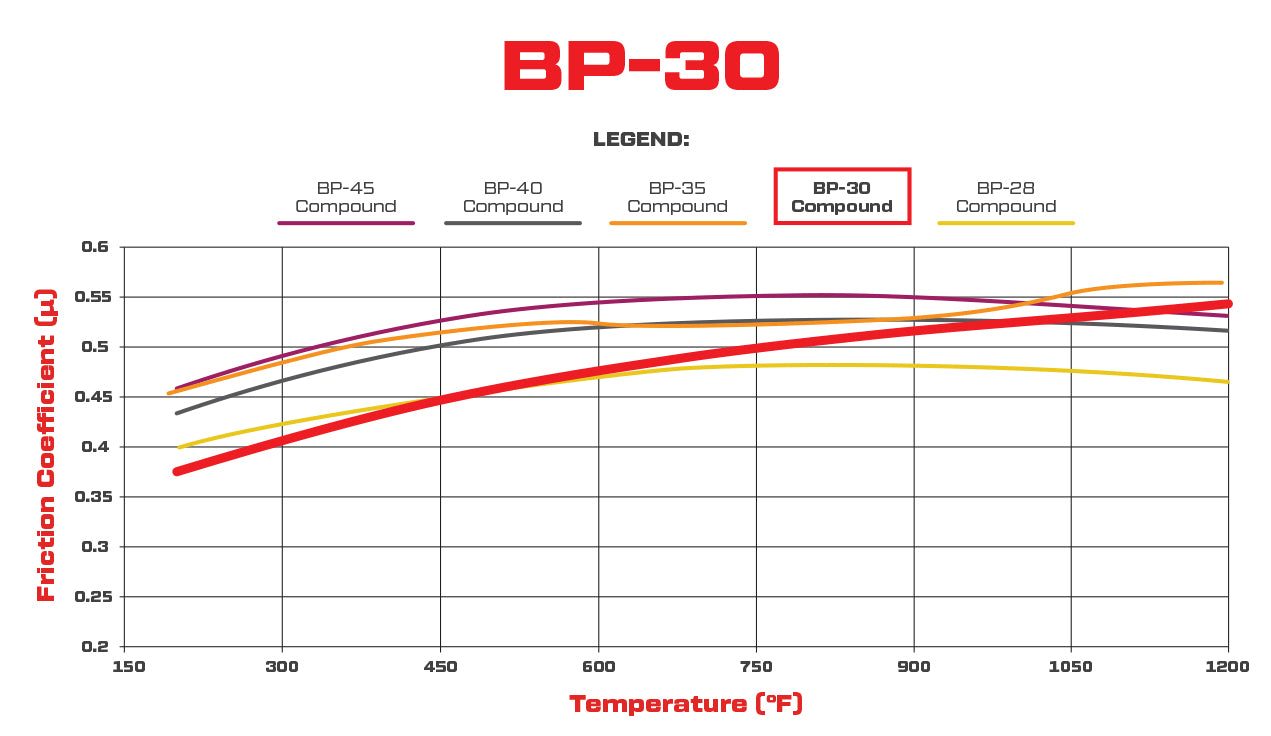

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Technical Details
- Manufacturer part number: 150-30-7812K

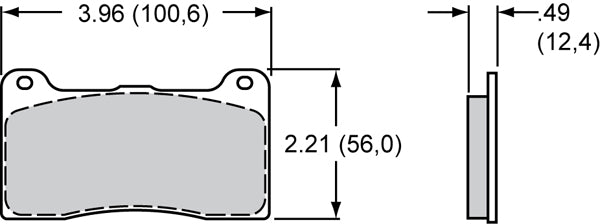

- Pad/shoe profile: 7812
- Catalog thickness: .49 inch
- Catalog pad area: 6.36 square inches
- Catalog pad volume: 2.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6
- Package quantity: 4 individual pads
- Compound: BP-30
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
