Product details
The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-30 brake pads in the .80-inch Grand National/AV6R configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.

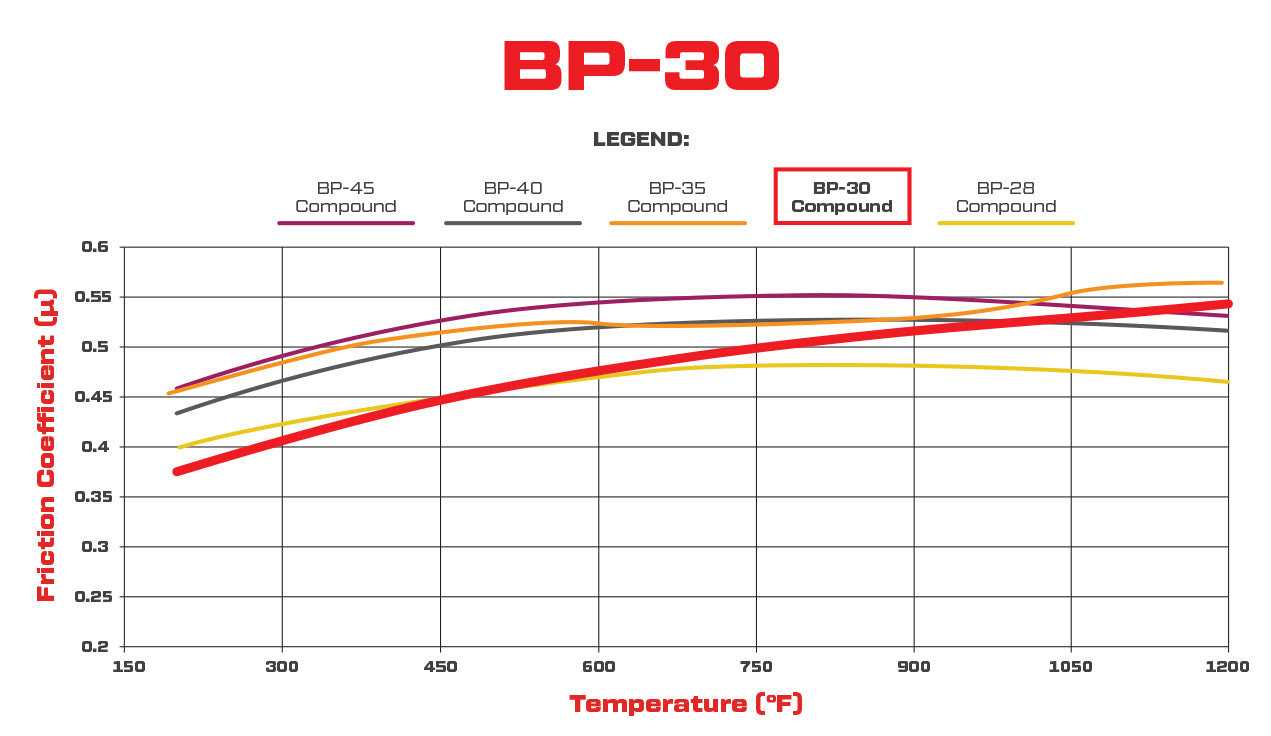

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Technical Details
- Manufacturer part number: 150-30-7520K
- Pad/shoe profile: 7520
- Catalog thickness: .80 inch
- Catalog pad area: 11.1 square inches
- Catalog pad volume: 6.9 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: AV6R Radial Mount; Grand National GN4R; Grand National GN6R; Grand National
- Package quantity: 4 individual pads
- Compound: BP-30
Fitment & Compatibility

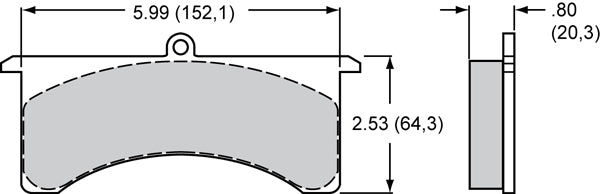

The Grand National GN4R/GN6R and AV6R radial-mount listings use this 0.80-inch configuration. Legacy GN III names can cover more than one pad thickness; compare the drawing and caliper cavity.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
