Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-30 brake pads in the .80-inch Wide Superlite configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.
Technical Details
- Manufacturer part number: 150-30-7420K
- Pad/shoe profile: 7420
- Compound: BP-30
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads

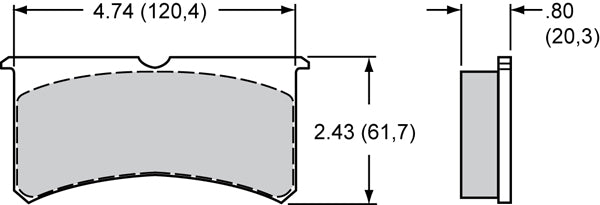

- Catalog thickness: .80 inch
- Catalog pad volume: 4.9 cubic inches
- Listed Wilwood calipers: Billet Superlite 4 Lug Mount; Billet Superlite 4R Radial Mount; Billet Superlite 6 Lug Mount; Billet Superlite 6R Radial Mount; Forged Superlite; Forged Superlite 4R Radial Mount; Forged Superlite 6R Radial Mount; Forged Superlite Internal

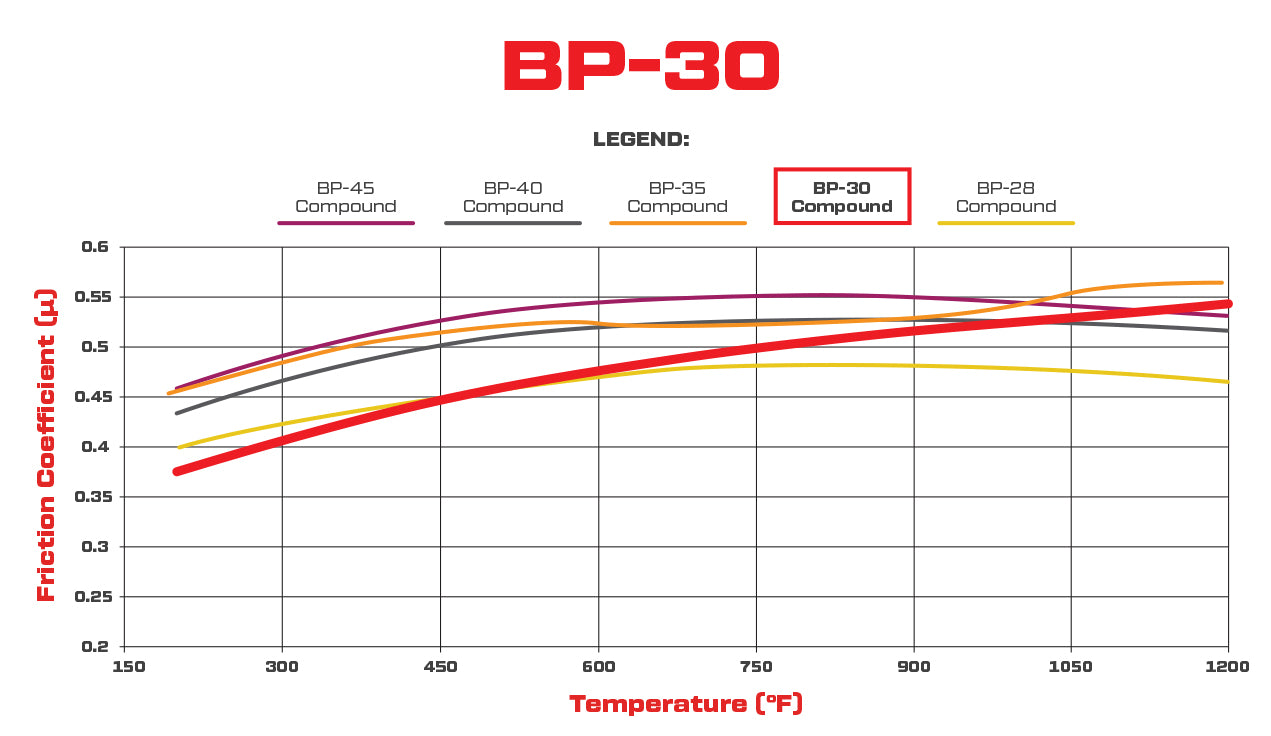

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
Use this 0.80-inch configuration in the listed billet or forged Superlite calipers. Verify the wide pad cavity and rotor combination; the narrower FNSL selection has a different thickness.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
