Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-30 brake pads in the .49-inch Forged/Billet Dynalite configuration supply four replacement pads. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-30-7112K
- Pad/shoe profile: 7112
- Compound: BP-30
- Catalog pad area: 6.36 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .49 inch
- Catalog pad volume: 2.1 cubic inches
- Listed Wilwood calipers: Forged Dynalite; Forged Dynalite Internal; Forged Dynalite Internal-Dust Seal; Forged Dynalite-M; Billet Dynalite

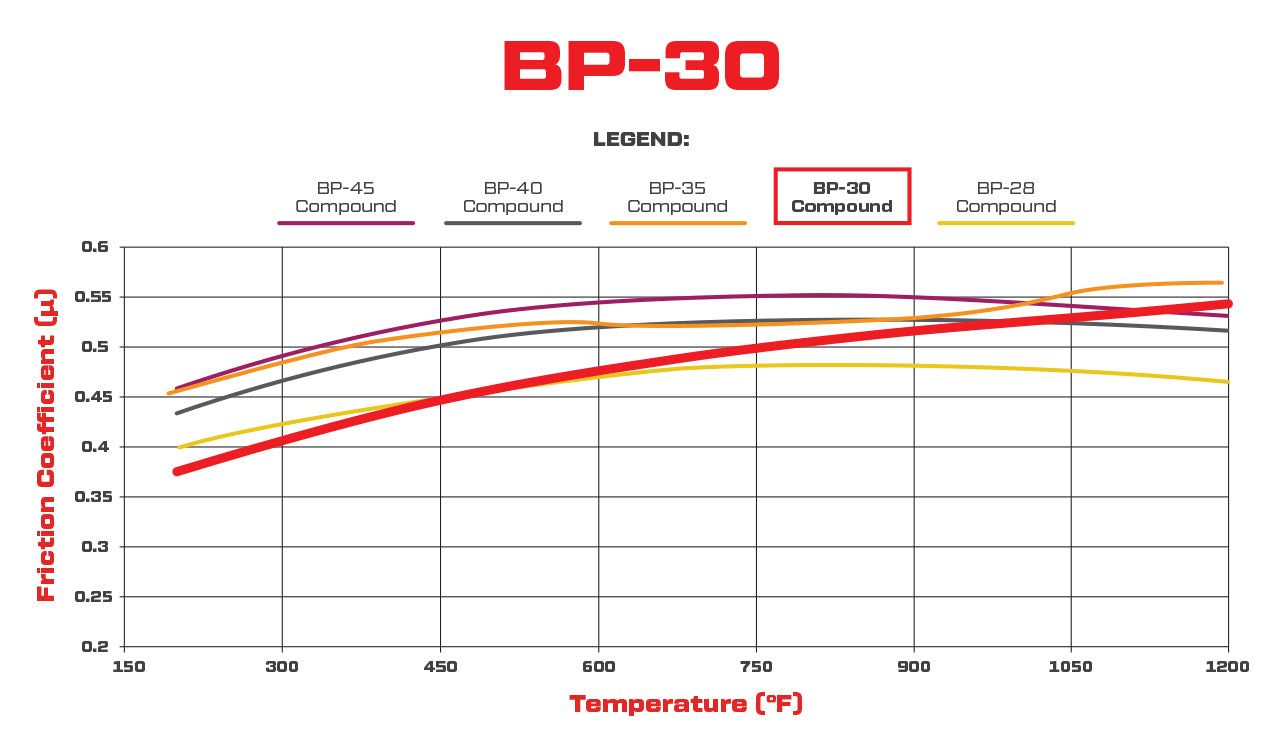

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
This outline suits the specified forged and billet Dynalite calipers, including the internal and -M versions listed here. Check the actual retention arrangement rather than assuming all Dynalite generations interchange.
Manufacturer Reference

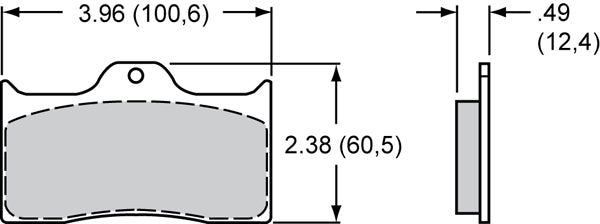

Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
