Product details
The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-30 brake pads in the .49-inch Dynalite Single/Dynapro Single configuration supply four replacement pads. Each component must be chosen for its role within the complete braking system.

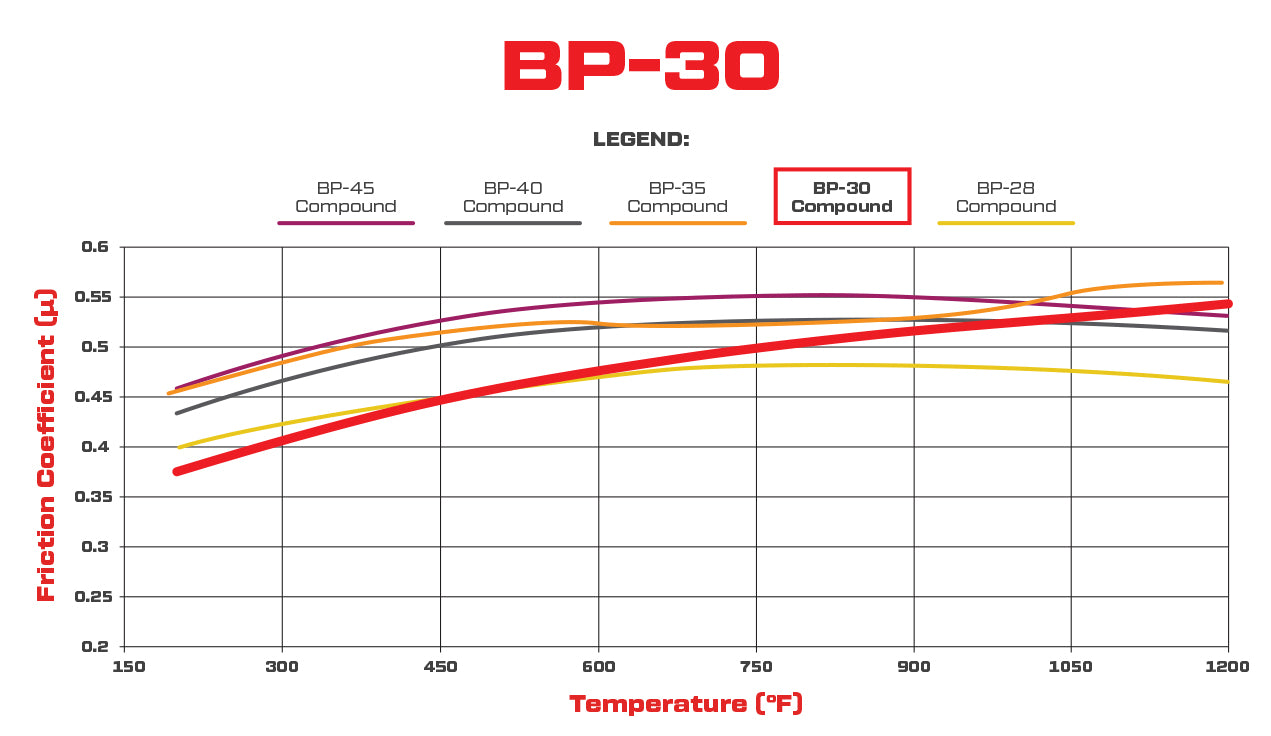

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Technical Details
- Manufacturer part number: 150-30-6812K
- Pad/shoe profile: 6812
- Compound: BP-30
- Catalog pad area: 3 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .49 inch
- Catalog pad volume: 1.1 cubic inches
- Listed Wilwood calipers: Dynalite Single; Dynalite Single III; Dynalite Single Floater; Dynapro Single
Fitment & Compatibility
Listed calipers include Dynalite Single, Single III, Single Floater and Dynapro Single. Compare the distinctive three-hole outline with the installed pad; a full-size Dynalite pad is a different shape.

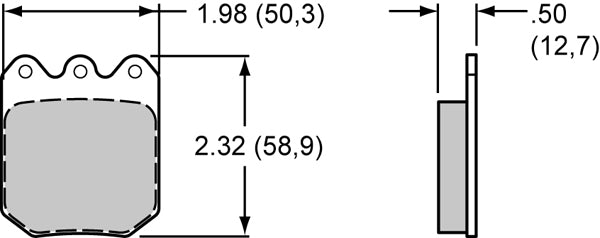

The general outline drawing marks .50 inch, while the exact part specification lists .49 inch. Confirm the actual caliper clearance rather than treating the illustration as a precision tolerance drawing.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
