Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-30 brake pads in the .49-inch Dynapro 6/6A Lug-Mount configuration supply four replacement pads. Select individual components to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-30-6712K
- Pad/shoe profile: 6712
- Compound: BP-30
- Package quantity: 4 individual pads
- Listed Wilwood calipers: Dynapro 6 Piston Lug Mount; Forged Dynapro 6A Lug Mount
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.

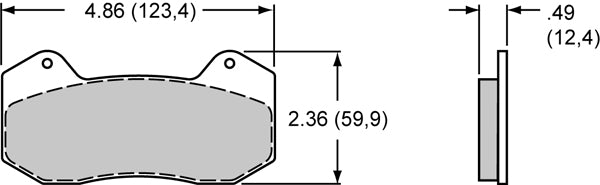

- Catalog pad volume: 2.4 cubic inches
- Catalog pad area: 7.3 square inches
- Catalog thickness: .49 inch

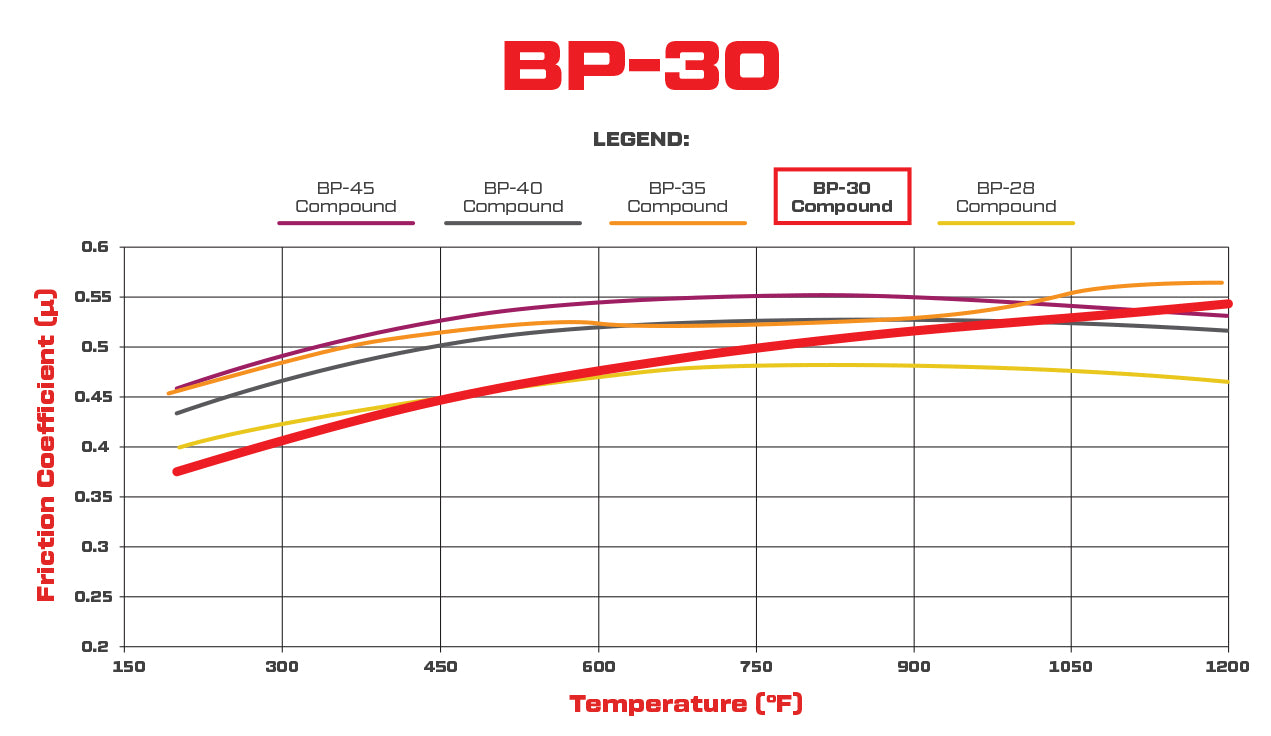

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
This profile serves the Dynapro six-piston lug-mount and Forged Dynapro 6A lug-mount calipers. It is not a general fit for every Dynapro; retaining geometry and overall thickness must agree.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
