Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-30 brake pads in the .80-inch AERO4/AERO6 configuration supply four replacement pads. Each part must be selected to work with the complete brake system and its requirements.
Technical Details
- Manufacturer part number: 150-30-6620K

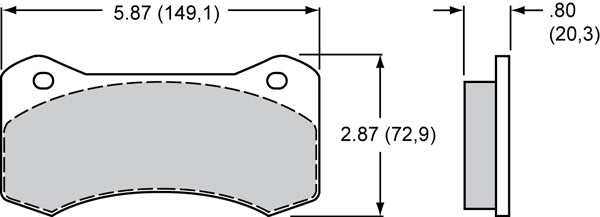

- Pad/shoe profile: 6620
- Package quantity: 4 individual pads
- Compound: BP-30
- Catalog thickness: .80 inch
- Catalog pad area: 11.1 square inches
- Catalog pad volume: 6.6 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Aero4; Aero6

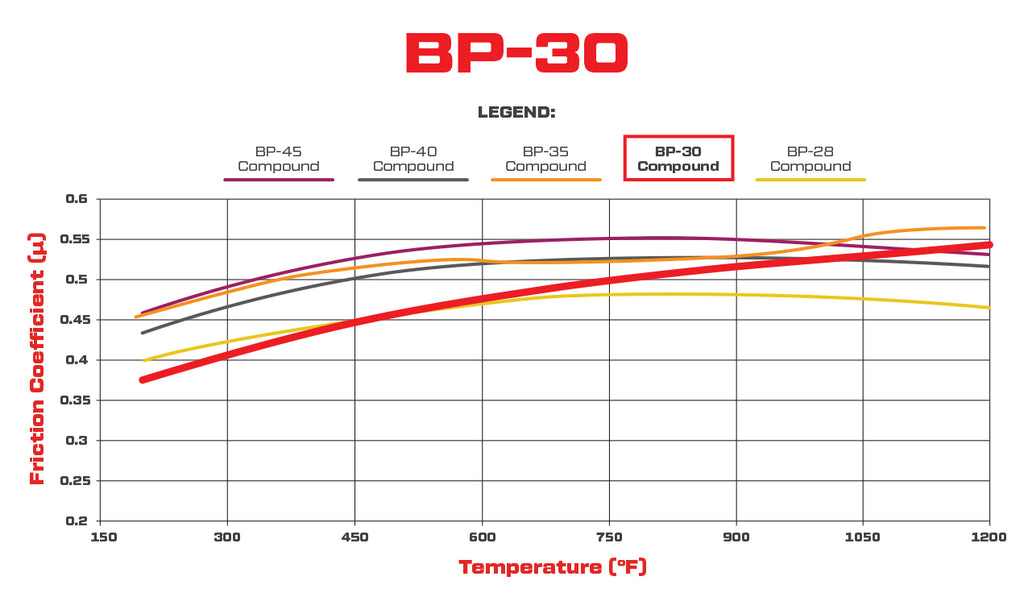

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
The current compatibility list identifies AERO4 and AERO6 calipers for this 0.80-inch version. Check rotor width and caliper pad capacity before replacing a thinner AERO pad.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
