Product details
Wilwood Engineering was founded by Bill Wood in 1977 in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized applications. BP-30 brake pads in the .67-inch AERO4/AERO6 and W4A/W6A configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 150-30-6617K
- Pad/shoe profile: 6617
- Compound: BP-30
- Catalog pad area: 11.1 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads

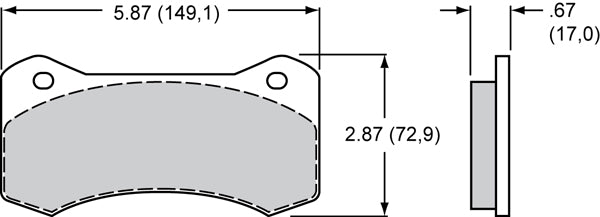

- Catalog thickness: .67 inch
- Catalog pad volume: 5.2 cubic inches
- Listed Wilwood calipers: Aero4; Aero4-Dust Seal; Aero6; Aero6-Dust Seal; Aero6-DM; W4A; W6A

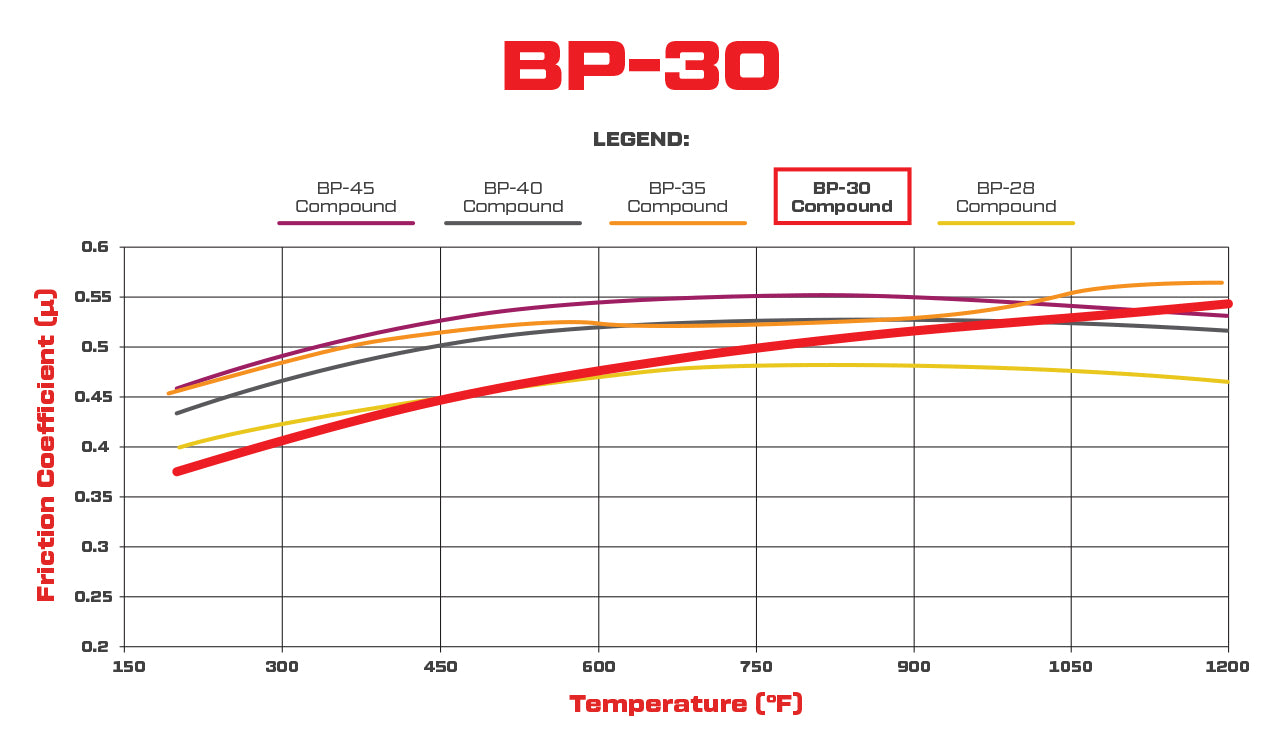

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.
Fitment & Compatibility
Use the 0.67-inch pad only in the listed AERO4, AERO6 and W-series configurations. The thicker 0.80-inch AERO option is a separate selection, even where the pad face appears similar.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
