Wilwood WLD-20 Caliper Pads, BP-30 Race, Four Pieces

The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-30 brake pads in the .55-inch WLD-20 configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.

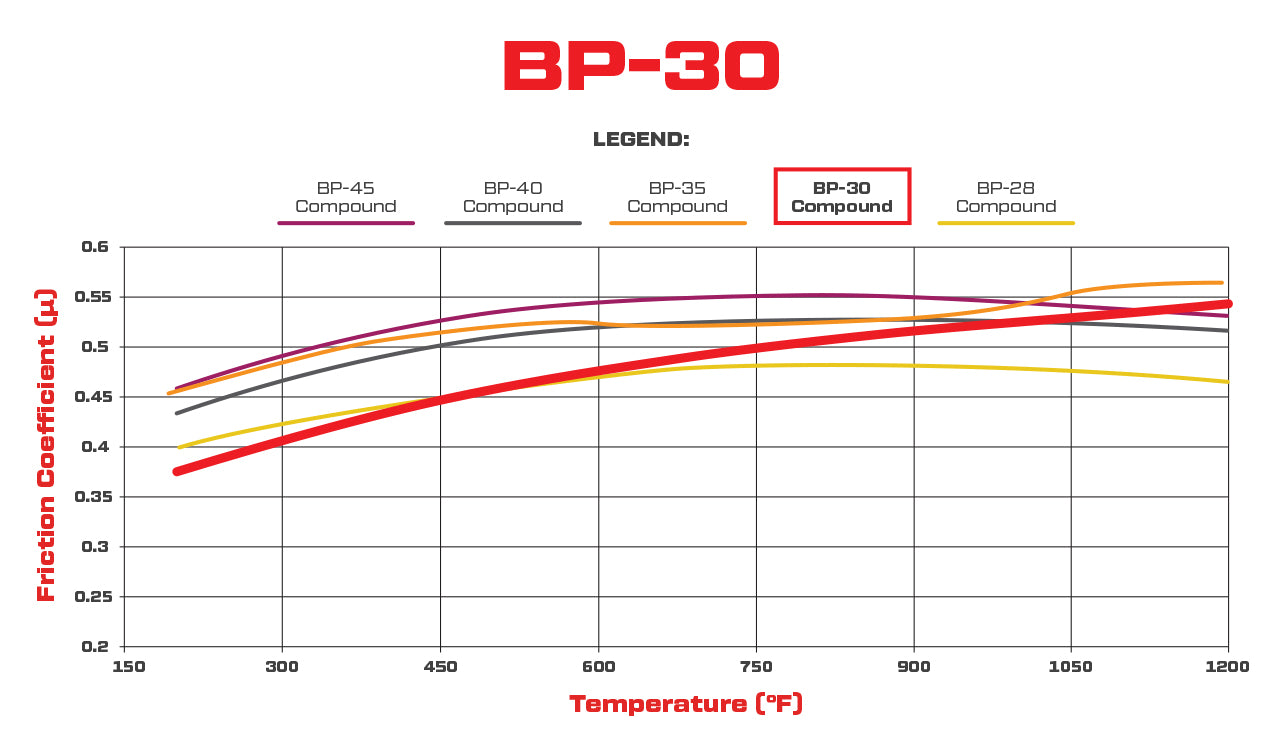

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.

Technical Details

• Manufacturer part number: 150-30-5214K
• Pad/shoe profile: 5214
• Listed Wilwood calipers: WLD-20
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Catalog pad volume: 2.62 cubic inches
• Catalog pad area: 4.76 square inches
• Catalog thickness: .55 inch
• Compound: BP-30
• Package quantity: 4 individual pads

Fitment & Compatibility

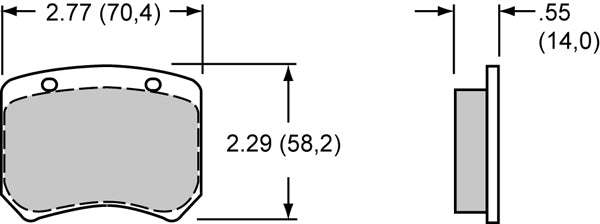

For Wilwood WLD-20 calipers, use the 0.55-inch pad configuration shown in the drawing. Confirm the caliper identity; the WLD-19 takes a separate outline and thickness.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
