Wilwood Race Brake Pads for XRZ Radial Mount, BP-30

Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-30 brake pads in the .80-inch XRZ4R configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.

Technical Details

• Manufacturer part number: 150-30-10420K

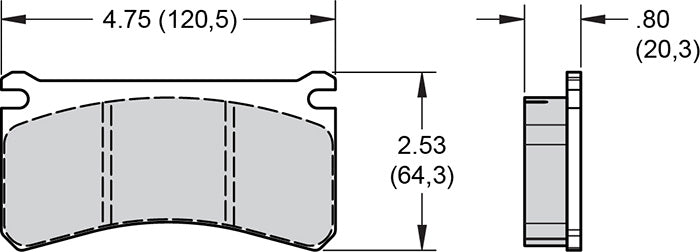

• Pad/shoe profile: 10420
• Compound: BP-30
• Catalog pad area: 8.2 square inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads
• Catalog thickness: .80 inch
• Catalog pad volume: 4.9 cubic inches
• Listed Wilwood calipers: XRZ4R Radial Mount

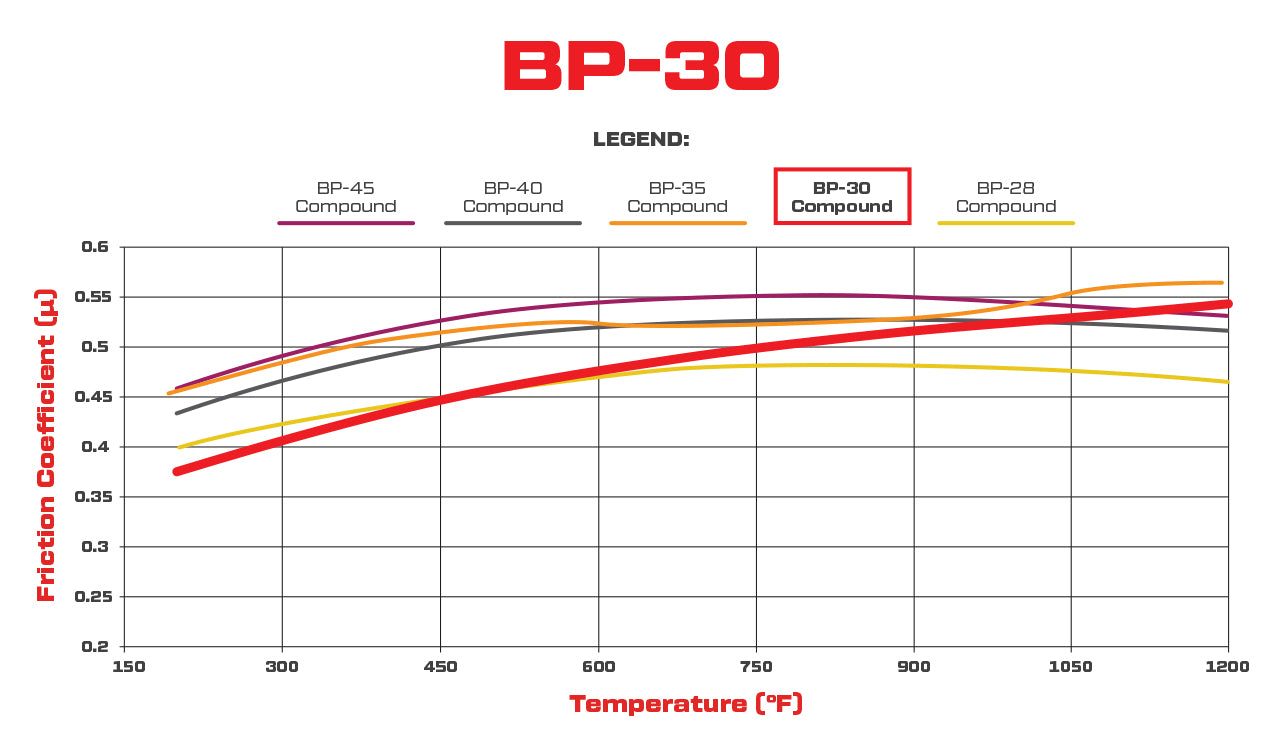

For sustained heat in competition, BP-30 combines high friction with an initial response that builds as rotor temperature rises. It gives a more restrained response when cold and a linear progression under load. Wilwood specifies iron or steel rotors and racing use only; this compound is not for street driving.

Fitment & Compatibility

Select this 0.80-inch pad for the XRZ4R radial-mount caliper. It is thicker than the 0.65-inch XRS version; verify the available pad space and rotor specification.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
