Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-28 brake pads in the .60-inch Narrow Dynalite/Dynapro Radial configuration supply four replacement pads. Each component must be chosen for its role within the complete braking system.
Technical Details
- Manufacturer part number: 150-28-7816K

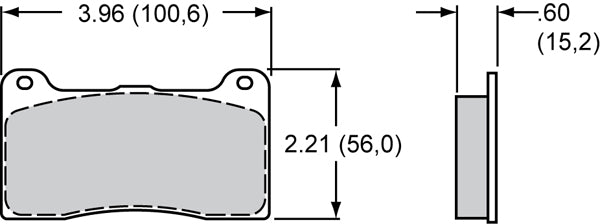

- Pad/shoe profile: 7816
- Catalog pad area: 6.36 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .60 inch
- Catalog pad volume: 3 cubic inches
- Listed Wilwood calipers: Narrow Dynalite; Narrow Dynalite Radial Mount; Cast Narrow Dynalite; Dynapro 4 Piston Radial Mount-Dust Seal; Dynapro 4 Piston Radial Mount; Dynapro-ST 4 Piston Radial Mount; Forged Narrow Dynalite; Narrow Dynapro Lug Mount
- Compound: BP-28

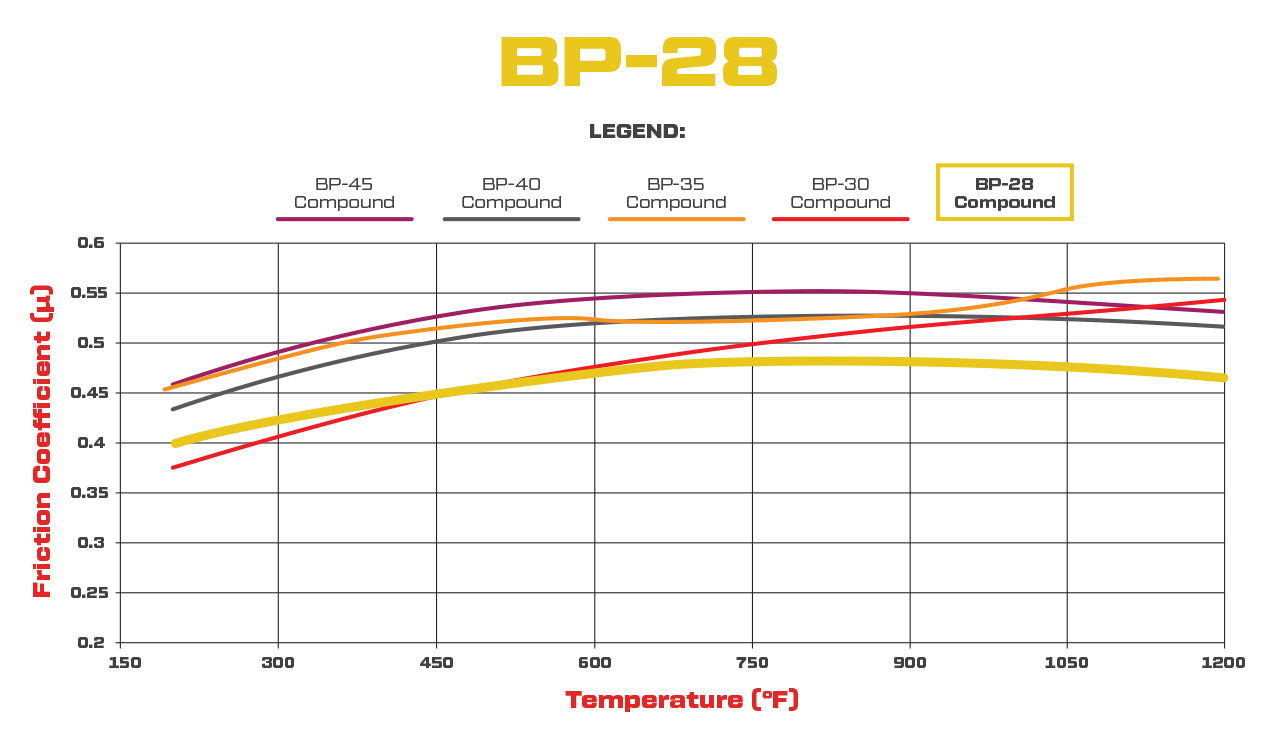

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.
Fitment & Compatibility
The 0.60-inch version is listed for narrow Dynalite and the specified radial-mount or narrow-lug Dynapro calipers. Compare caliper generation, retention and rotor width with the installed assembly.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
