Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-28 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads. Select individual components to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-28-7812K
- Pad/shoe profile: 7812
- Package quantity: 4 individual pads
- Compound: BP-28

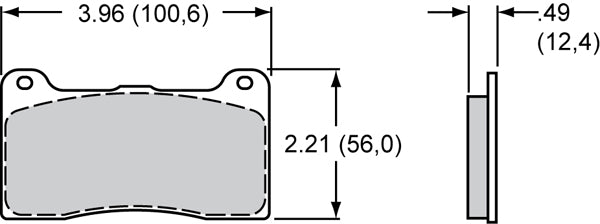

- Catalog thickness: .49 inch
- Catalog pad area: 6.36 square inches
- Catalog pad volume: 2.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6

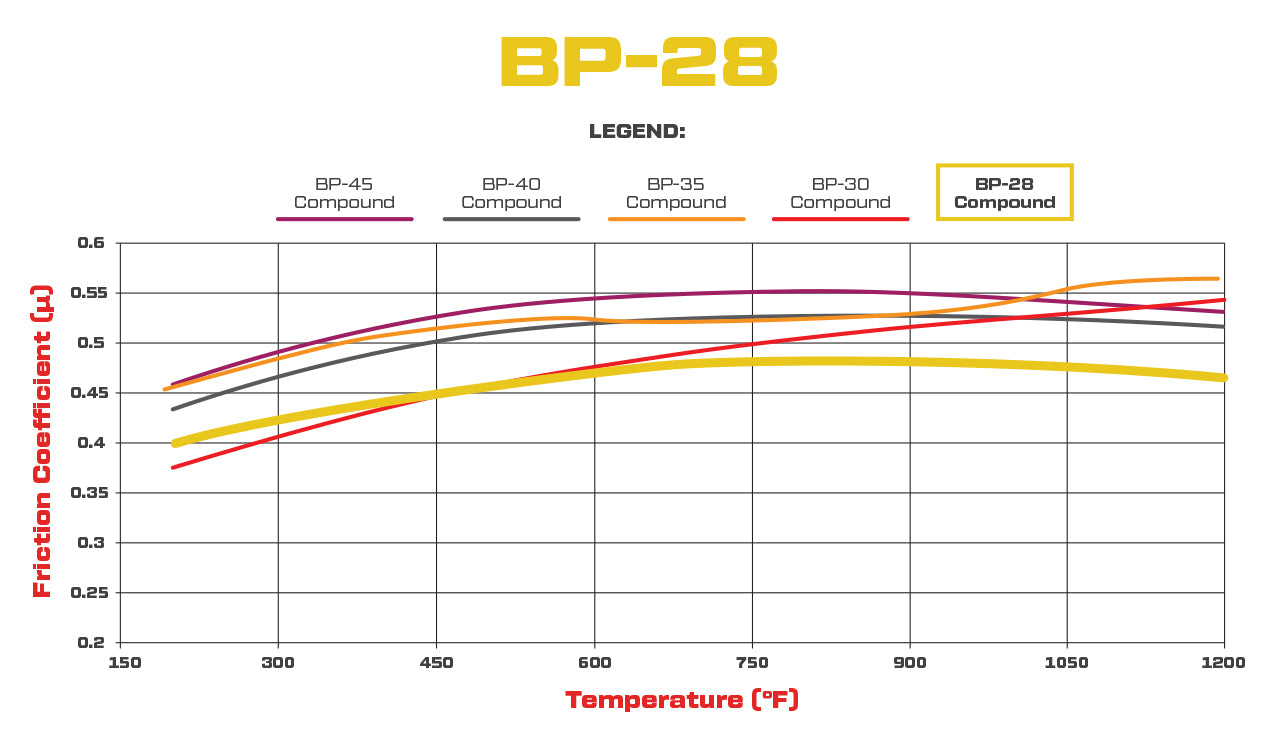

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
