Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-28 brake pads in the .65-inch AT6 Lug-Mount configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 150-28-7516K

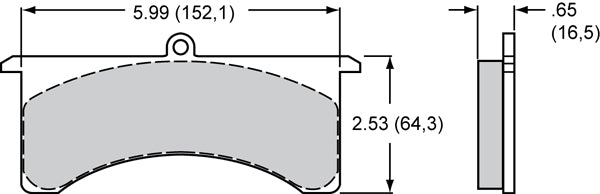

- Pad/shoe profile: 7516
- Catalog thickness: .65 inch
- Catalog pad area: 11.31 square inches
- Catalog pad volume: 5 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: AT6 Lug Mount
- Package quantity: 4 individual pads
- Compound: BP-28

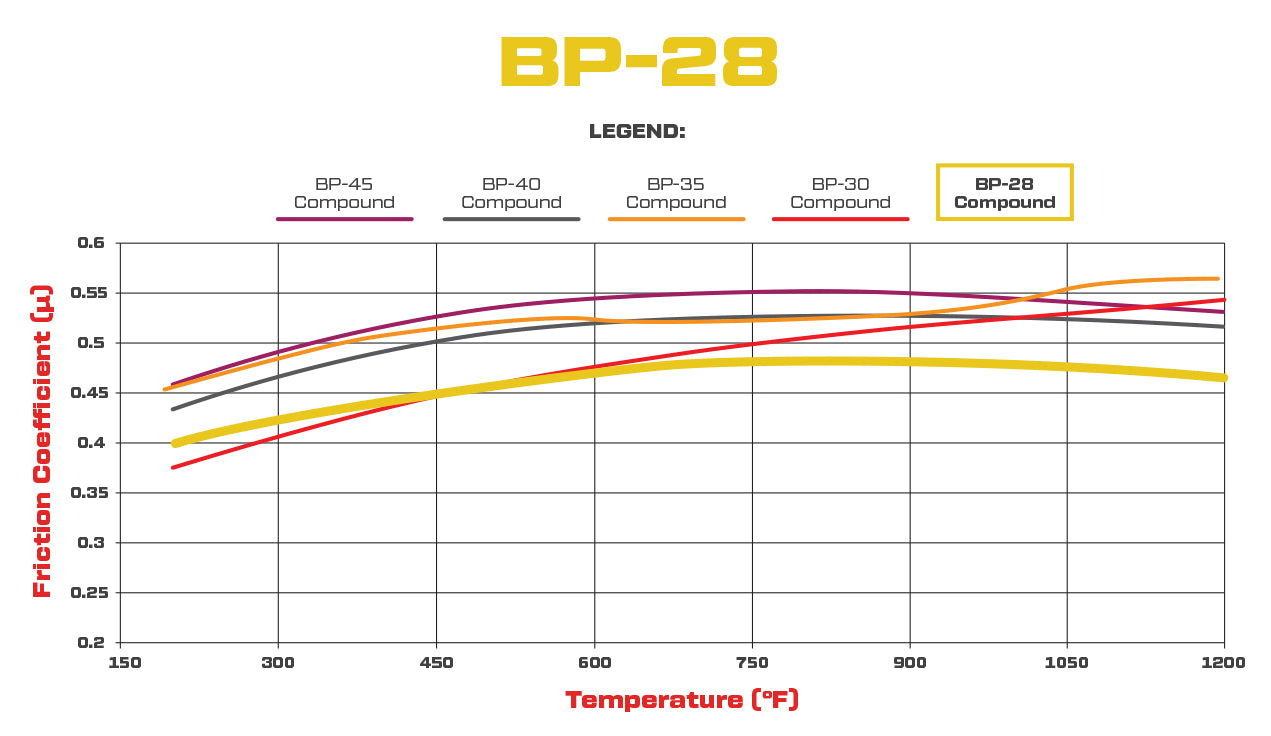

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.
Fitment & Compatibility
For the listed AT6 lug-mount caliper using the 0.65-inch pad. Match the pad-retention geometry and rotor width to the exact AT6 assembly before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
