Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-28 brake pads in the .65-inch Narrow Superlite/FNSL configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 150-28-7416K
- Pad/shoe profile: 7416
- Compound: BP-28
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads

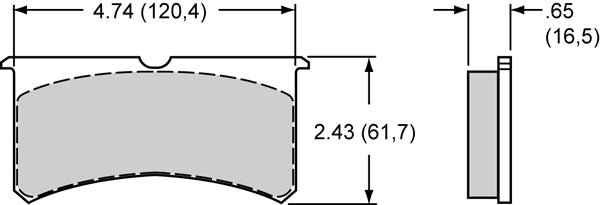

- Catalog thickness: .65 inch
- Catalog pad volume: 3.8 cubic inches
- Listed Wilwood calipers: Billet Narrow Superlite 4R Radial Mount; Billet Narrow Superlite 6 Lug Mount; Billet Narrow Superlite 6R Radial Mount; Forged Superlite; FNSL4R-Dust Seal; FNSL4R; FNSL6R-Dust Seal; FNSL6R; SLC56

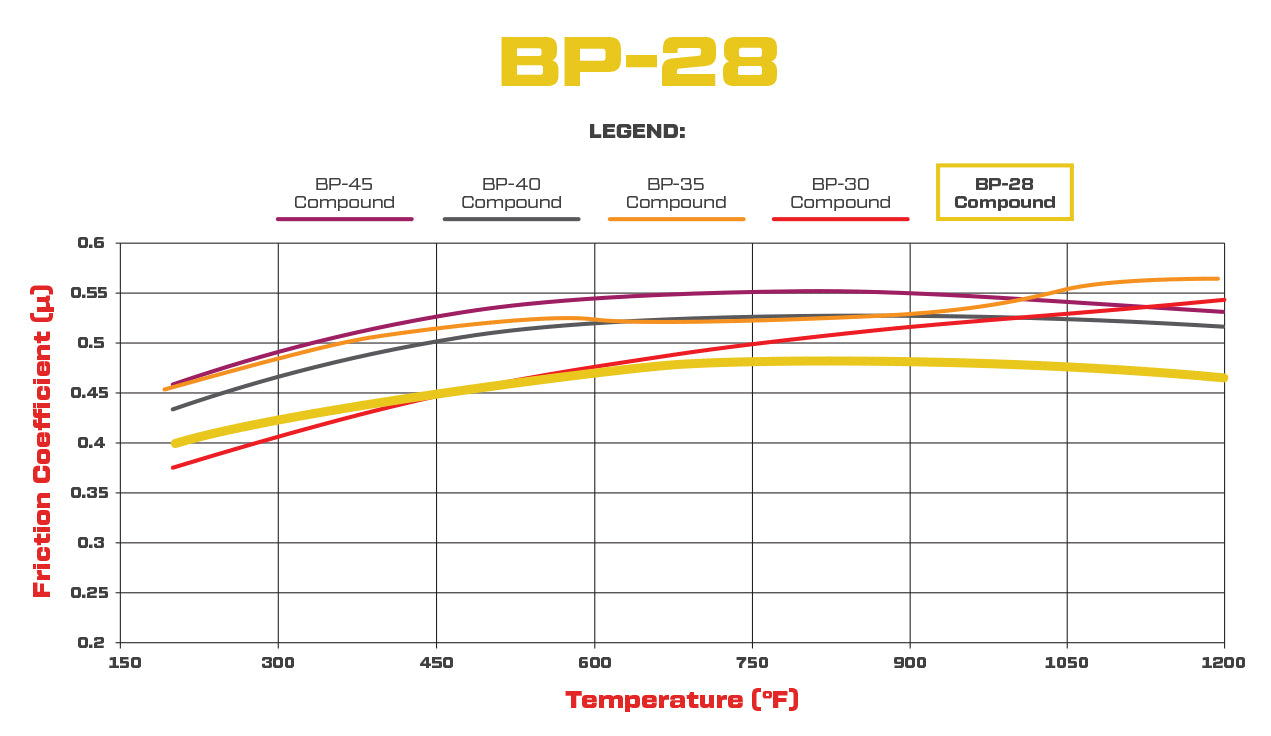

A narrow Superlite pad cavity requires the .65-inch version supplied here. The BP-28 formulation is used in dirt, off-road, drag and lighter road-course competition. Its response is not identical across rotor materials: hot titanium/stainless systems develop medium-high friction, while iron/steel applications at lower temperatures have a medium-friction response.
Fitment & Compatibility
Narrow Superlite and the listed FNSL/SLC56 configurations use this 0.65-inch selection. It should not be replaced with the 0.80-inch wide-Superlite version solely on appearance.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
