Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-28 brake pads in the .49-inch Dynapro 6/6A Lug-Mount configuration supply four replacement pads. Choose each component to match the complete system’s braking requirements.
Technical Details
- Manufacturer part number: 150-28-6712K

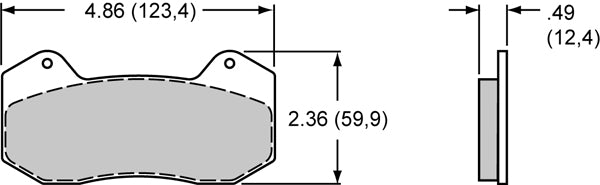

- Pad/shoe profile: 6712
- Listed Wilwood calipers: Dynapro 6 Piston Lug Mount; Forged Dynapro 6A Lug Mount
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Catalog pad volume: 2.4 cubic inches
- Catalog pad area: 7.3 square inches
- Catalog thickness: .49 inch
- Compound: BP-28
- Package quantity: 4 individual pads

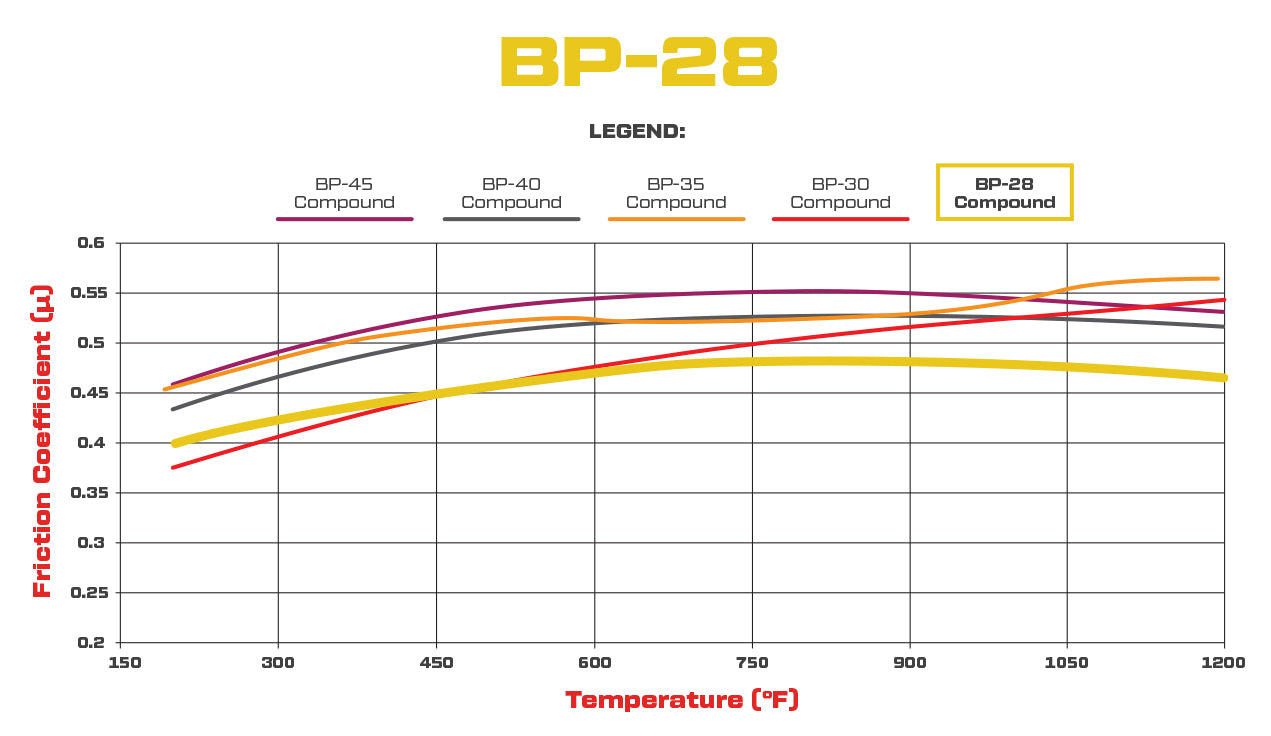

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.
Fitment & Compatibility
This profile serves the Dynapro six-piston lug-mount and Forged Dynapro 6A lug-mount calipers. It is not a general fit for every Dynapro; retaining geometry and overall thickness must agree.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
