Wilwood AERO4/AERO6 BP-28 Pad Set, .80-Inch Thick

From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-28 brake pads in the .80-inch AERO4/AERO6 configuration supply four replacement pads. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-28-6620K
• Pad/shoe profile: 6620
• Catalog pad area: 11.1 square inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads

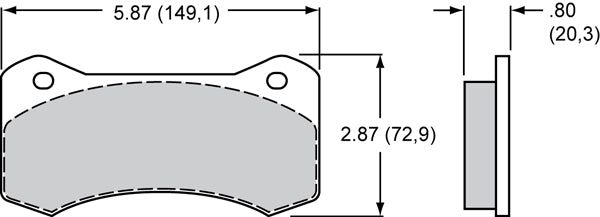

• Catalog thickness: .80 inch
• Catalog pad volume: 6.6 cubic inches
• Listed Wilwood calipers: Aero4; Aero6
• Compound: BP-28

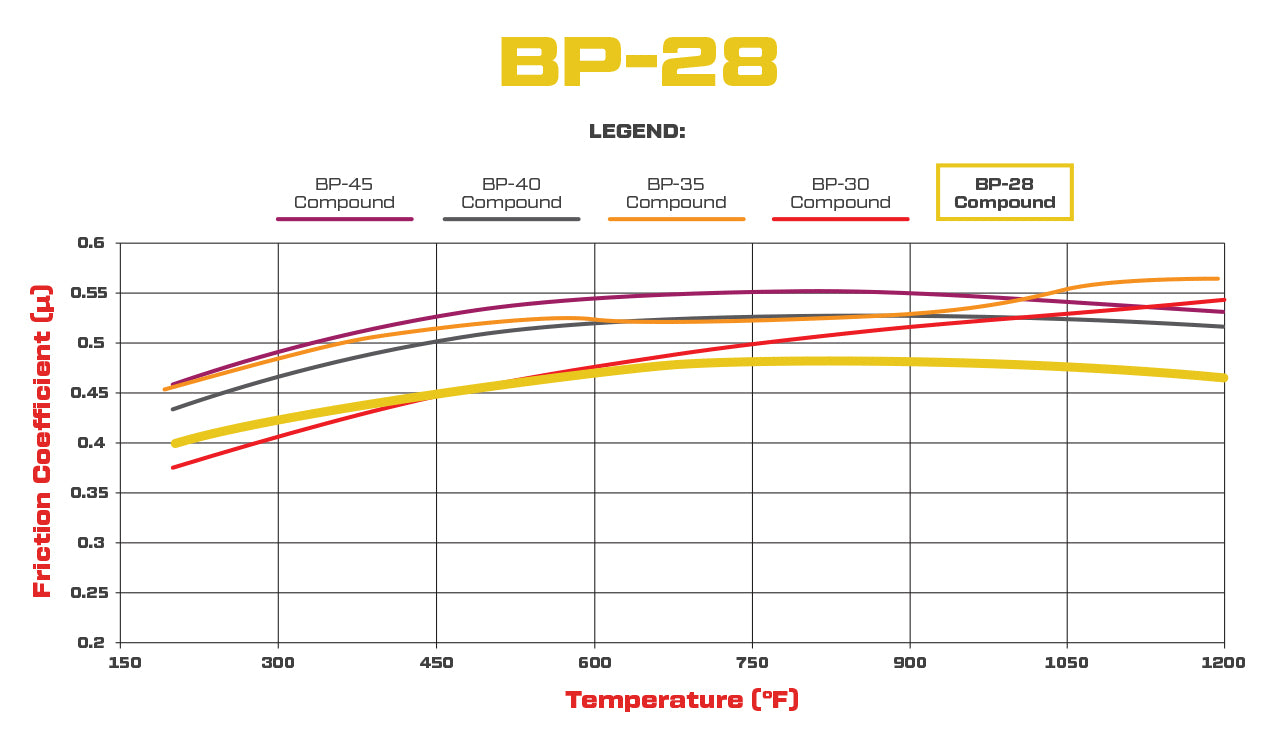

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.

Fitment & Compatibility

The current compatibility list identifies AERO4 and AERO6 calipers for this 0.80-inch version. Check rotor width and caliper pad capacity before replacing a thinner AERO pad.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
