Wilwood XRZ4R Brake Pads, Four-Pad BP-28 Set

Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-28 brake pads in the .80-inch XRZ4R configuration supply four replacement pads. The complete braking arrangement determines which individual components are appropriate.

Technical Details

• Manufacturer part number: 150-28-10420K

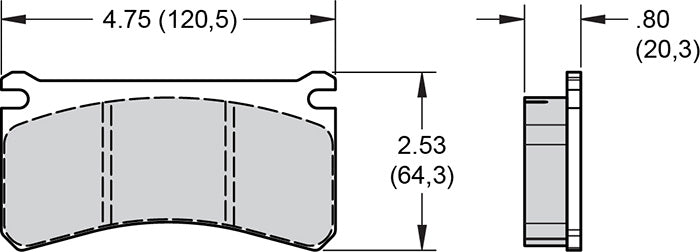

• Pad/shoe profile: 10420
• Compound: BP-28
• Catalog pad area: 8.2 square inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads
• Catalog thickness: .80 inch
• Catalog pad volume: 4.9 cubic inches
• Listed Wilwood calipers: XRZ4R Radial Mount

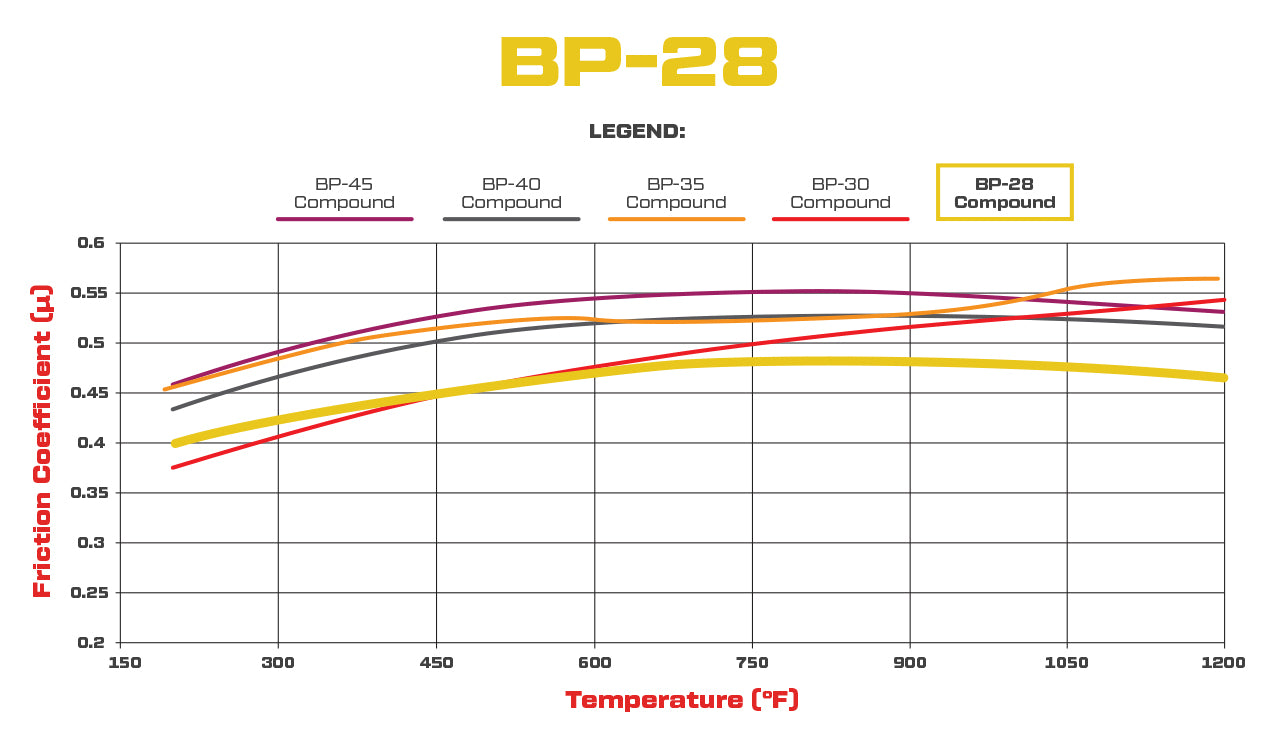

BP-28 changes its friction behavior with rotor material and temperature: Wilwood describes medium-high friction on hot titanium or stainless rotors and medium friction at lower-to-medium temperatures on steel or iron. Its competition uses include sprint/midget, dirt oval, lighter road-course cars, drag and off-road applications. Material choice also affects wear, particularly with titanium.

Fitment & Compatibility

Select this 0.80-inch pad for the XRZ4R radial-mount caliper. It is thicker than the 0.65-inch XRS version; verify the available pad space and rotor specification.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
