Product details
The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. BP-22 brake pads in the .49-inch Bridge-Bolt Dynalite/Dynapro configuration supply four replacement pads. Select the individual parts around the requirements of the entire braking system.

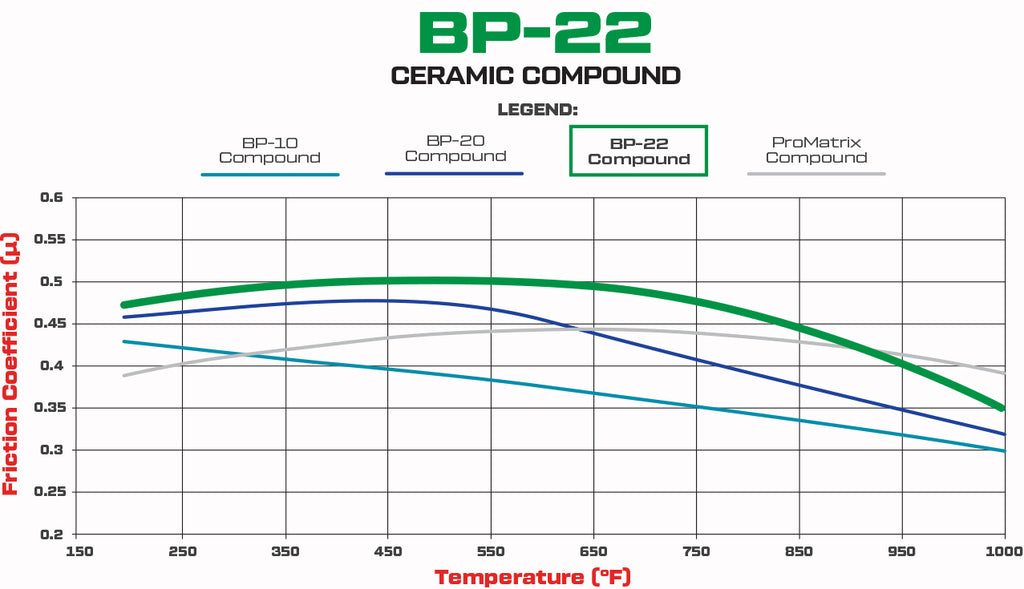

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Technical Details
- Manufacturer part number: 150-22-7812K
- Pad/shoe profile: 7812
- Compound: BP-22
- Package quantity: 4 individual pads
- Listed Wilwood calipers: Billet Dynalite; Dynapro Dust-Boot; Dynapro Lug Mount; Dynapro Narrow; Forged DPHA; Forged XRD Lug Mount; Narrow Dynapro 4 Piston Radial Mount; UTV4/6
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.

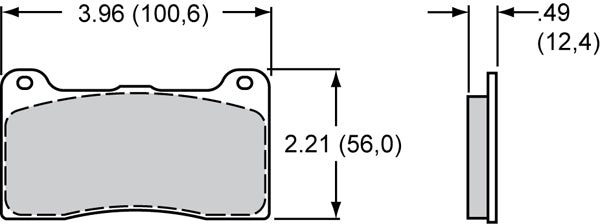

- Catalog pad volume: 2.1 cubic inches
- Catalog pad area: 6.36 square inches
- Catalog thickness: .49 inch
Fitment & Compatibility
The listed Dynapro, bridge-bolt Dynalite, Forged XRD and UTV4/6 configurations use this retaining outline. It differs from the cotter-pin Dynalite profile; inspect the pad tabs before ordering.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
