Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-22 brake pads in the .80-inch Wide Superlite configuration supply four replacement pads. Individual parts must match the complete brake system and its operating requirements.
Technical Details
- Manufacturer part number: 150-22-7420K
- Pad/shoe profile: 7420

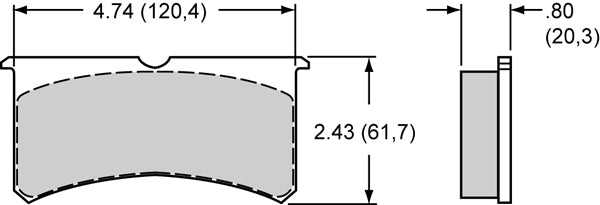

- Catalog thickness: .80 inch
- Catalog pad area: 8.2 square inches
- Catalog pad volume: 4.9 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Superlite 4 Lug Mount; Billet Superlite 4R Radial Mount; Billet Superlite 6 Lug Mount; Billet Superlite 6R Radial Mount; Forged Superlite; Forged Superlite 4R Radial Mount; Forged Superlite 6R Radial Mount; Forged Superlite Internal
- Package quantity: 4 individual pads
- Compound: BP-22

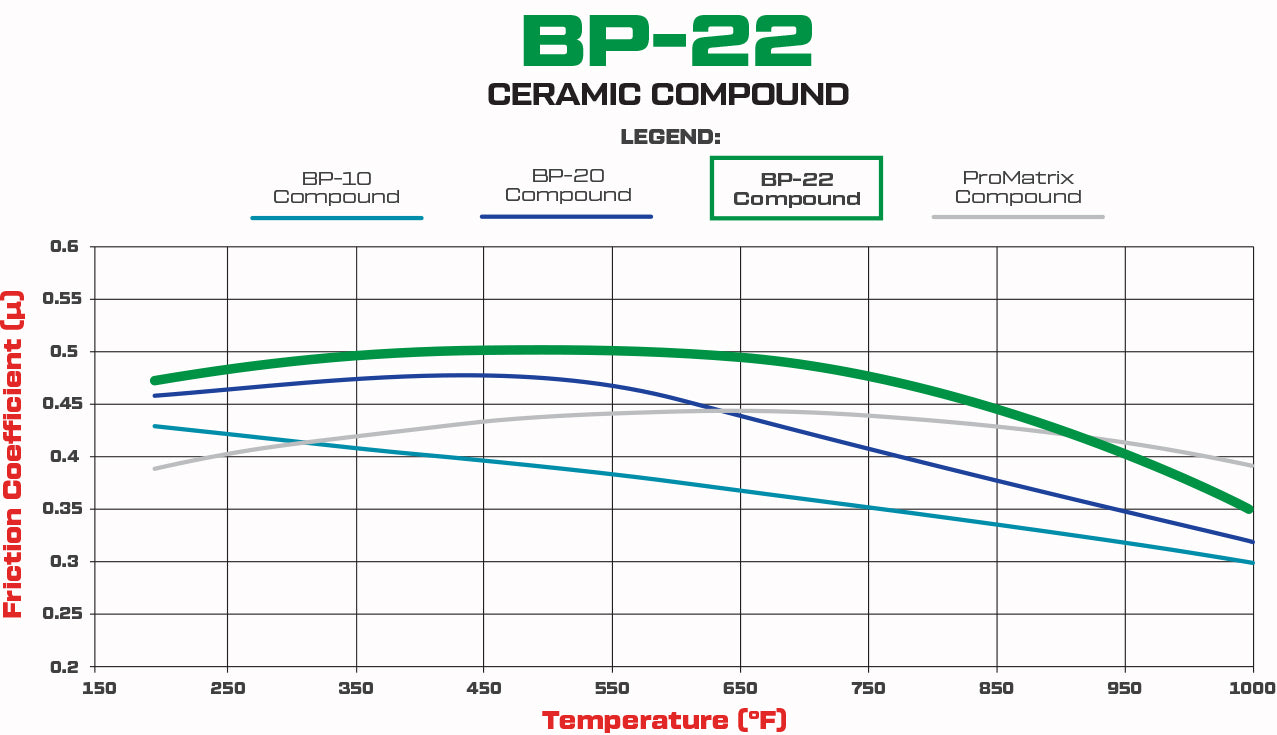

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
Use this 0.80-inch configuration in the listed billet or forged Superlite calipers. Verify the wide pad cavity and rotor combination; the narrower FNSL selection has a different thickness.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
With over 20 years of experience, PMB Performance can help check the pad outline, brake application and required compound before you order.
