Product details
Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-22 brake pads in the .65-inch Narrow Superlite/FNSL configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.
Technical Details
- Manufacturer part number: 150-22-7416K

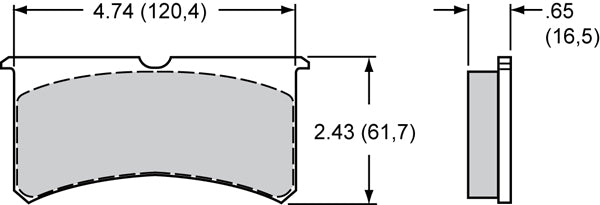

- Pad/shoe profile: 7416
- Catalog thickness: .65 inch
- Catalog pad area: 8.2 square inches
- Catalog pad volume: 3.8 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Billet Narrow Superlite 4R Radial Mount; Billet Narrow Superlite 6 Lug Mount; Billet Narrow Superlite 6R Radial Mount; Forged Superlite; FNSL4R-Dust Seal; FNSL4R; FNSL6R-Dust Seal; FNSL6R; SLC56
- Package quantity: 4 individual pads
- Compound: BP-22

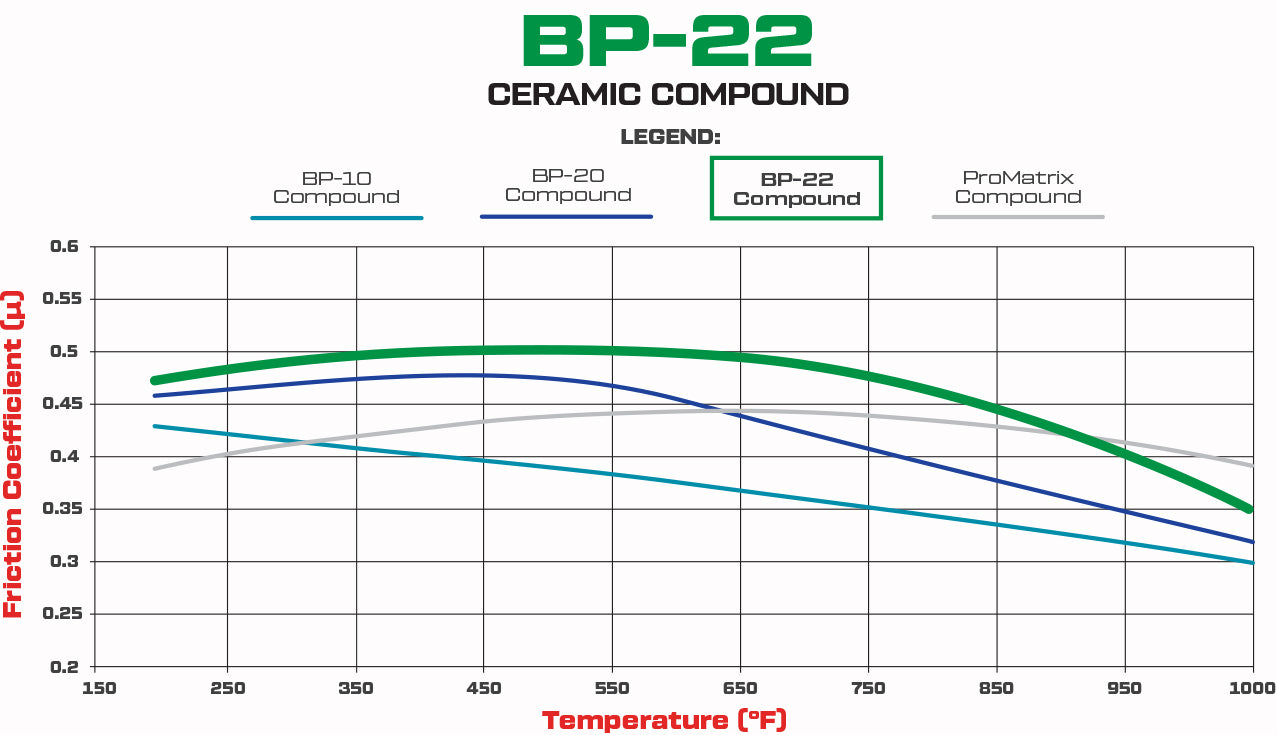

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
Narrow Superlite and the listed FNSL/SLC56 configurations use this 0.65-inch selection. It should not be replaced with the 0.80-inch wide-Superlite version solely on appearance.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
